Side Obstacle Detection Control Module (SODCM): Removal
WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.
Side obstacle detection control module
-
NOTE: This step is only necessary if the SODL or SODR is being replaced.
Using a diagnostic scan tool, begin the PMI process for the SODL or SODR following the on-screen instructions.
- Remove the rear bumper cover. Refer to: Rear Bumper Cover .

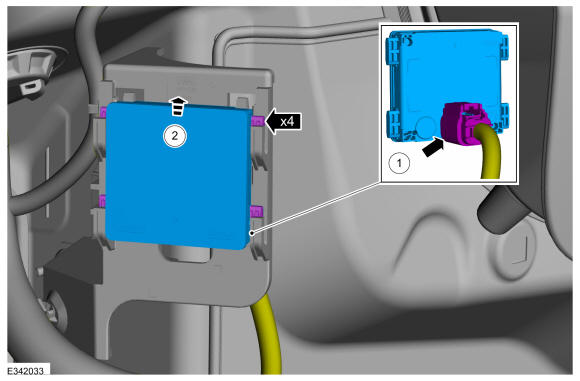

- Remove the SODL or SODR.
- Disconnect the SODL or SODR electrical connector.
- Release the tabs and remove the SODL or SODR.
Side obstacle detection control module bracket
- Remove the SODL or SODR.

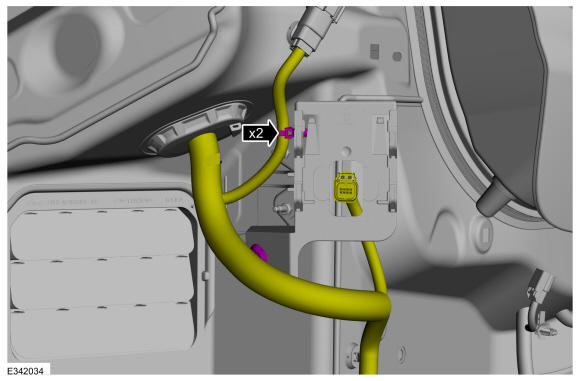

- Disconnect the wiring harness retainers from the bracket.

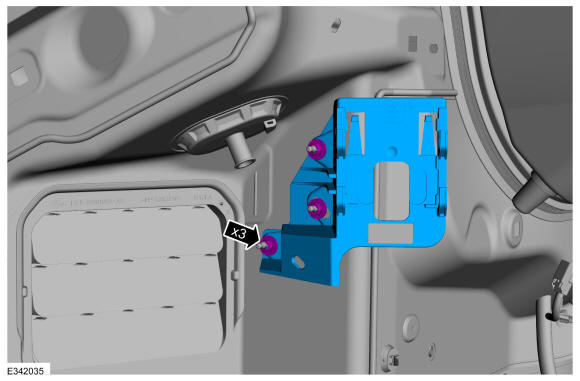

- Remove the screws and the SODL or SODR bracket.
