Front Trunk Release Relay Module: Removal

WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Glove Compartment. Refer to: Glove Compartment .
  2. Remove the front trunk release relay module.

    1. Disconnect the front trunk release relay module electrical connector.
    2. Release the front trunk release relay module retainer.
    3. Remove the front trunk release relay module.

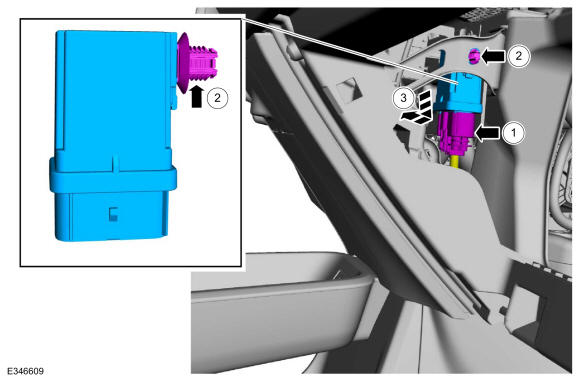

GFD769344Courtesy of FORD MOTOR COMPANY
