Intermediate Shaft: Installation

WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.

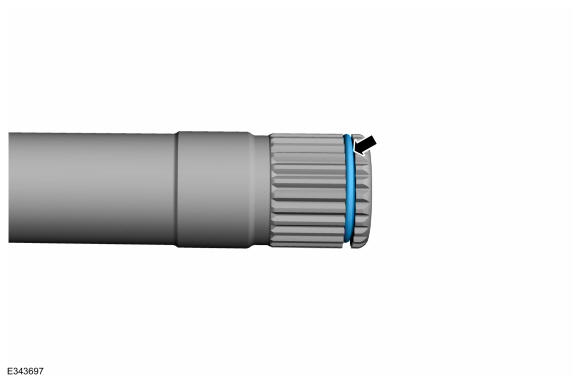

  1. Install the new intermediate shaft retaining circlip.
    GFD767288Courtesy of FORD MOTOR COMPANY

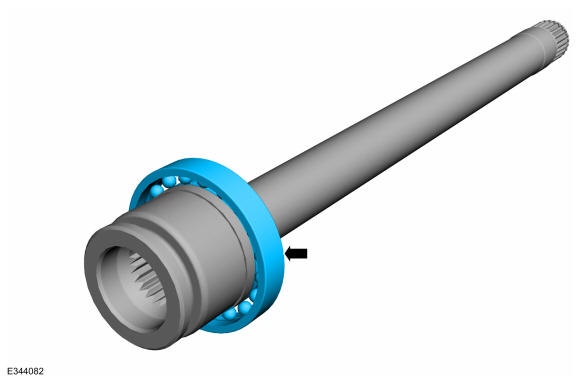

  2. Install the intermediate shaft bearing.
    GFD767289Courtesy of FORD MOTOR COMPANY

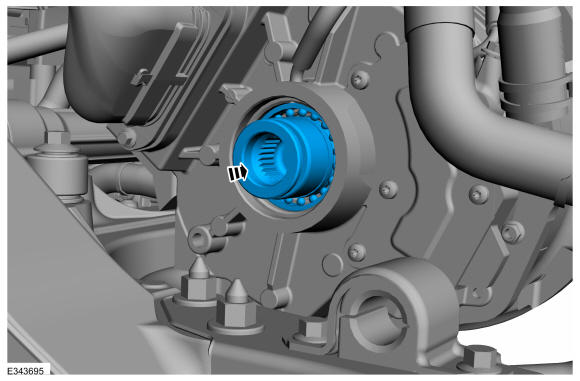

  3. Install the intermediate shaft.
    GFD767290Courtesy of FORD MOTOR COMPANY

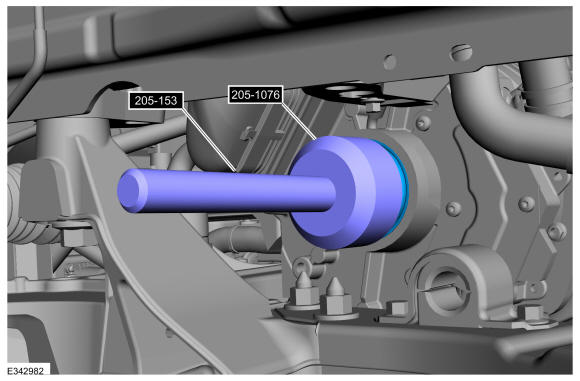

  4. Install the intermediate shaft seal. Use Special Service Tool: 205-1076 Link Shaft tool E-Drive Rear Axle., 205-153 (T80T-4000-W) Handle.
    GFD767291Courtesy of FORD MOTOR COMPANY

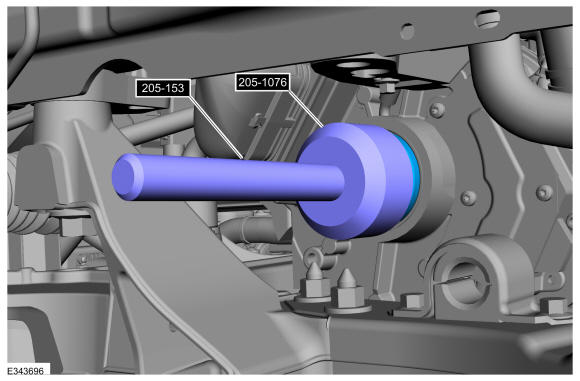

  5. Install the intermediate shaft dust cover. Use Special Service Tool: 205-1076 Link Shaft tool E-Drive Rear Axle., 205-153 (T80T-4000-W) Handle.
    GFD767292Courtesy of FORD MOTOR COMPANY
  6. Check and top off the front electric drive assembly oil level. Refer to: Drive Assembly Oil Draining and Filling .
