Steering Gear: Installation

NOTE: Hand start retainers.

With all retainers finger tightened, complete the tightening sequence, as shown below. Stage 1 on each retainer then stage 2.

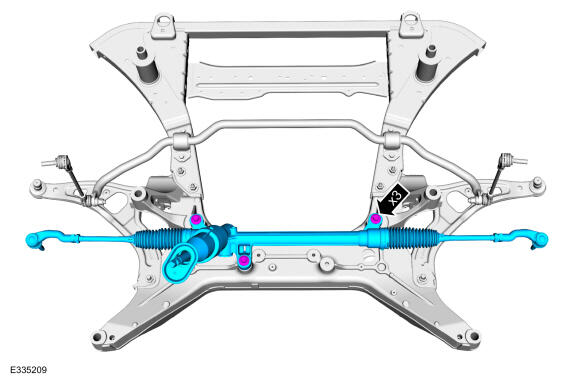

1. Position the steering gear.
2. Tighten the steering gear retainers.
  Torque

  : Stage 1: 70 Nm

  Stage 2: 120deg.
Courtesy of FORD MOTOR COMPANY
Install the front subframe. Refer to: Front Subframe .
