Front Seat Control Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
NOTE: Left-hand drive (LHD) driver seat shown, all others similar.

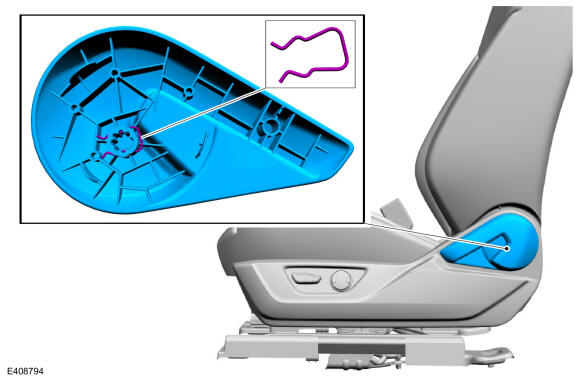

  1. Release the retaining clip and remove the front seat recline handle.
    GFD866878Courtesy of FORD MOTOR COMPANY

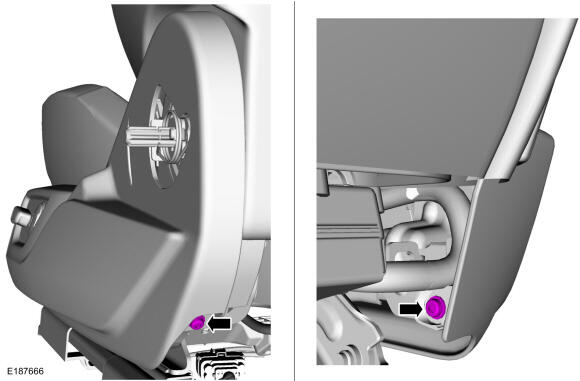

  2. Remove the front seat side shield screws.
    GFD866880Courtesy of FORD MOTOR COMPANY

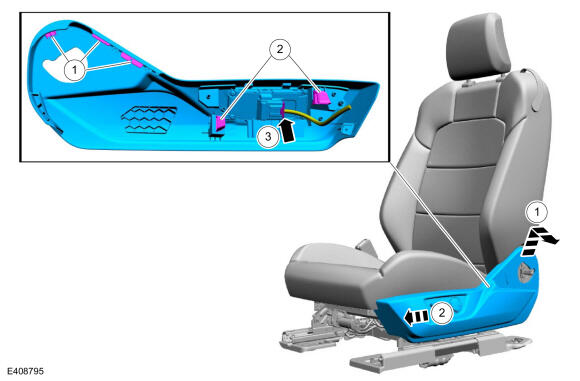

  3. Remove the font seat side shield.

    1. Lift up on the rear of the front seat side shield and pull outward.
    2. Push the front seat side shield forward.
    3. Disconnect the electrical connector.

    GFD866881Courtesy of FORD MOTOR COMPANY

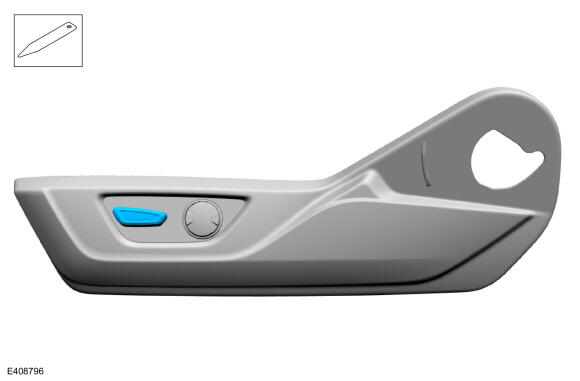

  4. Remove the front seat control switch knob.
    GFD866916Courtesy of FORD MOTOR COMPANY

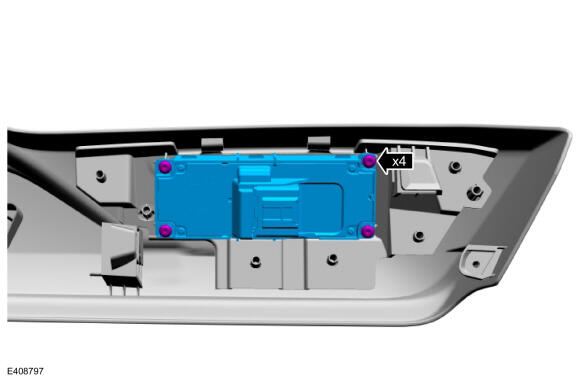

  5. Remove the screws and the front seat control switch.
GFD866917Courtesy of FORD MOTOR COMPANY
