Driver Front Seat Module (DSM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Left-hand drive (LHD) driver seat shown, right-hand drive (RHD) driver seat similar.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI (programmable module installation) process must begin with the current DSM (driver front seat module) installed. If the current DSM (driver front seat module) does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the DSM following the on-screen instructions.

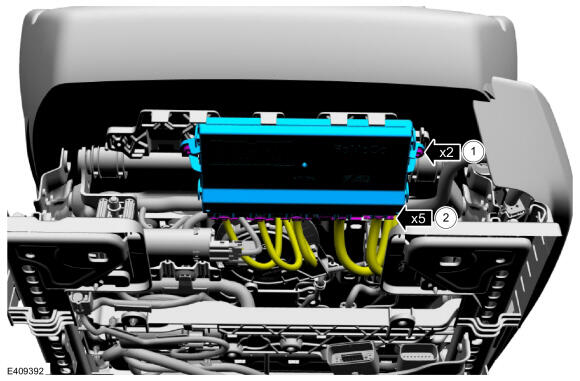

Remove the DSM.
1. Remove the screws.
  Torque: 5 Nm
2. Disconnect the electrical connectors.
