Steering Column Lock Module (SCLM): Removal

WARNING: This page is about a different car, the 2024 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: Prior to the removal of the steering column lock module, it is necessary to upload the BCM (body control module) configuration information to the scan tool. This information must be downloaded back into the same BCM after installation of a new steering column lock module in order to establish the correct configuration of the BCM into the new steering column lock module.

Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.
Remove the steering column shrouds. Refer to: Steering Column Shrouds .

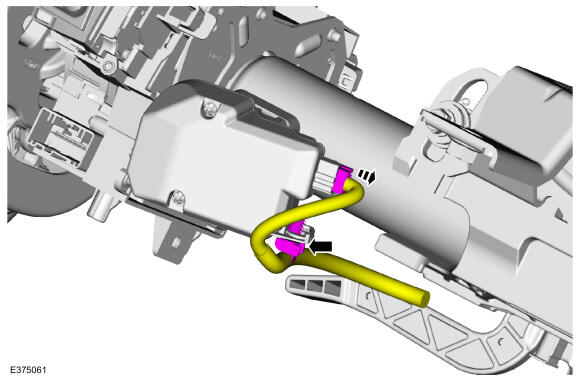

Disconnect the steering column lock module electrical connector, unclip and position the harness aside.

Courtesy of FORD MOTOR COMPANY

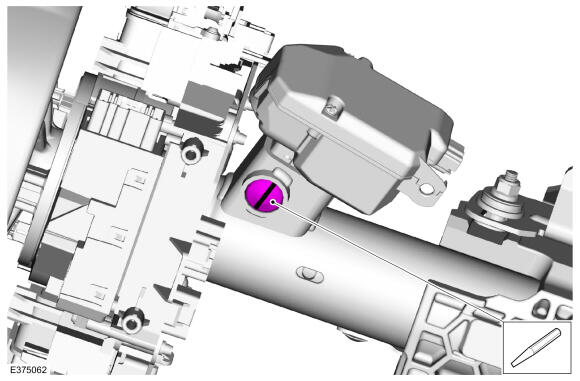

Use a chisel and hammer to cut a slot in the steering column lock module retainer.

Courtesy of FORD MOTOR COMPANY
NOTE: The steering column lock module is secured with a break-away head bolt. Tighten the bolt until the hex head portion of the bolt breaks away.

Remove the steering column lock module.

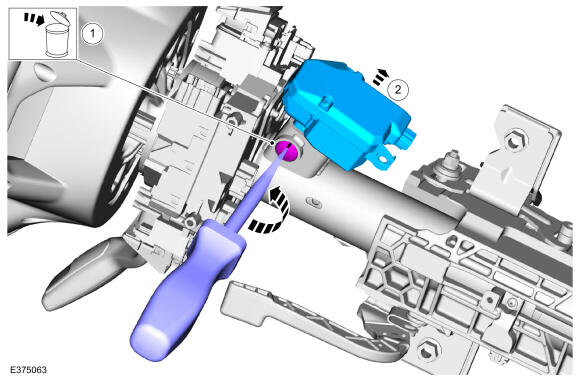

1. Remove and discard the steering column lock module retainer.Use the General Equipment: Flat Headed Screw Driver
  Torque

  : 25 Nm
2. Remove the steering column lock module.

Courtesy of FORD MOTOR COMPANY
