Steering Column Control Module (SCCM): Removal

WARNING: This page is about a different car, the 2024 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCCM installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.
Remove the clockspring. Refer to: Clockspring .

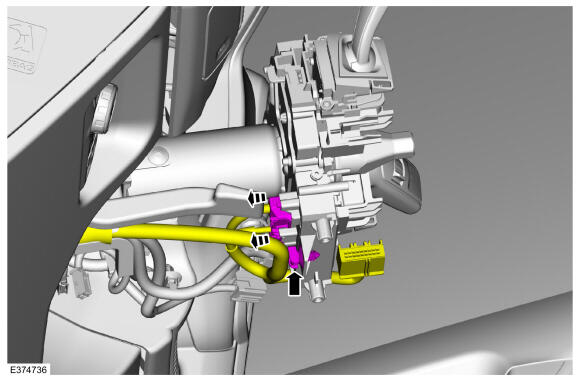

Disconnect the SCCM electrical connectors, unclip and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

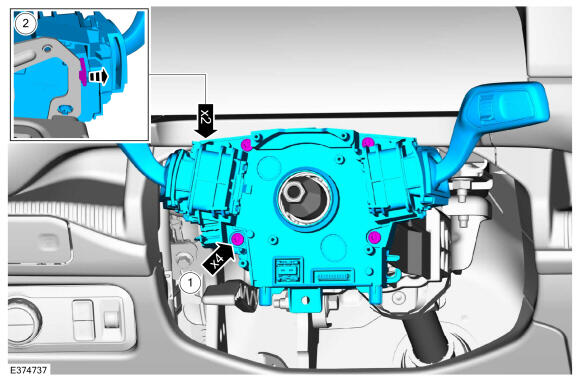

Remove the SCCM.
1. Remove the retainers.
  Torque

  : 3 Nm
2. On both sides.Release the clips and remove the SCCM.

Courtesy of FORD MOTOR COMPANY
