Overhead Console: Removal

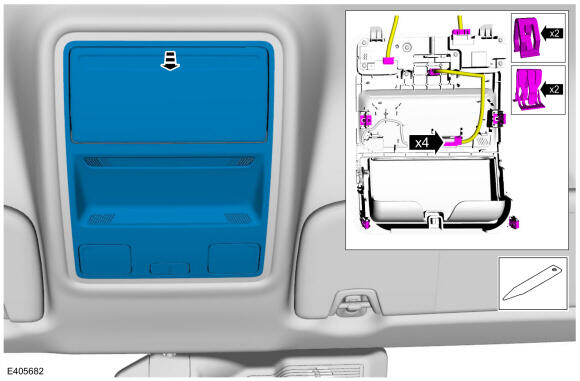

Coupe

  1. Starting at the rear, release the clips and remove the overhead console.

    • Disconnect the electrical connectors.

    GFD867077Courtesy of FORD MOTOR COMPANY

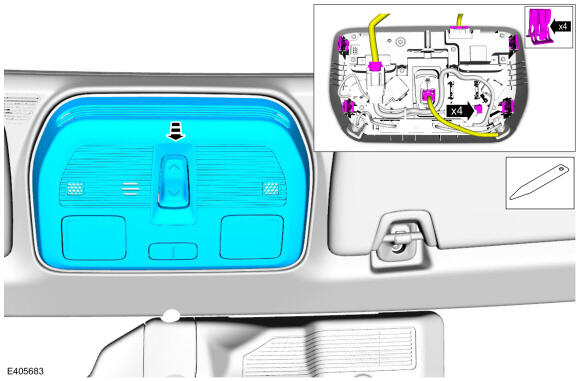

    Convertible

  2. Starting at the rear, release the clips and remove the overhead console.

    • Disconnect the electrical connectors.

GFD867078Courtesy of FORD MOTOR COMPANY
