Transfer Case Shift Motor: Installation

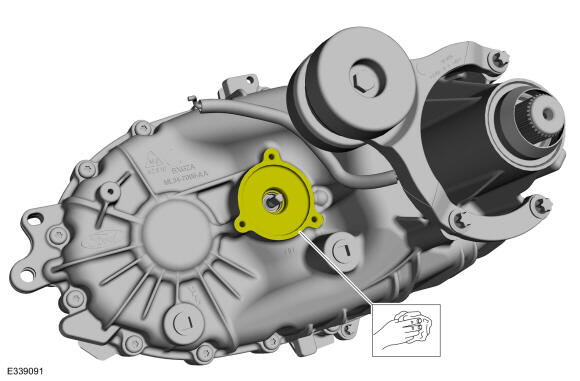

Clean the transfer case shift motor mating surface.

Courtesy of FORD MOTOR COMPANY

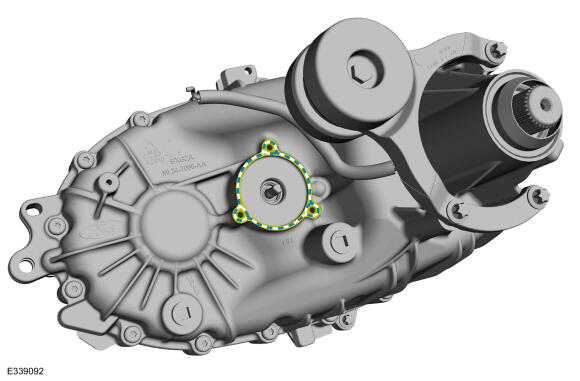

Apply a small bead of silicone sealant to the transfer case shift motor mating surface.
Material

: Silicone Sealant (WSS-M4G323-A8)

Courtesy of FORD MOTOR COMPANY

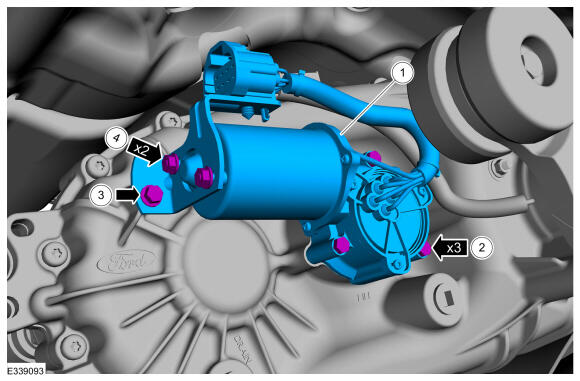

NOTE: When installing the shift motor, tighten the bracket nuts last. Failure to follow the steps in the correct order may result in damage to the component.
1. Install the transfer case shift motor.
2. Install the transfer case shift motor bolts.
  Torque

  : 10 Nm
3. Install the transfer case shift motor bracket bolt.
  Torque

  : 10 Nm
4. Tighten the transfer case shift motor bracket nuts.
  Torque

  : 3 Nm
Courtesy of FORD MOTOR COMPANY

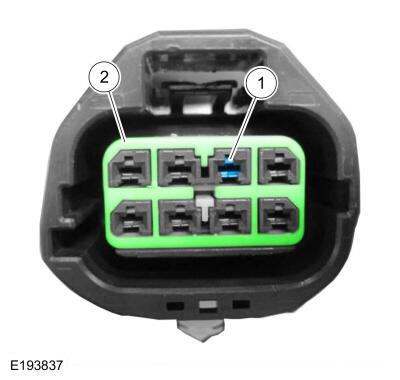

NOTE: After the wire is inserted into the connector, gently pull the wire back to verify the pin is locked inside the connector.

Install the coil wire pin in the electrical connector.
1. Insert the coil wire pin in the electrical connector.
2. Install the inner connector retainer.
Courtesy of FORD MOTOR COMPANY

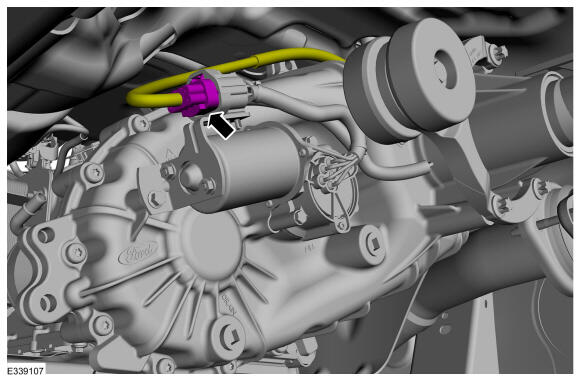

Connect the harness connector.
