Steering Column Control Switch: Removal

WARNING: This page is about a different car, the 2022 Ford F-150 Lightning and 2022 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .

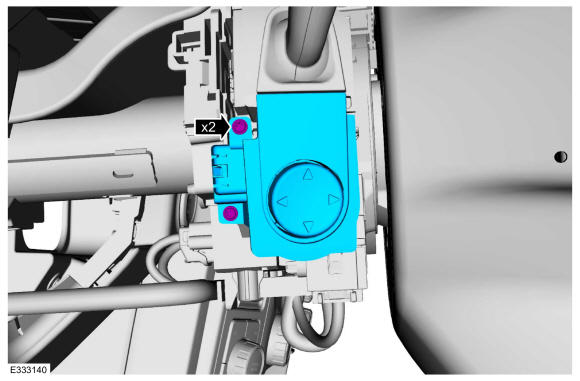

  2. Remove the retainers and the steering column control switch.
GFD677318Courtesy of FORD MOTOR COMPANY
