Trailer Brake Control Switch: Removal

WARNING: This page is about a different car, the 2022 Ford F-150 Lightning and 2022 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Vehicles equipped with a floor console

Remove the floor console. Refer to: Floor Console .
All vehicles
NOTE: 12 inch screen shown in illustration, 10 inch screen is similar.

Release the clips and remove the upper centerstack bezel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the RH instrument center trim panel.
- On vehicles equipped with push button start disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

Vehicles without a floor console
Remove the bolt.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the instrument panel lower trim panel.

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the LH lower center trim panel.

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the RH lower center trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the lower center trim panel.
- Remove the bolts.
  Torque: 22 lb.in (2.5 Nm)
- Release the clips.
- Disconnect the electrical connectors.
Courtesy of FORD MOTOR COMPANY

Vehicles equipped with a floor console
Remove the lower center trim panel.
- Remove the bolts.
  Torque: 22 lb.in (2.5 Nm)
- Release the clips.
- Disconnect the electrical connectors.
Courtesy of FORD MOTOR COMPANY

All vehicles

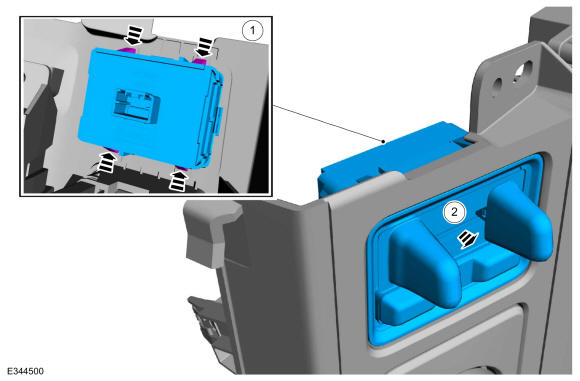

Press the 4 tabs and remove the trailer brake control switch.
- Press the 4 tabs.
- Remove the trailer brake control switch.

Courtesy of FORD MOTOR COMPANY
