Driver Door Module (DDM): Removal

WARNING: This page is about a different car, the 2022 Ford F-150 Lightning and 2022 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

NOTE: Removal steps in this procedure may contain installation details.

Using a diagnostic scan tool, begin the PMI process for the DDM following the on-screen instructions.
Remove the front door trim panel. Refer to: Front Door Trim Panel .

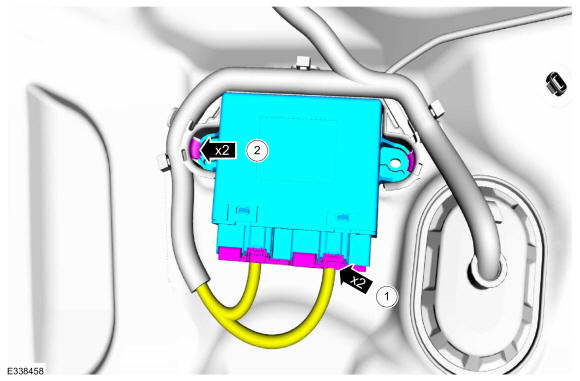

1. Disconnect the electrical connectors.
2. Release the tabs and remove the DDM.

Courtesy of FORD MOTOR COMPANY
