Transfer Case

WARNING: This page is about a different car, the 2024 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

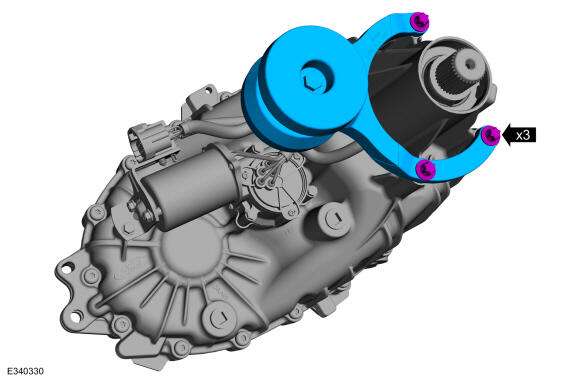

If removed, install the vibration damper to the transfer case.
Torque

: 20 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: The help of an assistant will be required.

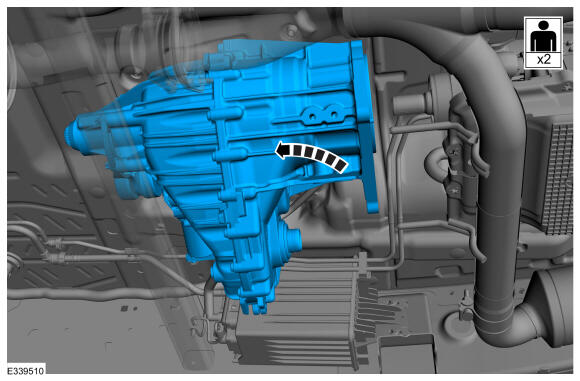

Position the transfer case on the crossmember.

Courtesy of FORD MOTOR COMPANY
NOTE: The help of an assistant will be required.

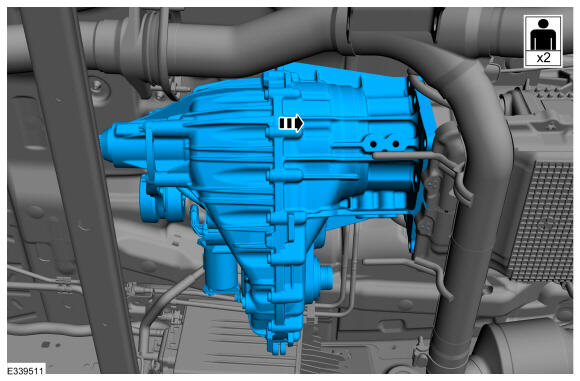

Position the transfer case to the transmission and onto the output shaft.

Courtesy of FORD MOTOR COMPANY

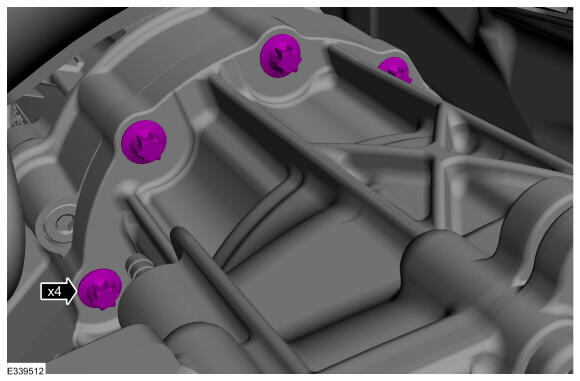

NOTE: Do not reuse the old transfer case-to-transmission bolts.

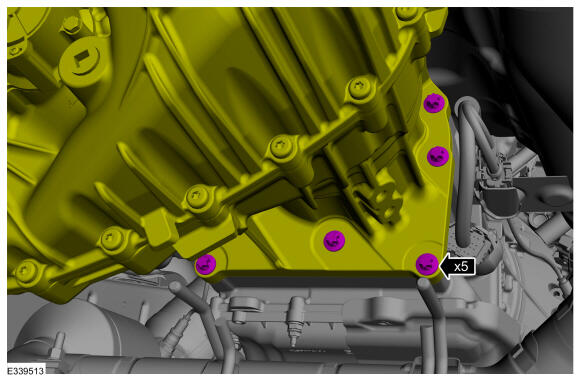

Install new transfer case-to-transmission bolts.

Torque

: 19 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: Do not reuse the old transfer case-to-transmission bolts.

Install new transfer case-to-transmission bolts.

Torque

: 19 Nm

Courtesy of FORD MOTOR COMPANY
Install the transmission support insulator. Refer to: Transmission Support Insulator . Refer to: Transmission Support Insulator . Refer to: Transmission Support Insulator .

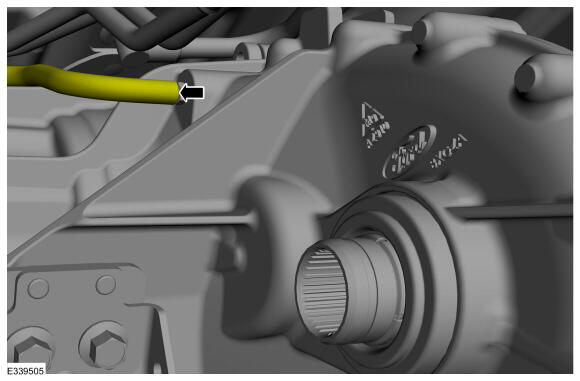

Connect the vent hose to the transfer case.

Courtesy of FORD MOTOR COMPANY

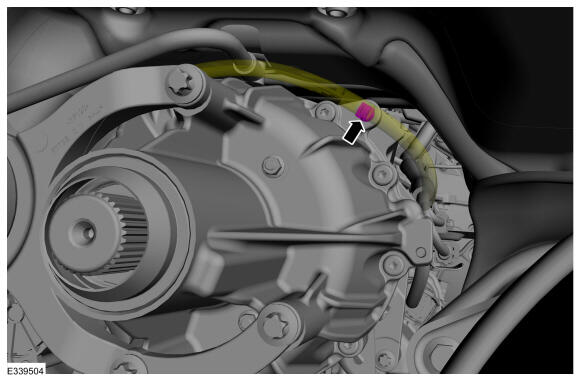

Attach the harness retainer clip to the transfer case.

Courtesy of FORD MOTOR COMPANY

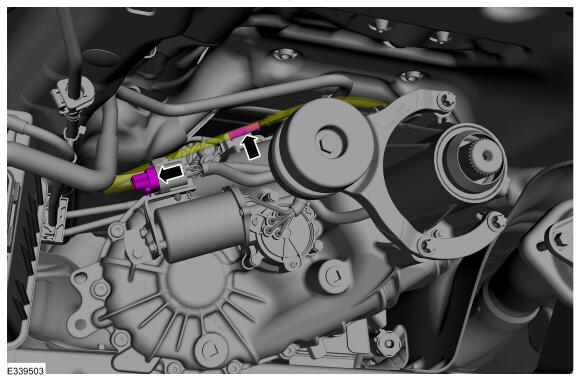

Connect the shift motor electrical connector and attach the harness retainer clip to the transfer case.

Courtesy of FORD MOTOR COMPANY
NOTE: Align the index marks made during removal.

Install the rear driveshaft. Refer to: Rear Driveshaft .
NOTE: Align the index marks made during removal.

Install the front driveshaft. Refer to: Front Driveshaft .
Check the transfer case fluid level. Refer to: Transfer Case Draining and Filling .

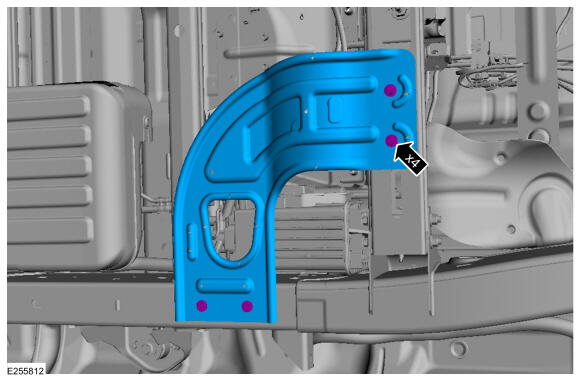

If equipped.Position the skid plate and install the skid plate bolts.
Torque

: 30 Nm

Courtesy of FORD MOTOR COMPANY
