Differential Fluid Level Check

WARNING: This page is about a different car, the 2024 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Fluid Suction Gun

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: If equipped.

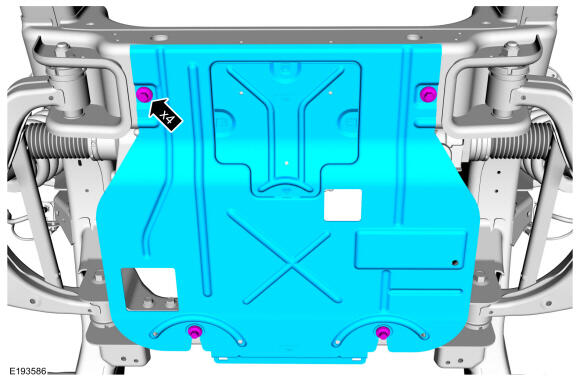

Remove the underbody shield bolts and remove the underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

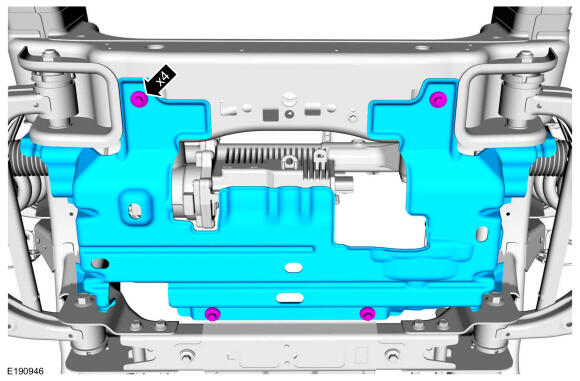

Remove the underbody shield bolts, the pin type retainers, and the underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

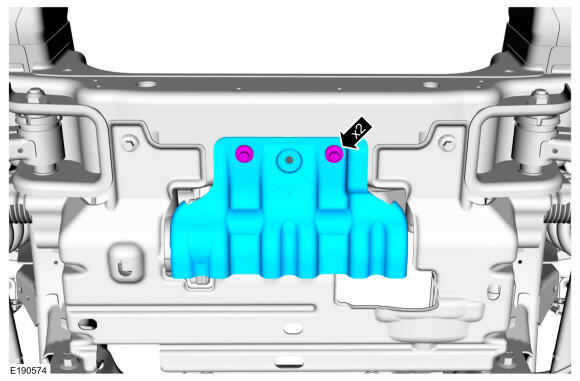

Remove the underbody shield bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY

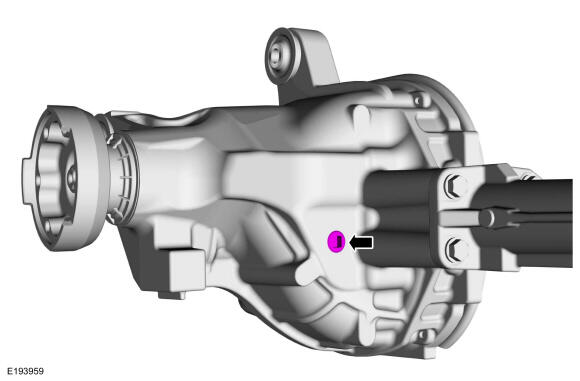

Remove the front differential fill plug.

Courtesy of FORD MOTOR COMPANY

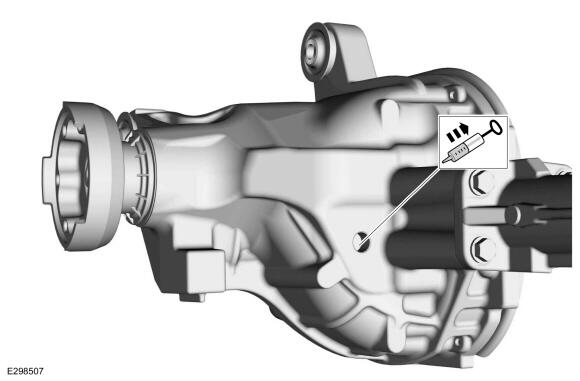

If draining is needed.Using a general equipment, remove as much fluid as possible from the front differential.Use the General Equipment: Fluid Suction Gun

Courtesy of FORD MOTOR COMPANY

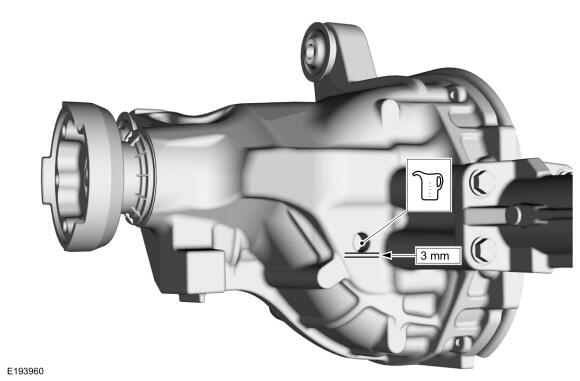

Check the differential fluid and add the clean differential fluid as necessary to specification. The differential fluid level should be within 3 mm (0.118 in) from the fluid fill plug opening. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Install the front differential fill plug.
Torque

: 25 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the underbody shield and underbody shield bolts.

Torque

: 40 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the underbody shield and the underbody shield bolts, or the pin type retainers.

Torque

: 40 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the underbody shield and the underbody shield bolts.

Torque

: 40 Nm

Courtesy of FORD MOTOR COMPANY
