Section 1456 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2024 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

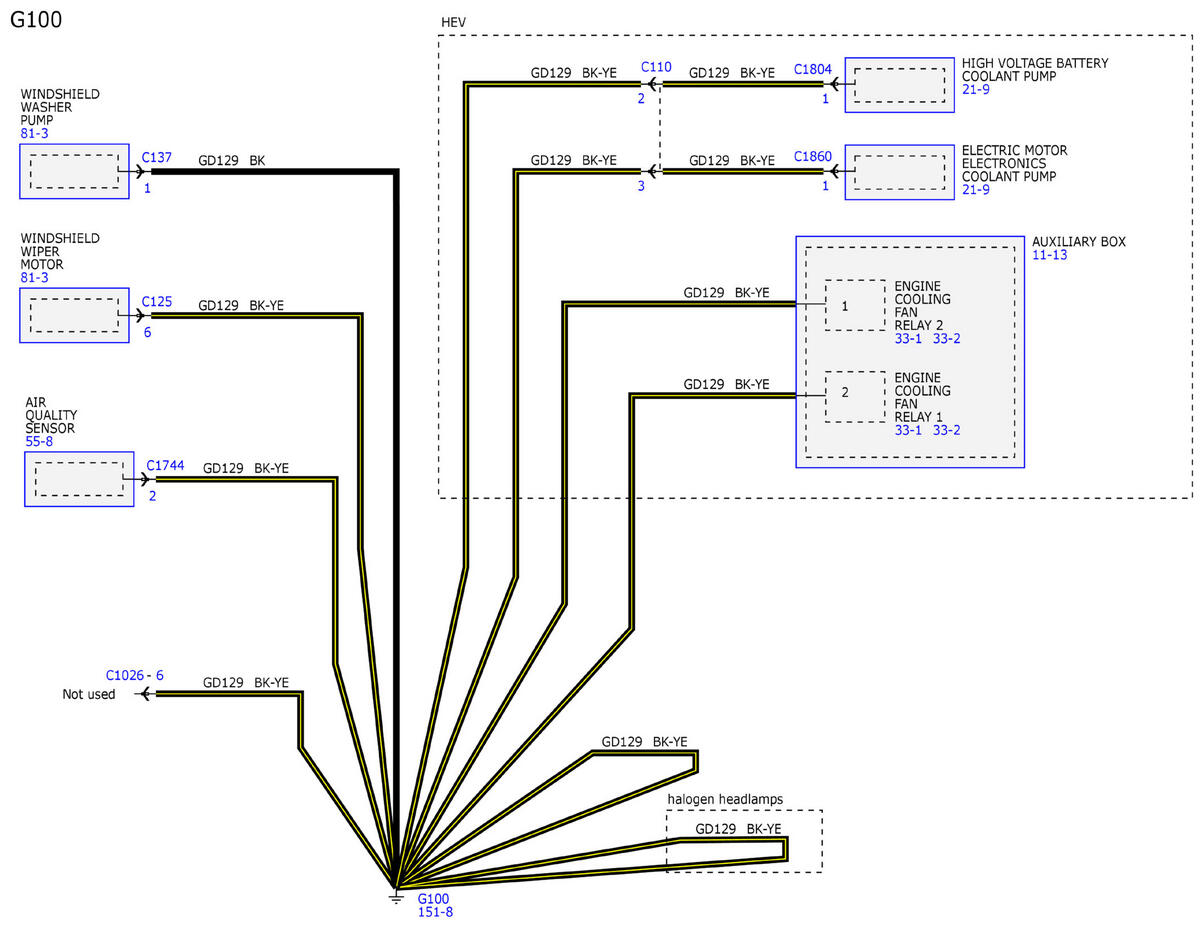

GFDWR225598

Courtesy of FORD MOTOR COMPANY

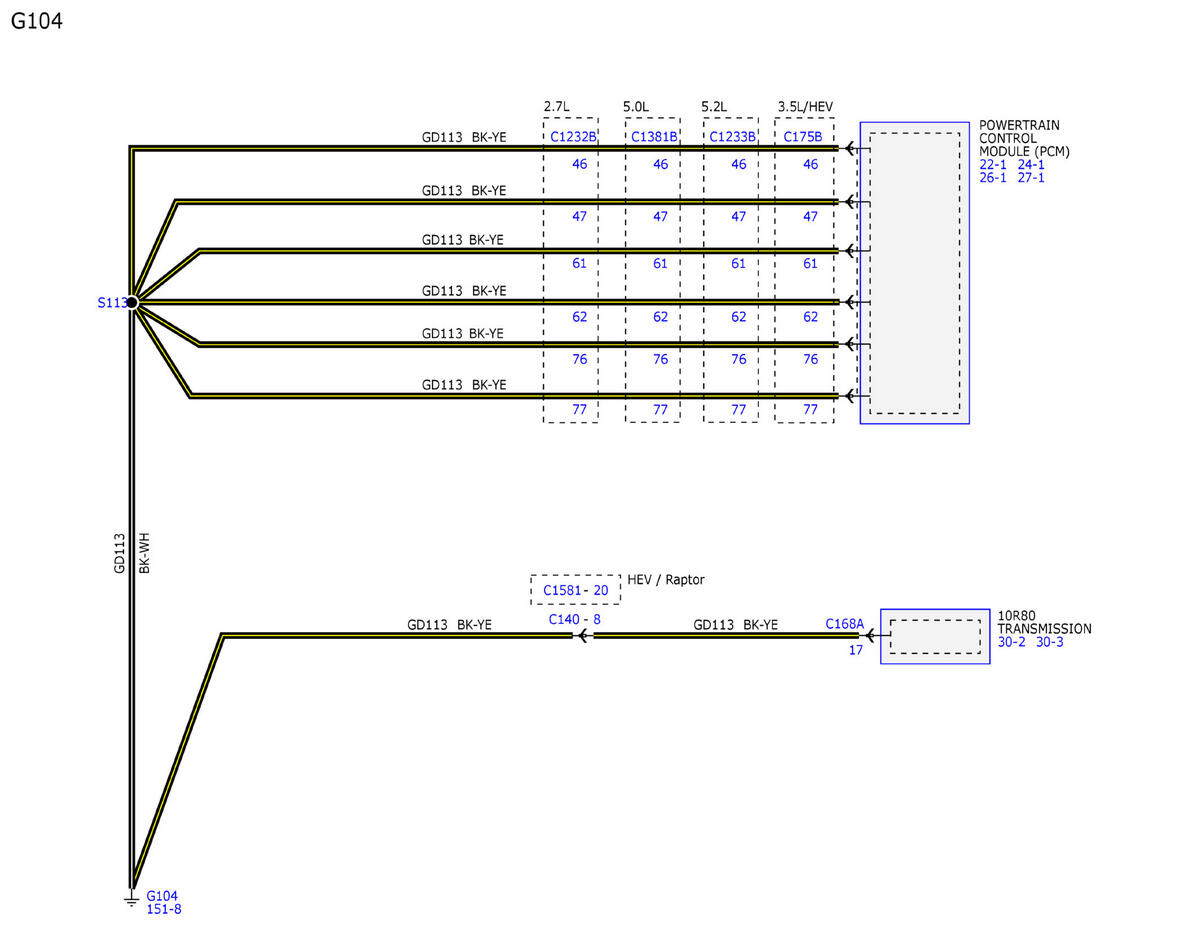

GFDWR225599

Courtesy of FORD MOTOR COMPANY

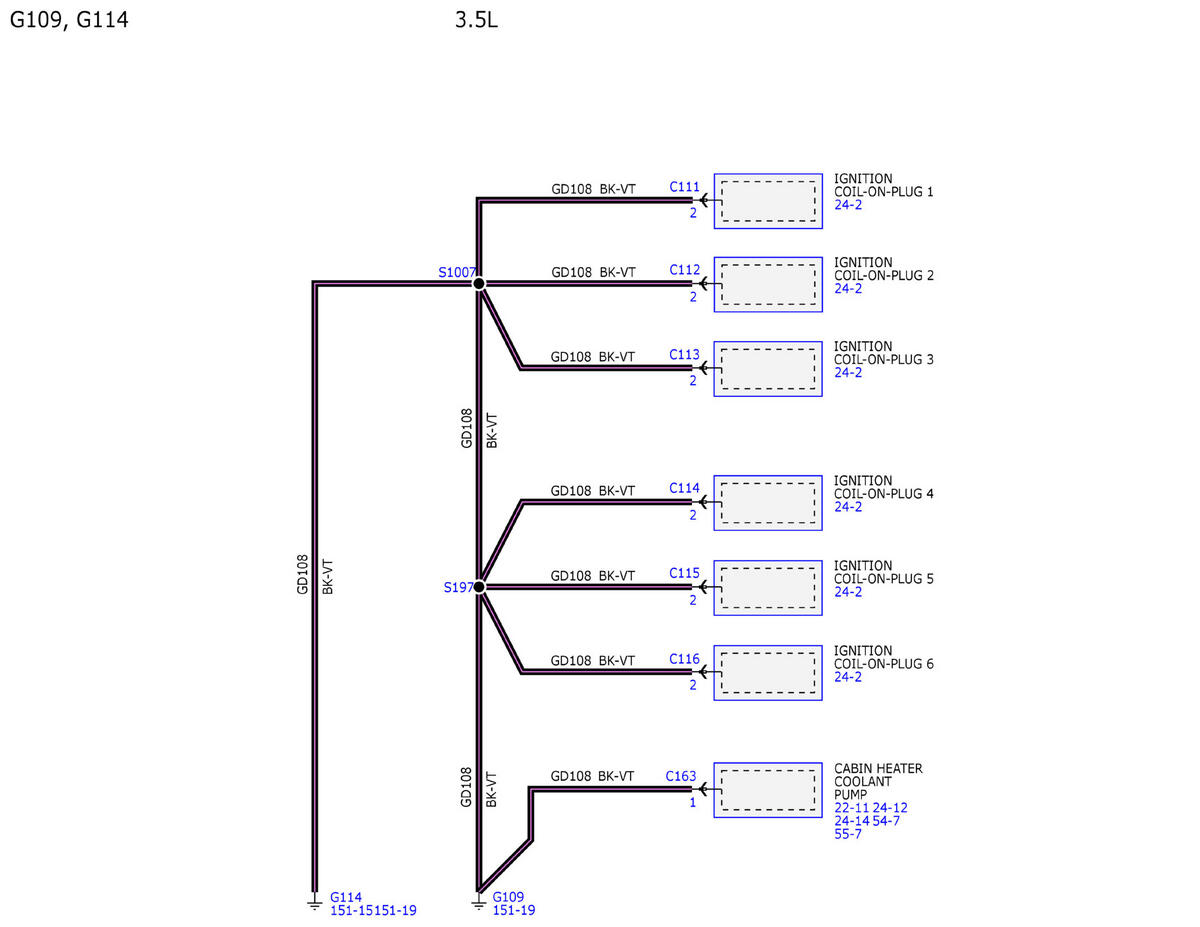

GFDWR225600

Courtesy of FORD MOTOR COMPANY

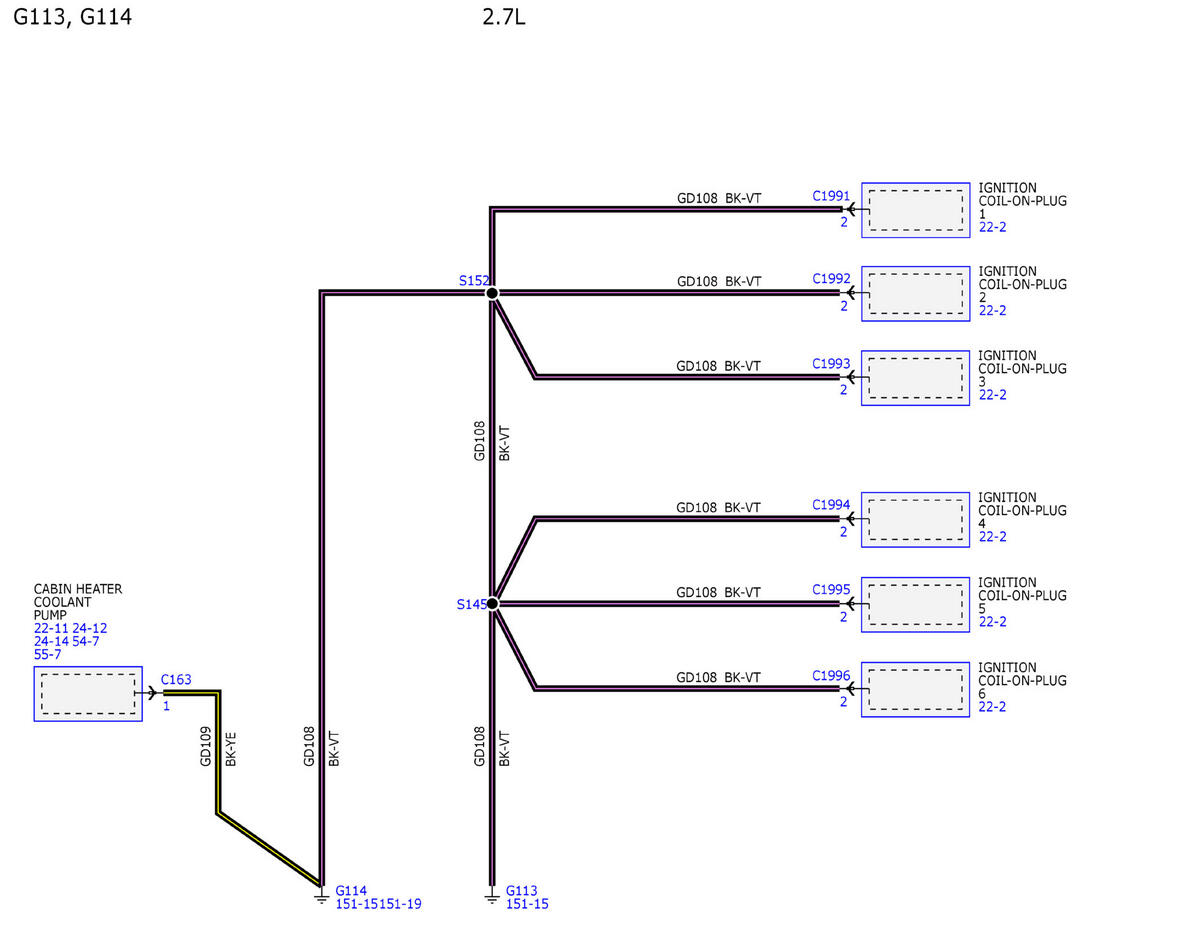

GFDWR225601

Courtesy of FORD MOTOR COMPANY

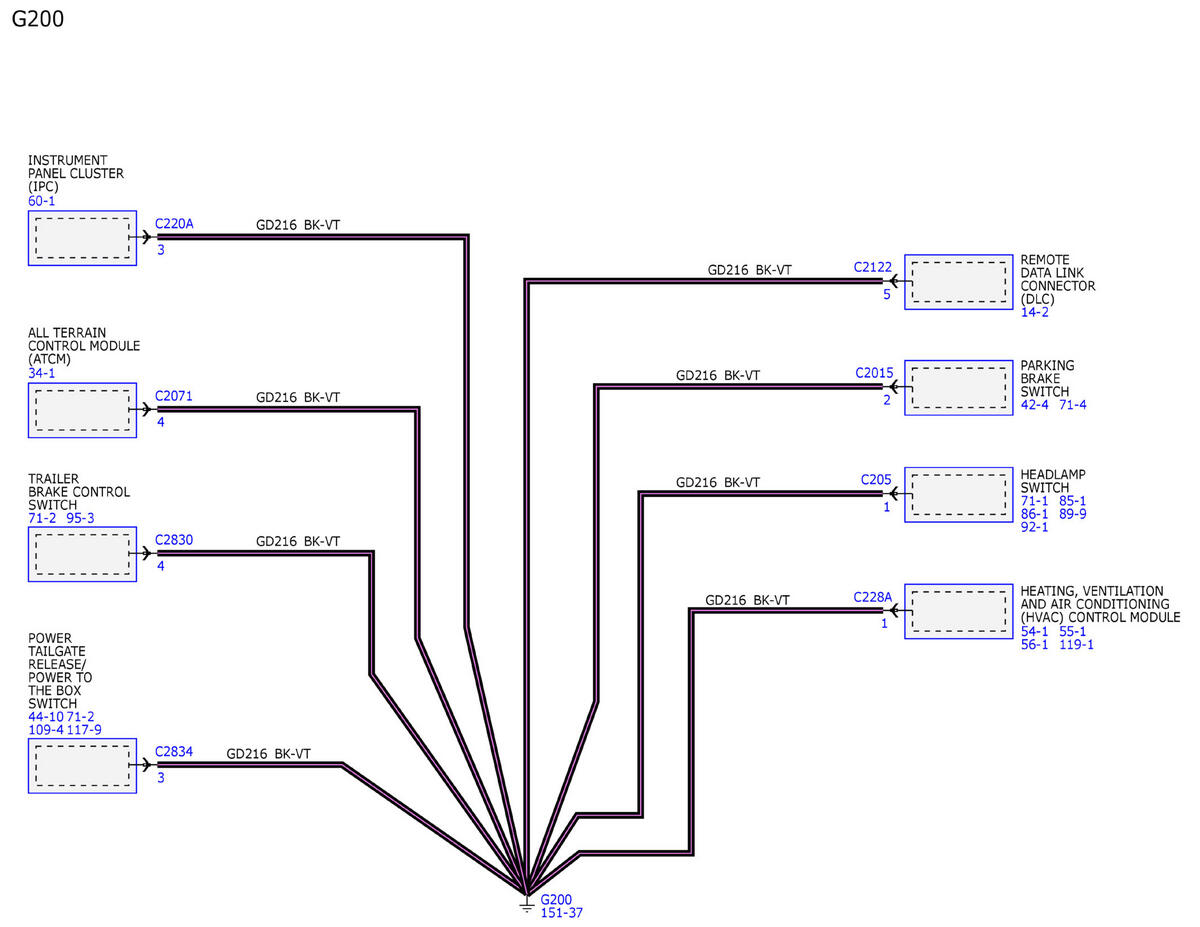

GFDWR225602

Courtesy of FORD MOTOR COMPANY

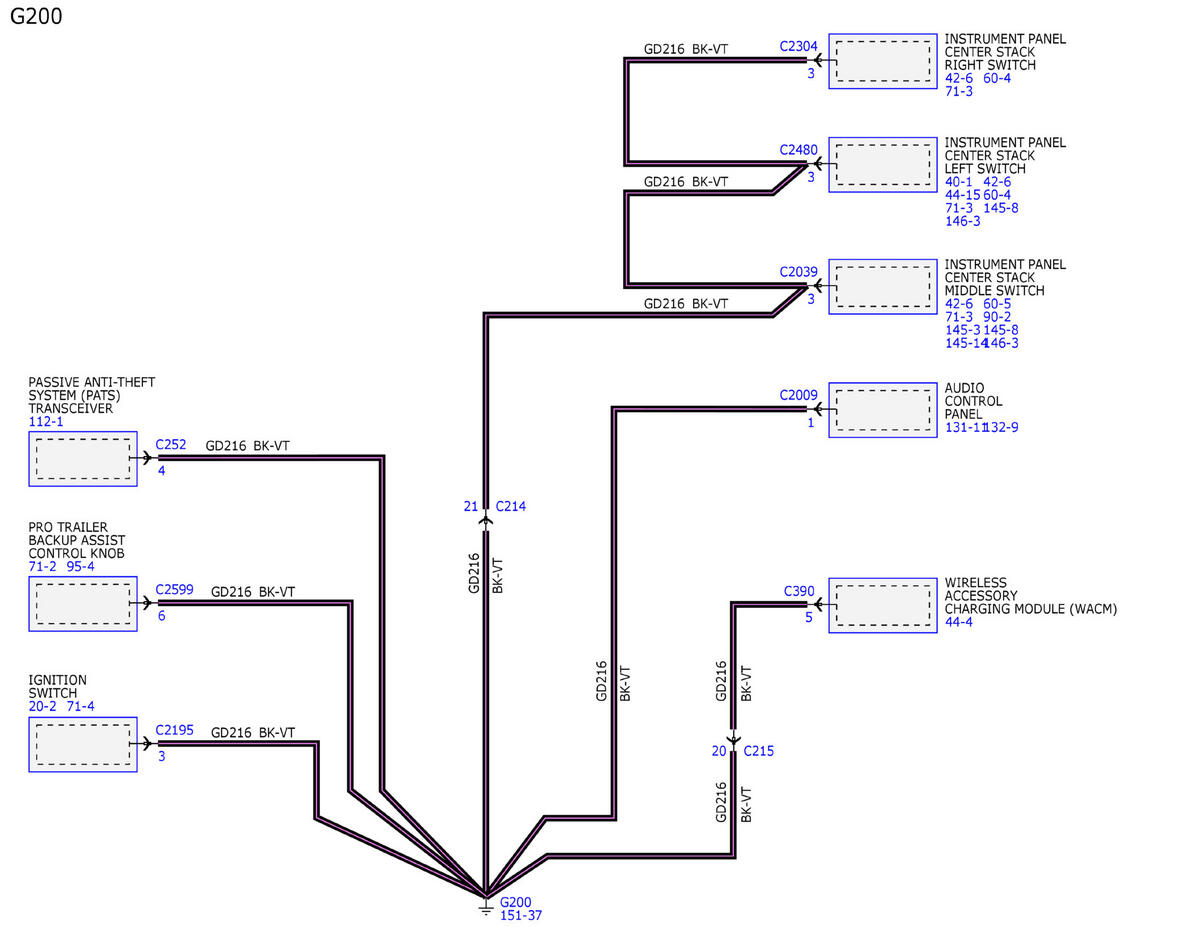

GFDWR225603

Courtesy of FORD MOTOR COMPANY

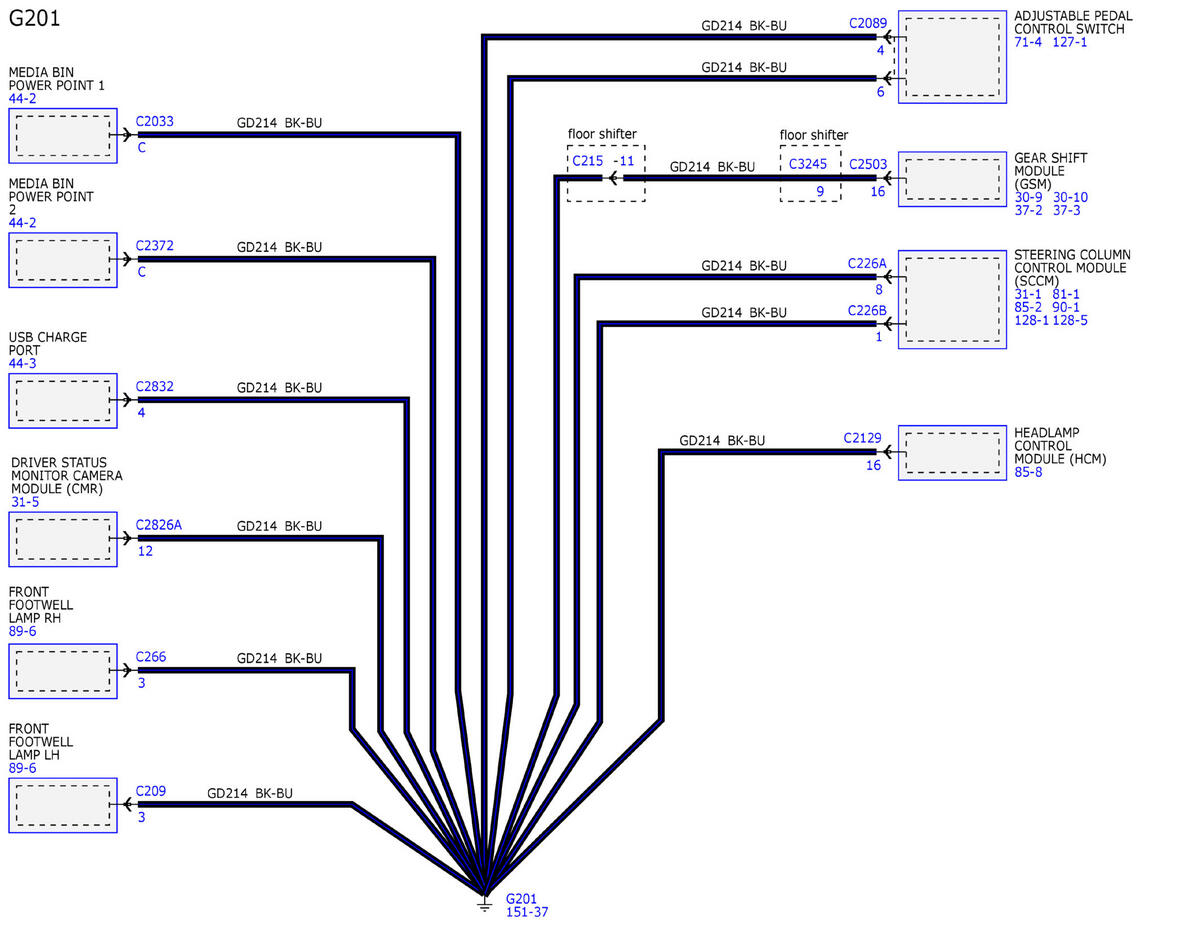

GFDWR225604

Courtesy of FORD MOTOR COMPANY

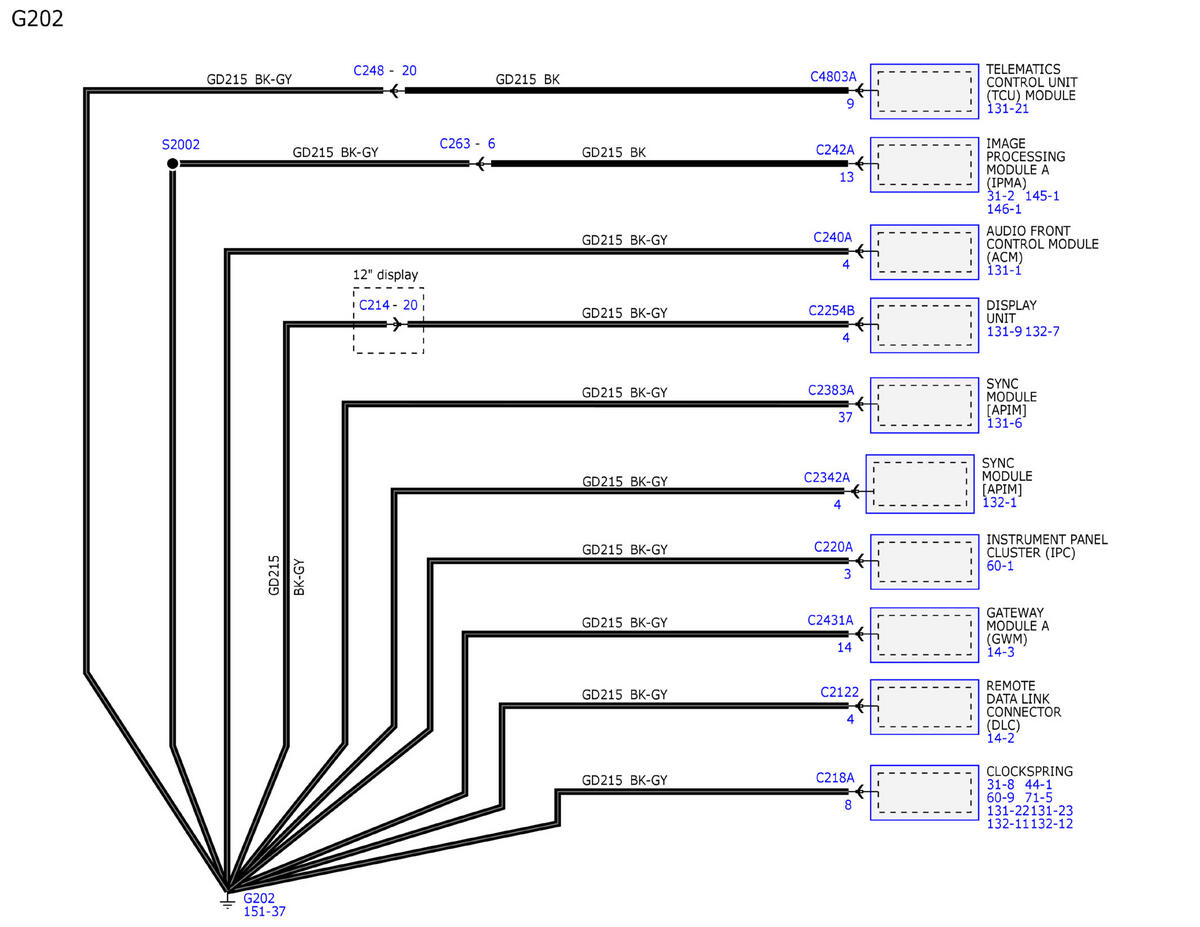

GFDWR225605

Courtesy of FORD MOTOR COMPANY

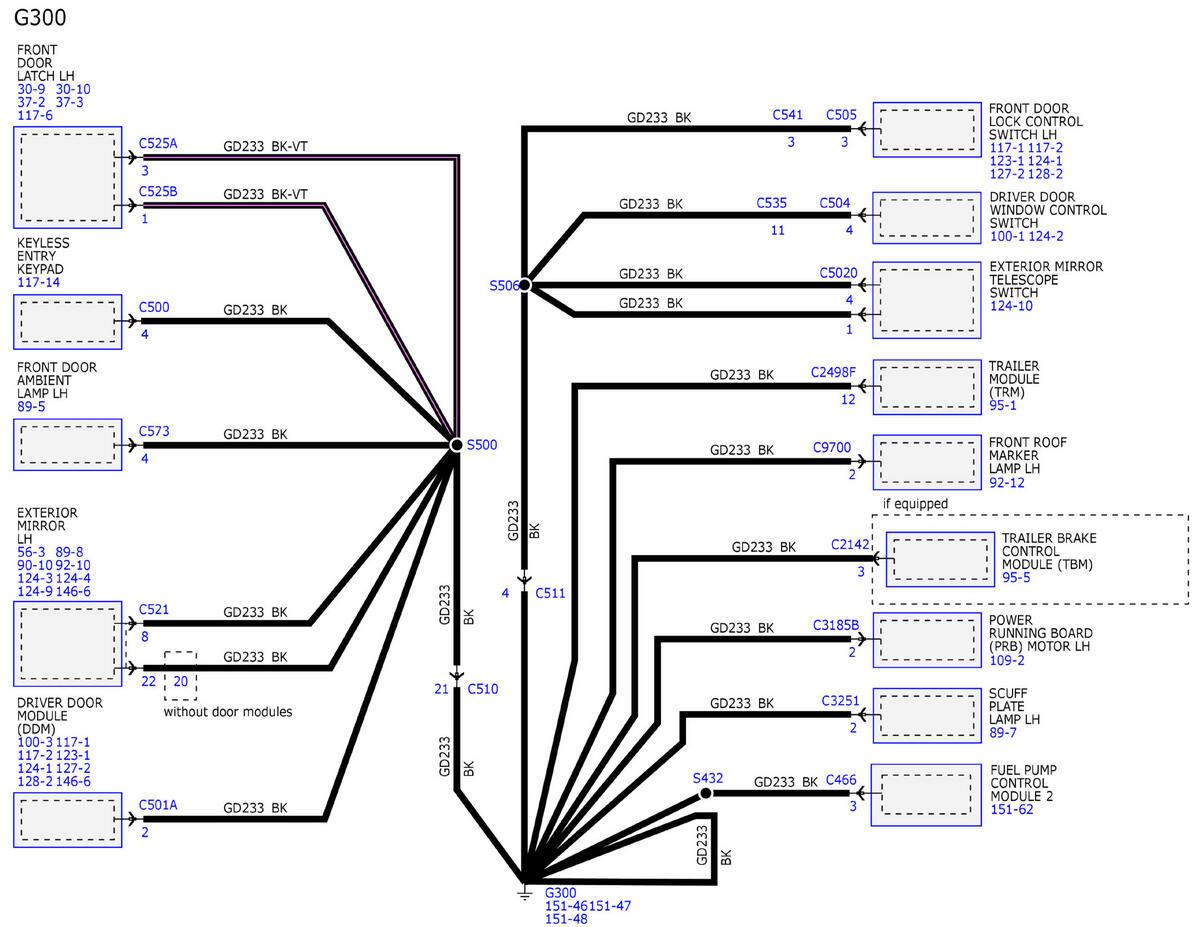

GFDWR225606

Courtesy of FORD MOTOR COMPANY

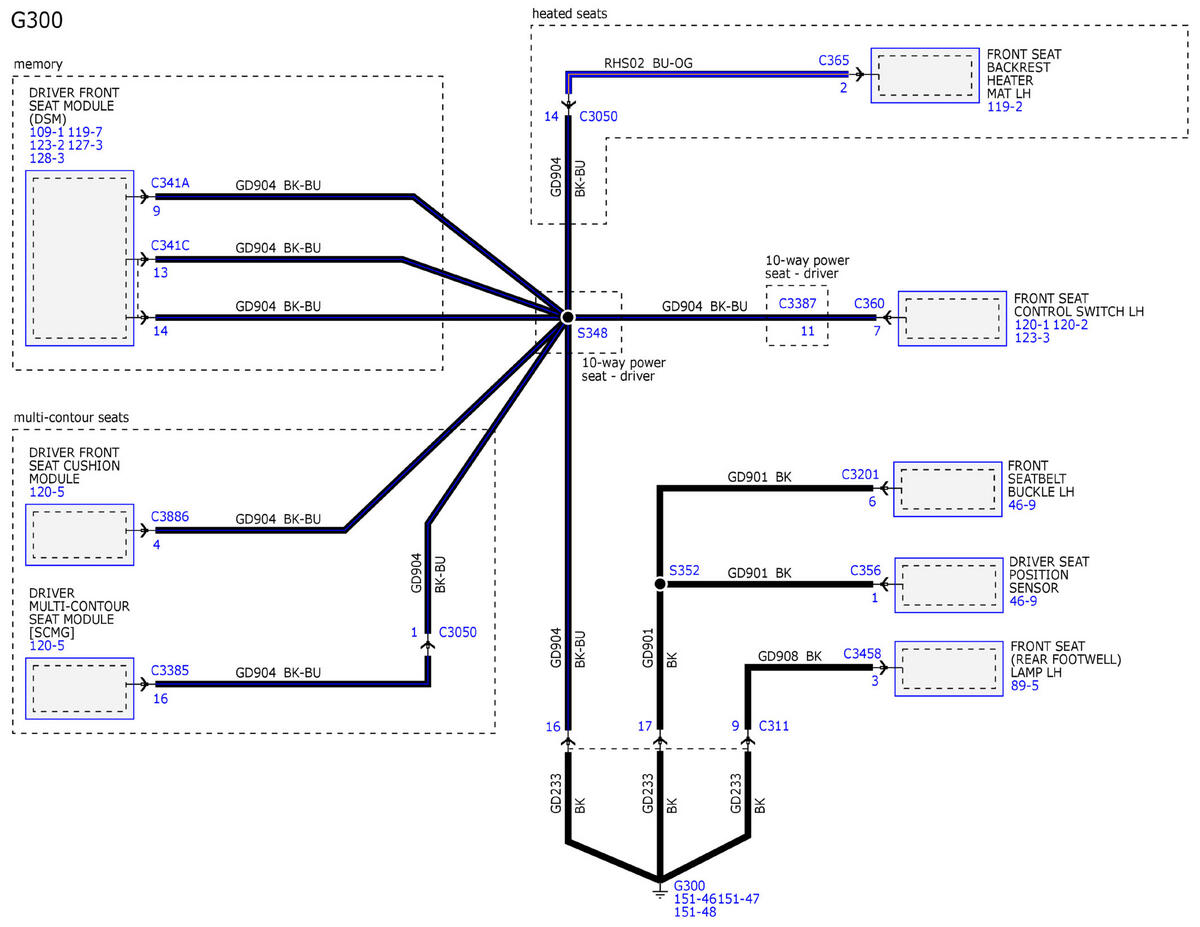

GFDWR225607

Courtesy of FORD MOTOR COMPANY

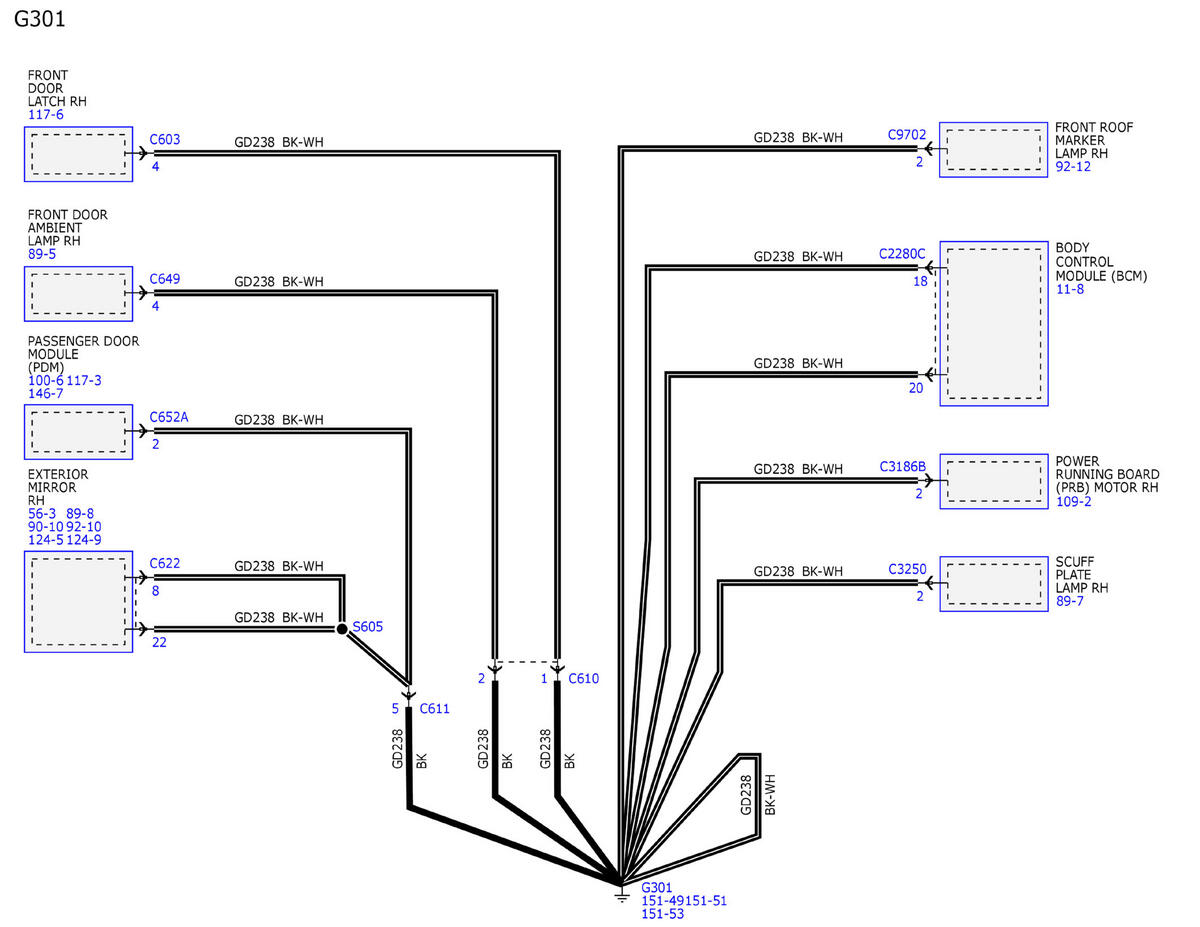

GFDWR225608

Courtesy of FORD MOTOR COMPANY

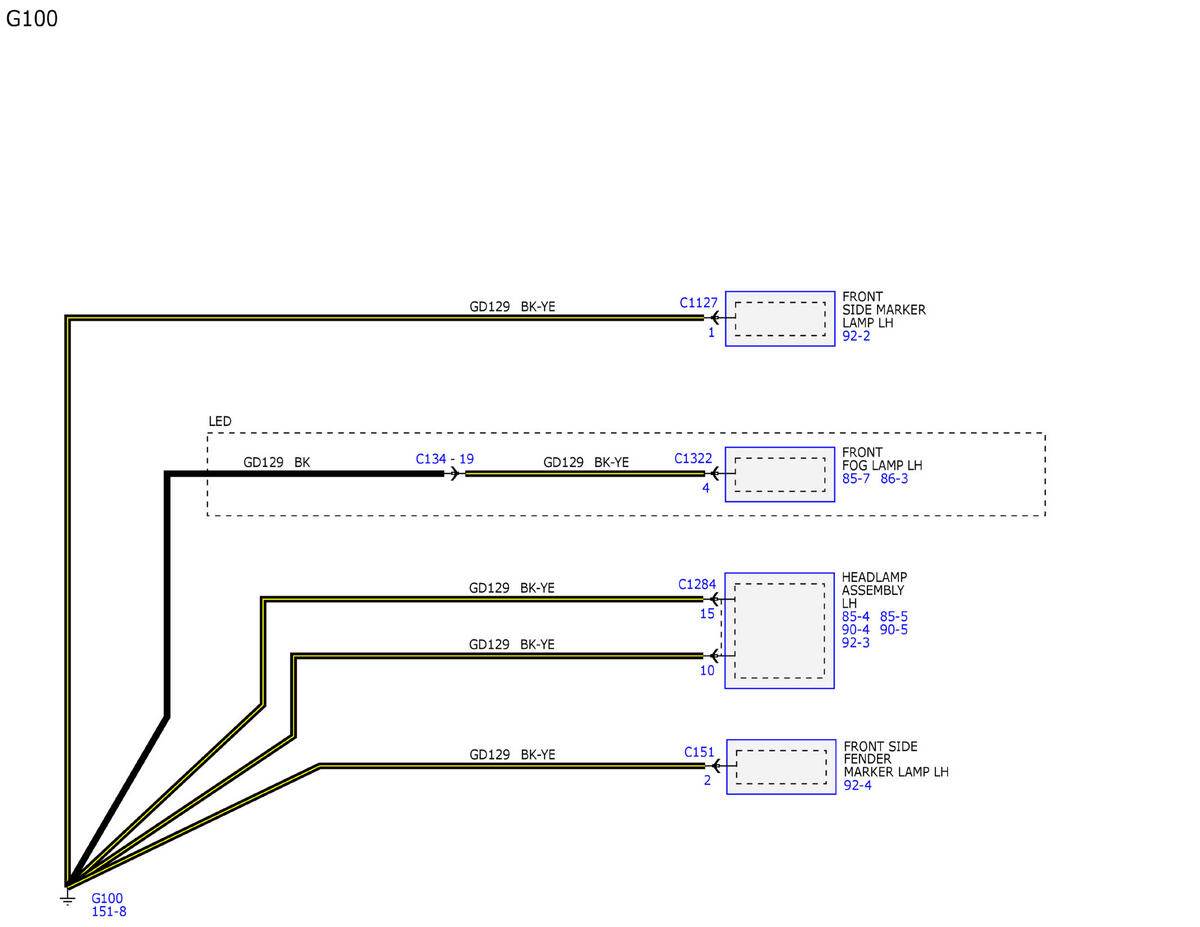

GFDWR225609

Courtesy of FORD MOTOR COMPANY

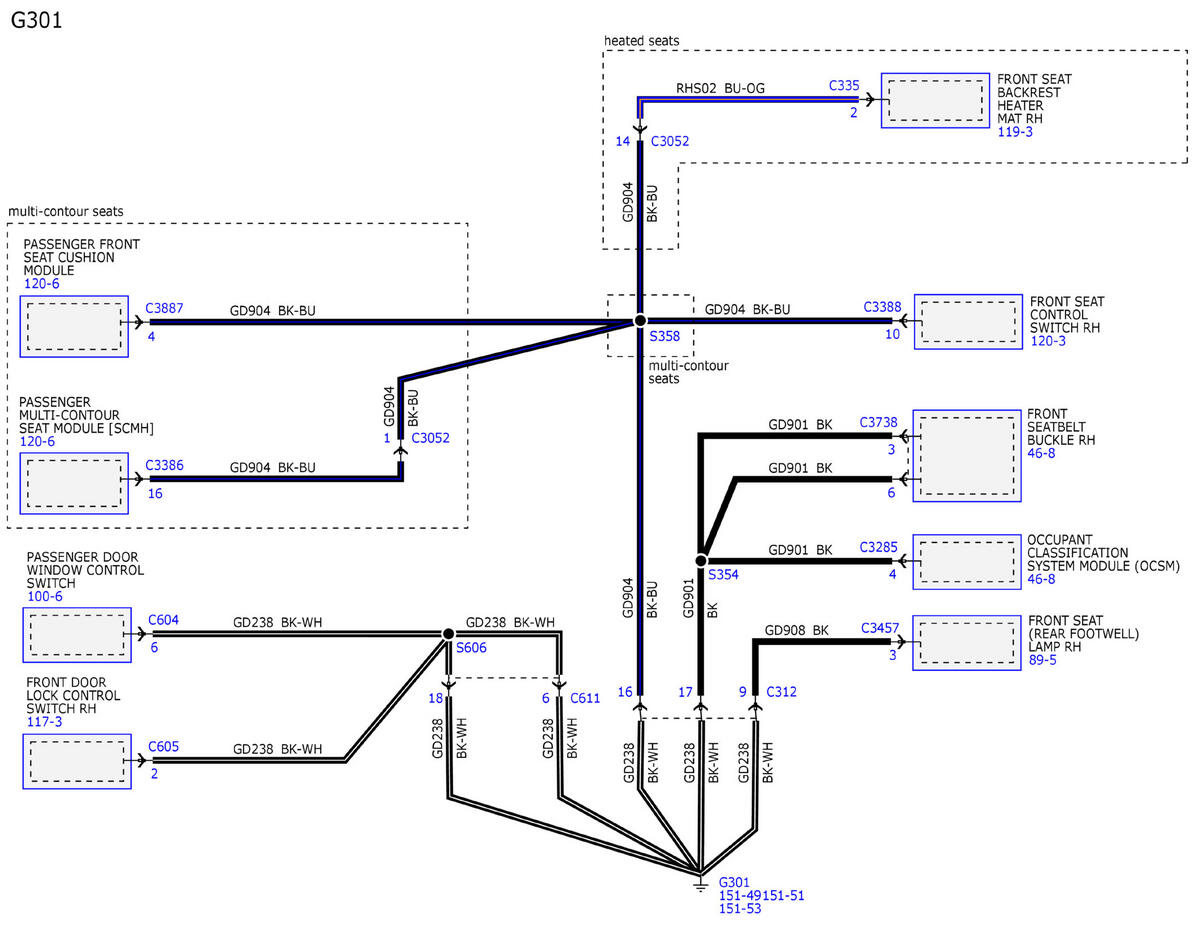

GFDWR225610

Courtesy of FORD MOTOR COMPANY

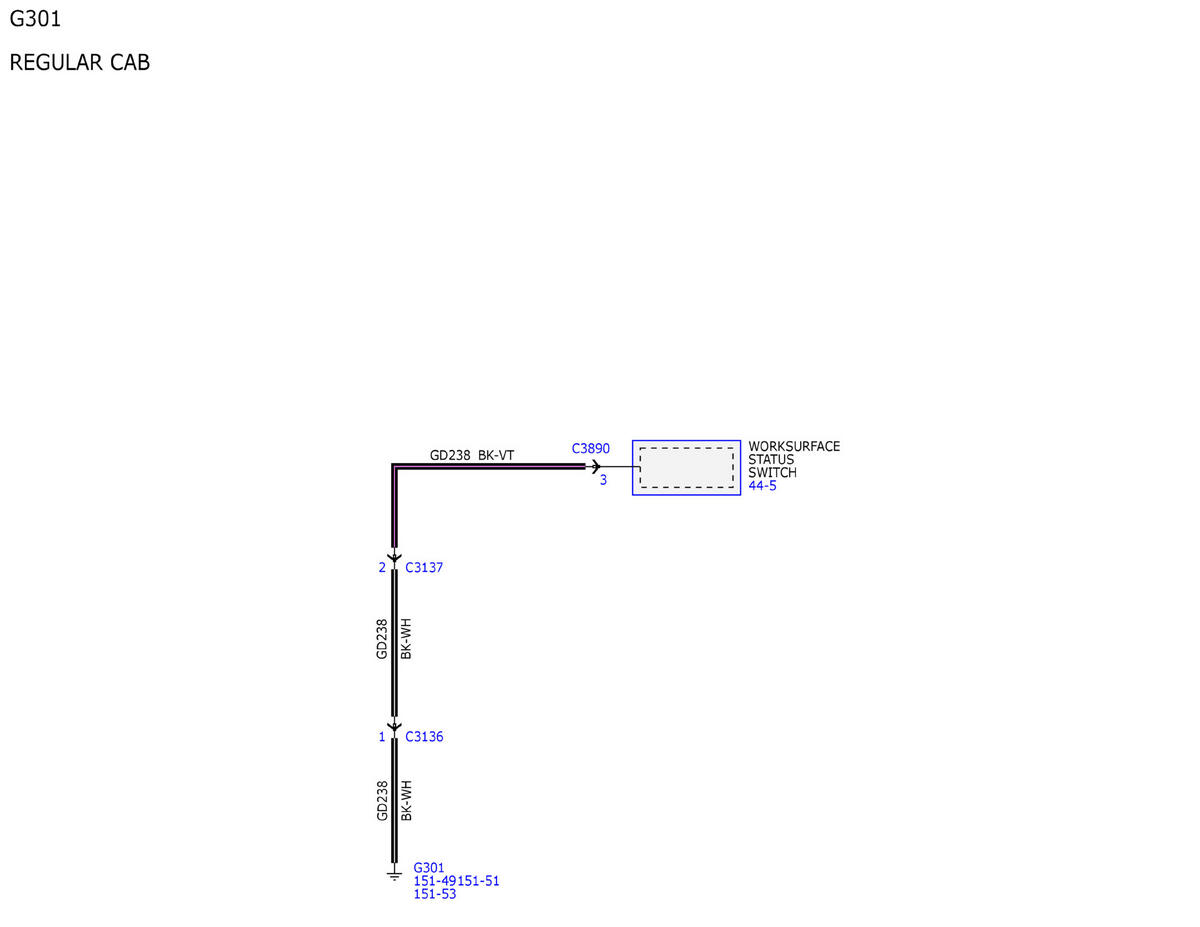

GFDWR225611

Courtesy of FORD MOTOR COMPANY

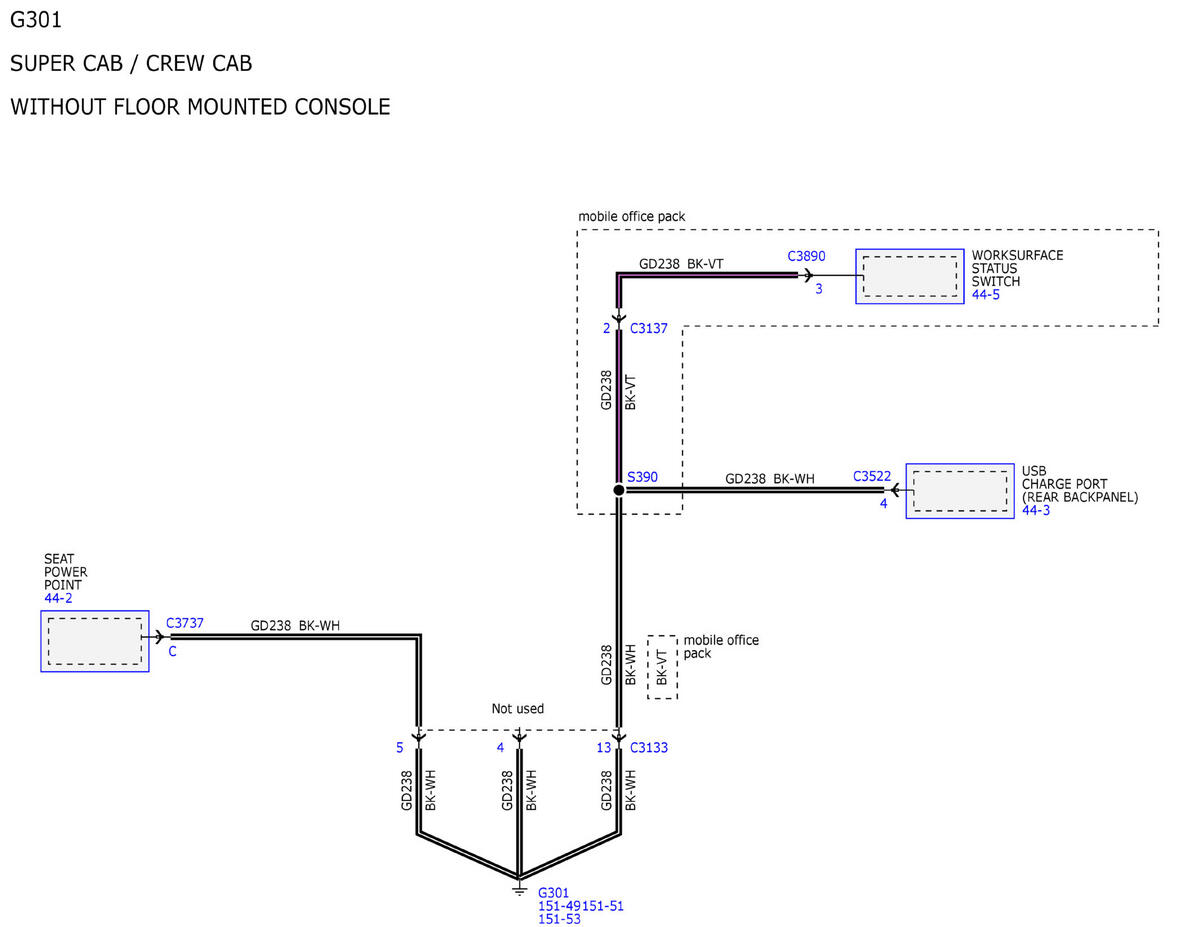

GFDWR225612

Courtesy of FORD MOTOR COMPANY

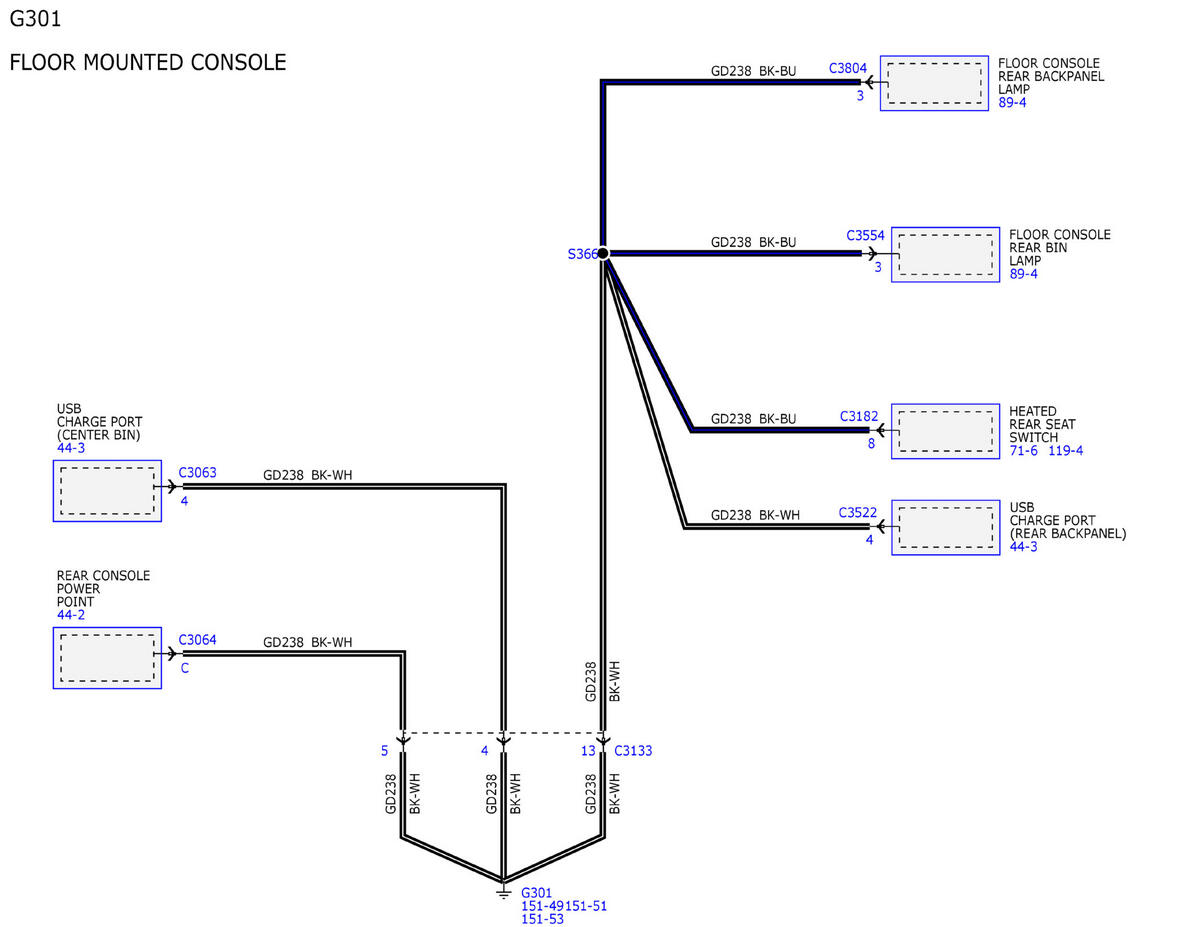

GFDWR225613

Courtesy of FORD MOTOR COMPANY

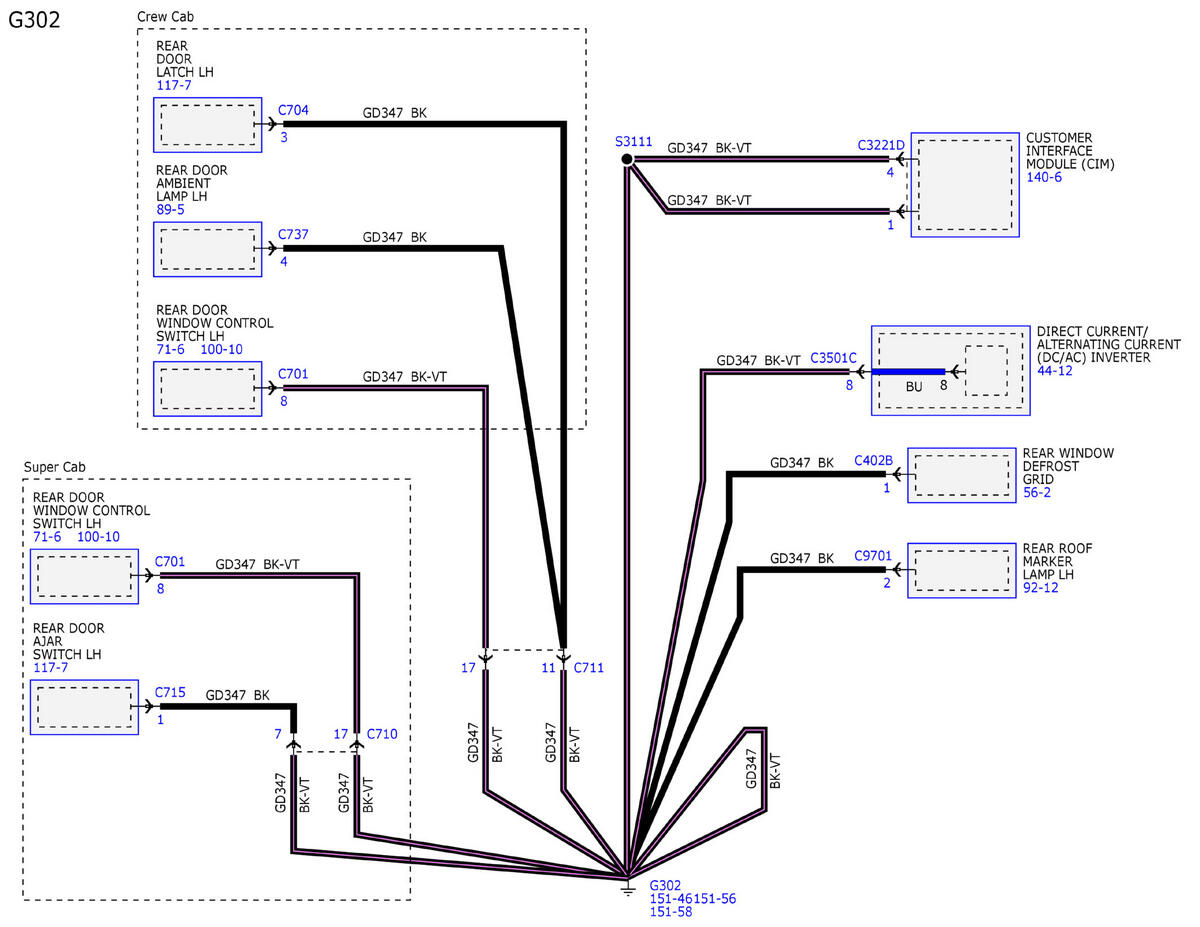

GFDWR225614

Courtesy of FORD MOTOR COMPANY

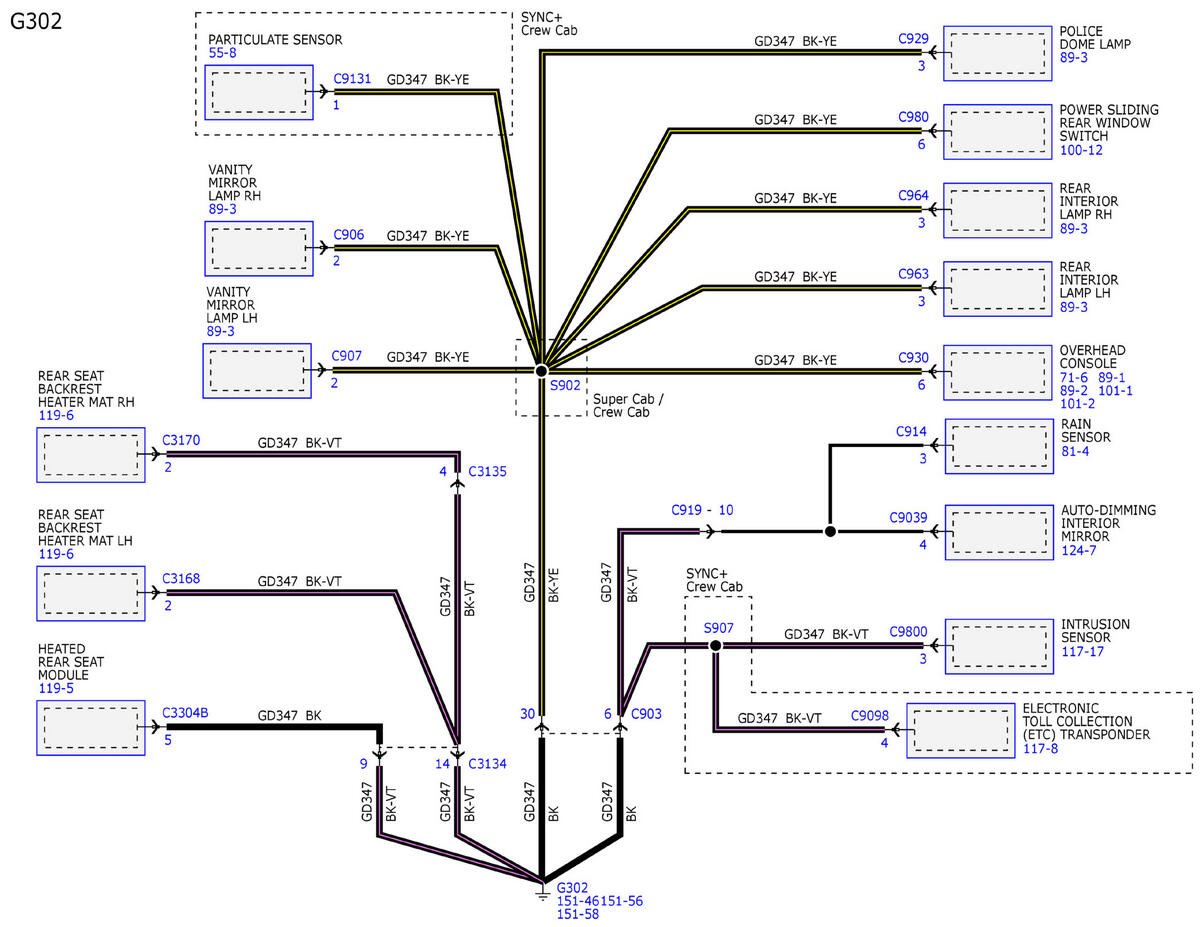

GFDWR225615

Courtesy of FORD MOTOR COMPANY

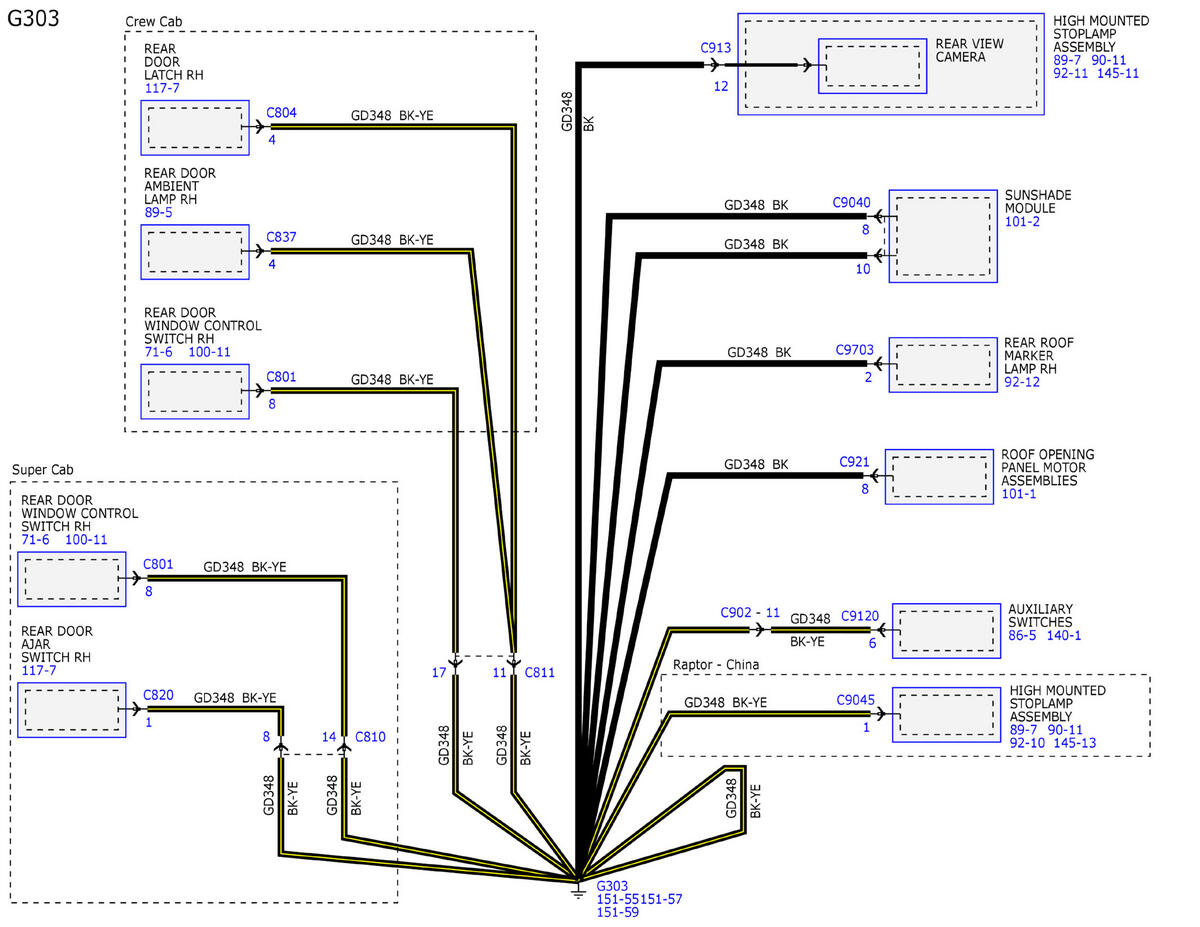

GFDWR225616

Courtesy of FORD MOTOR COMPANY

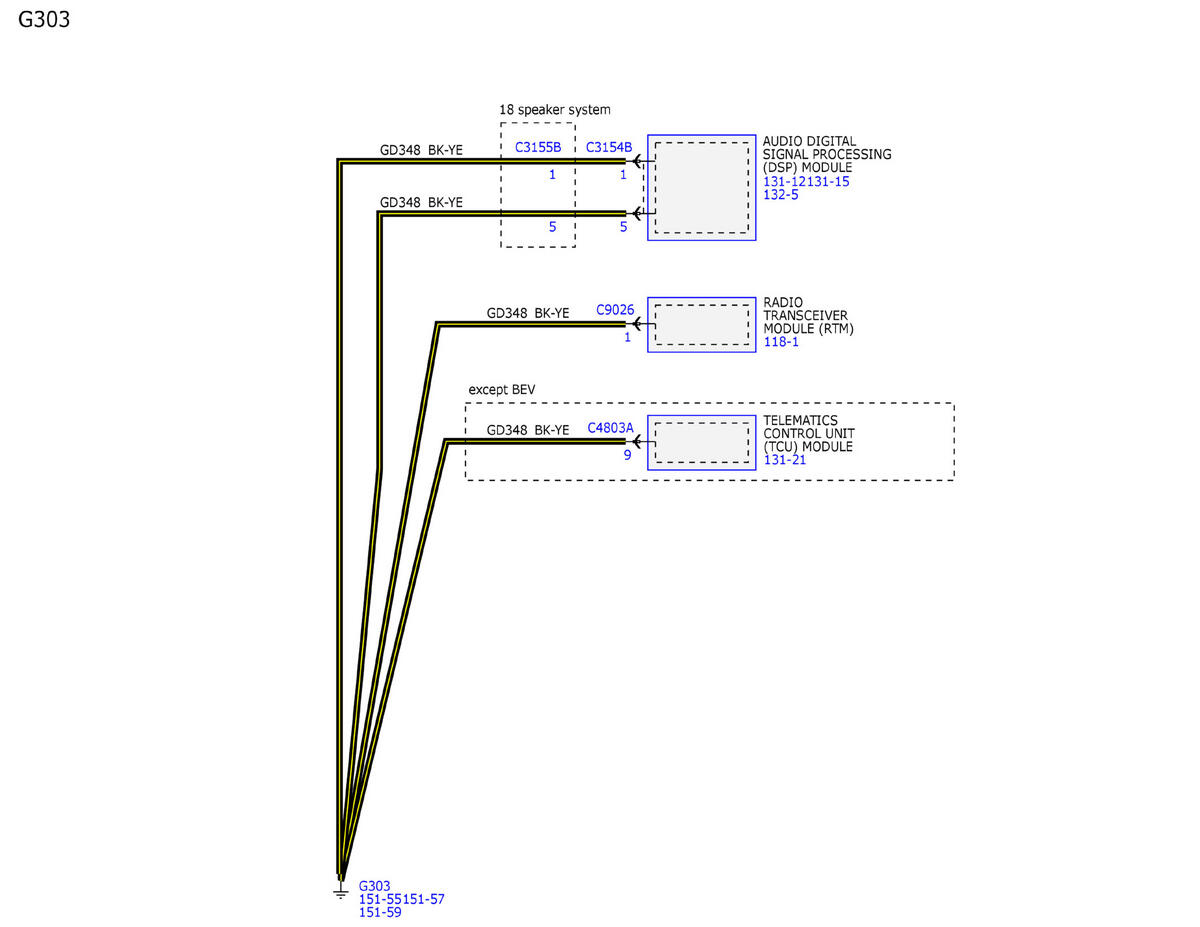

GFDWR225617

Courtesy of FORD MOTOR COMPANY

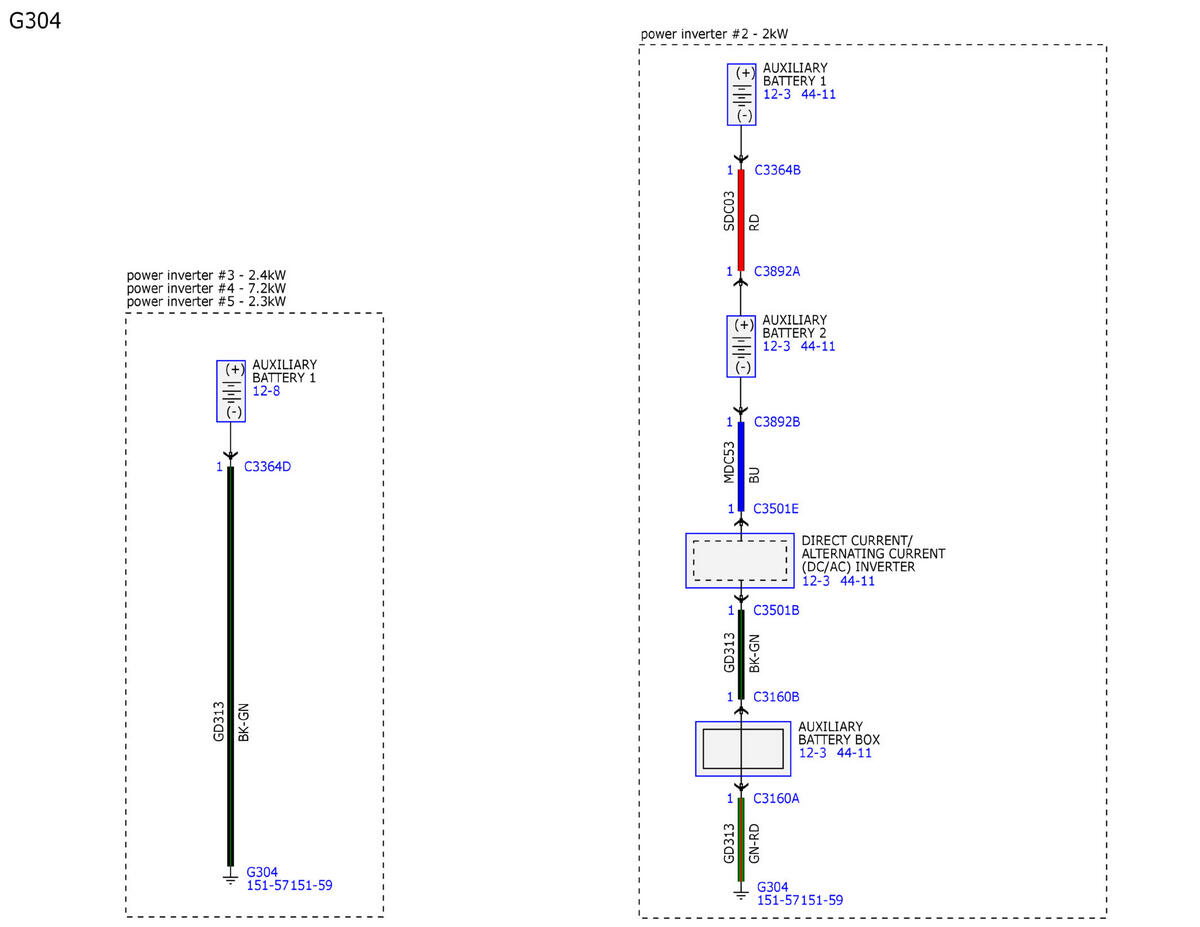

GFDWR225618

Courtesy of FORD MOTOR COMPANY

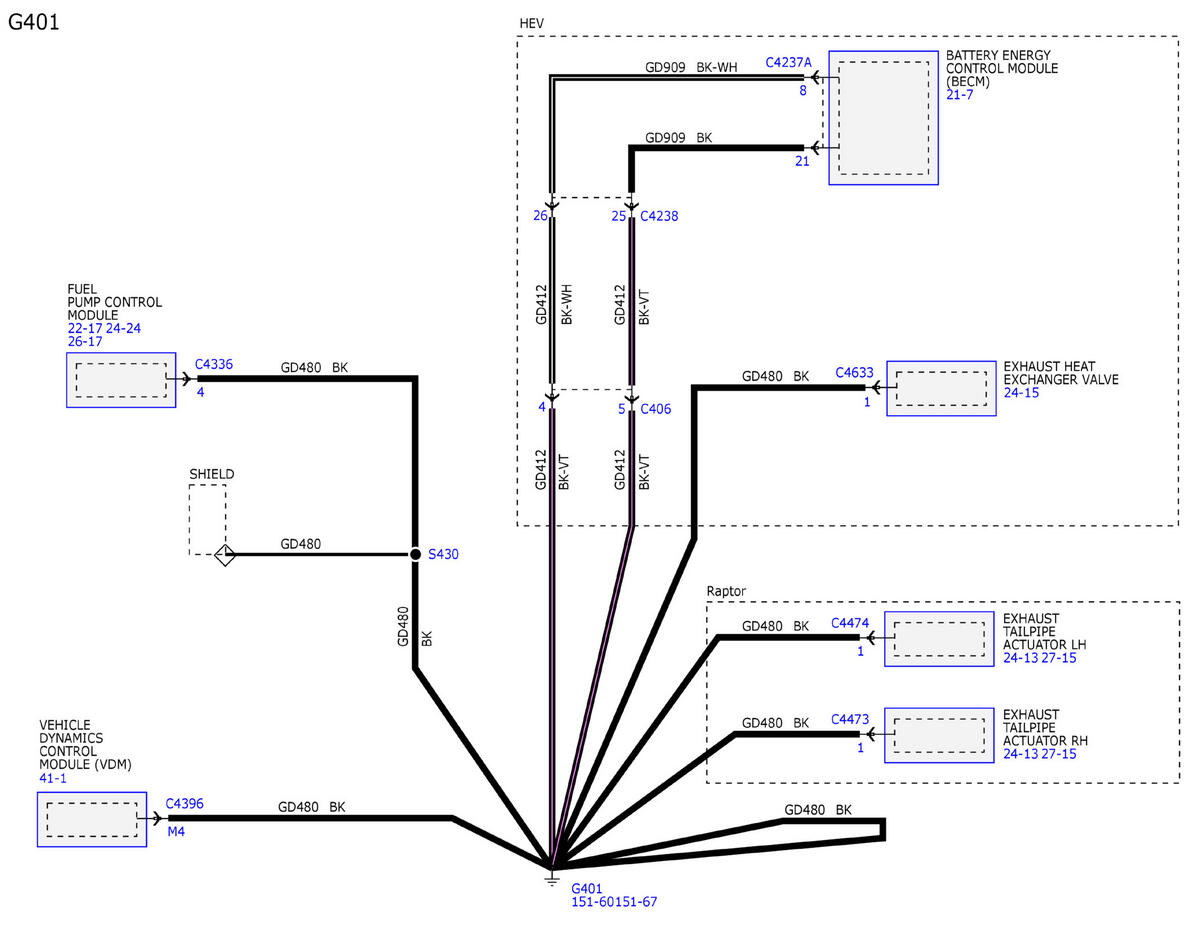

GFDWR225619

Courtesy of FORD MOTOR COMPANY

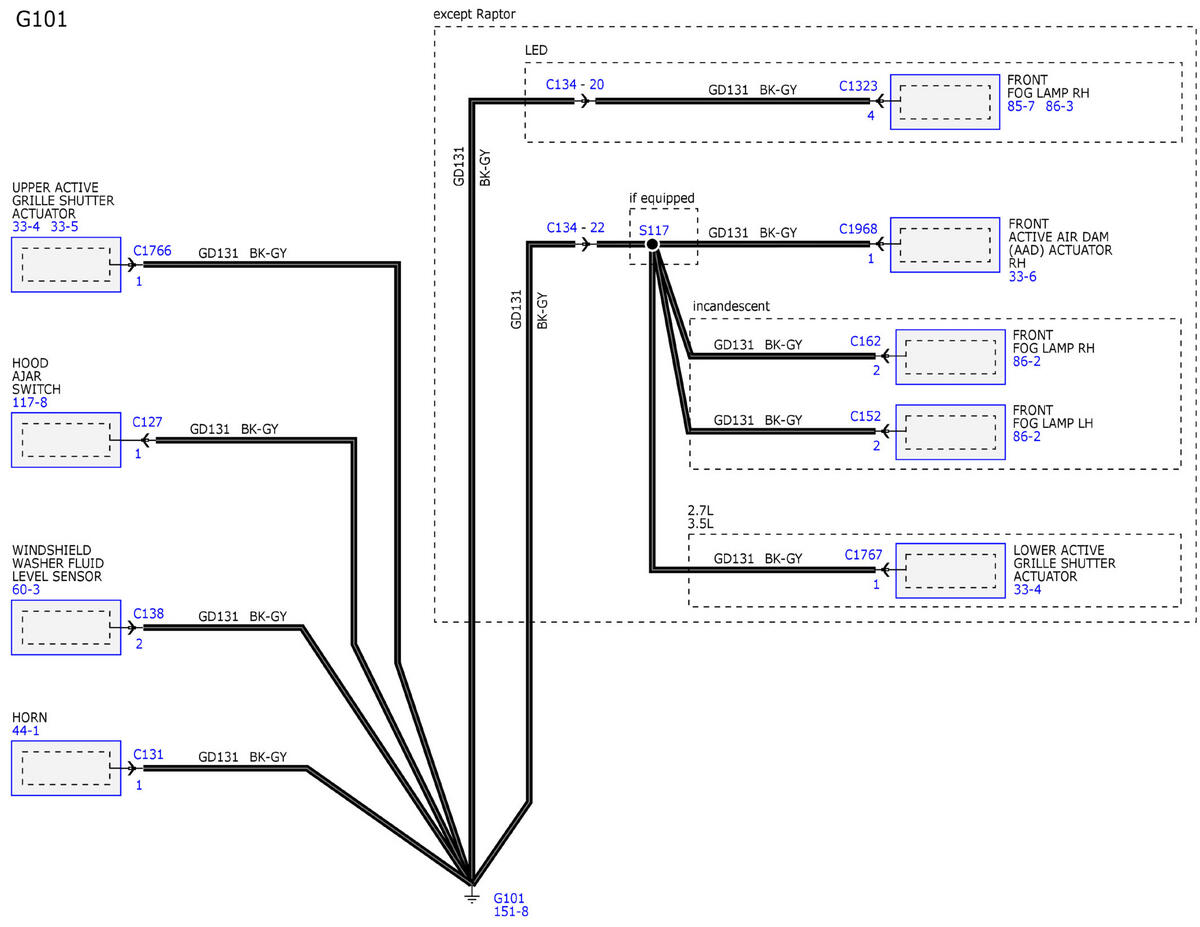

GFDWR225620

Courtesy of FORD MOTOR COMPANY

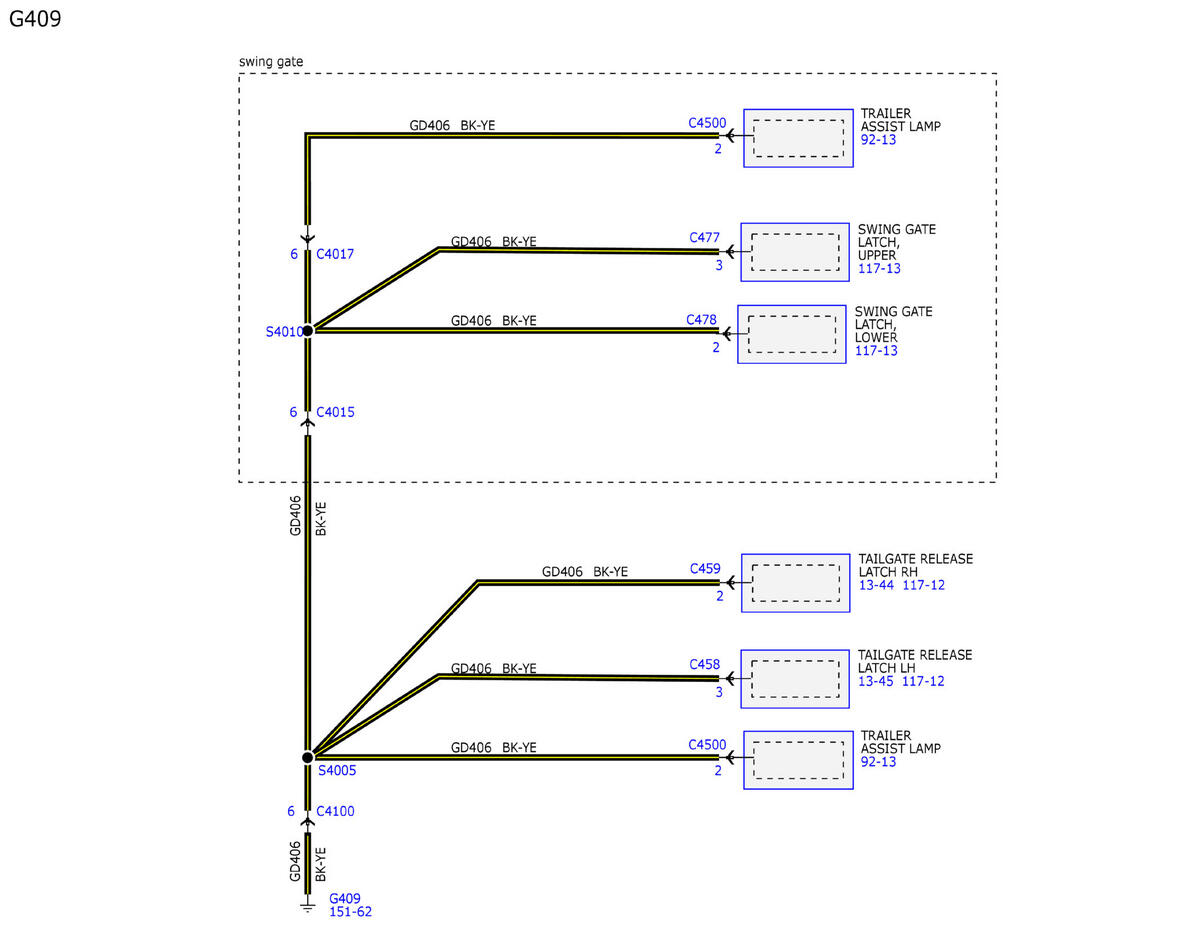

GFDWR225621

Courtesy of FORD MOTOR COMPANY

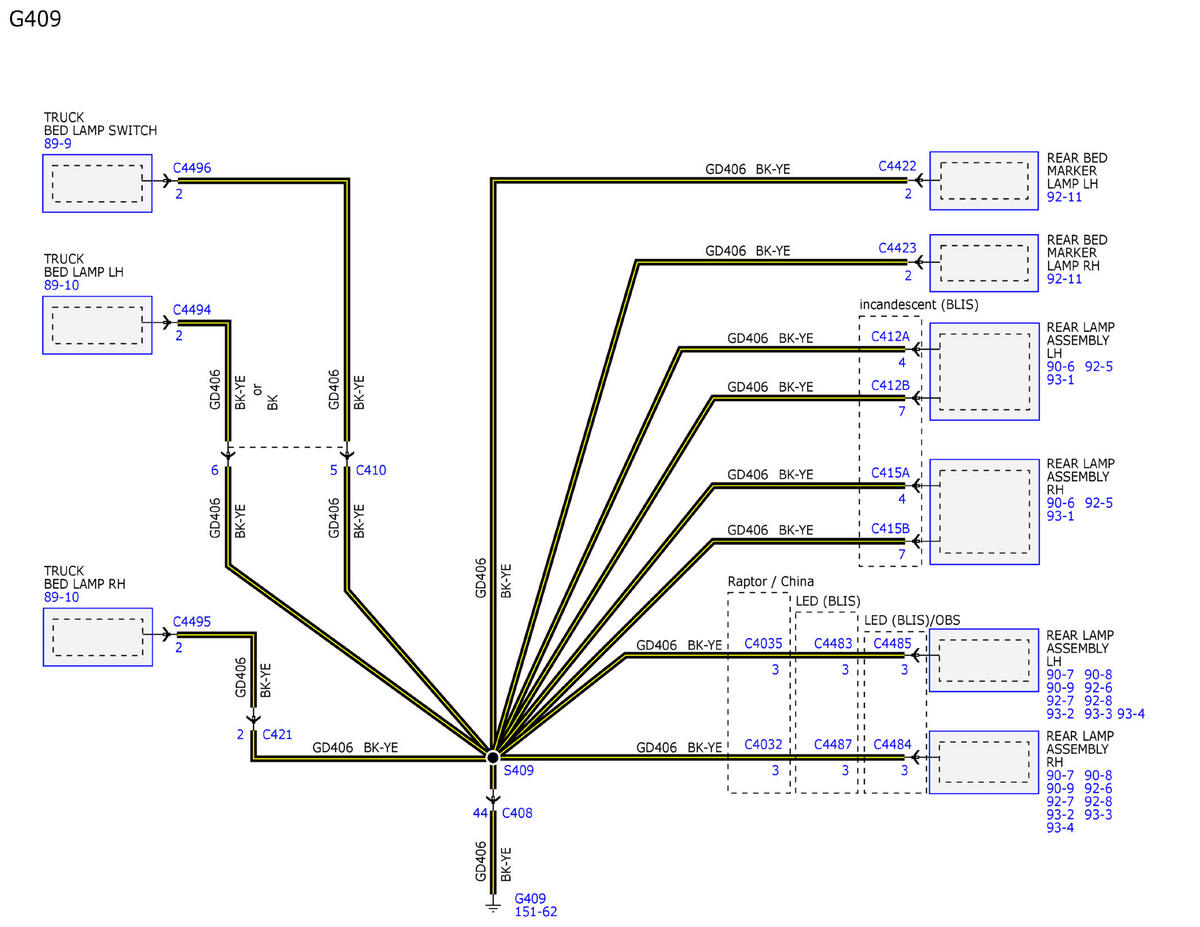

GFDWR225622

Courtesy of FORD MOTOR COMPANY

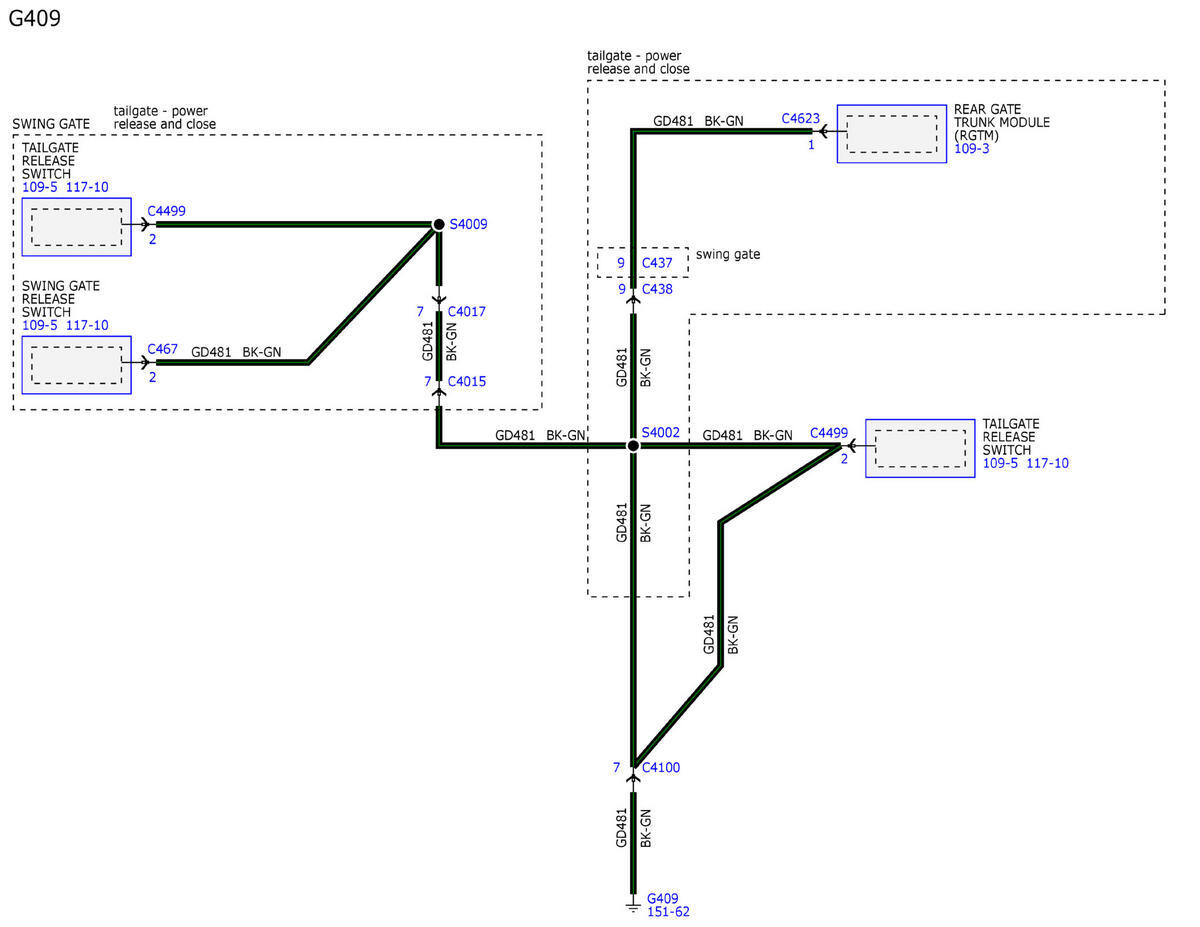

GFDWR225623

Courtesy of FORD MOTOR COMPANY

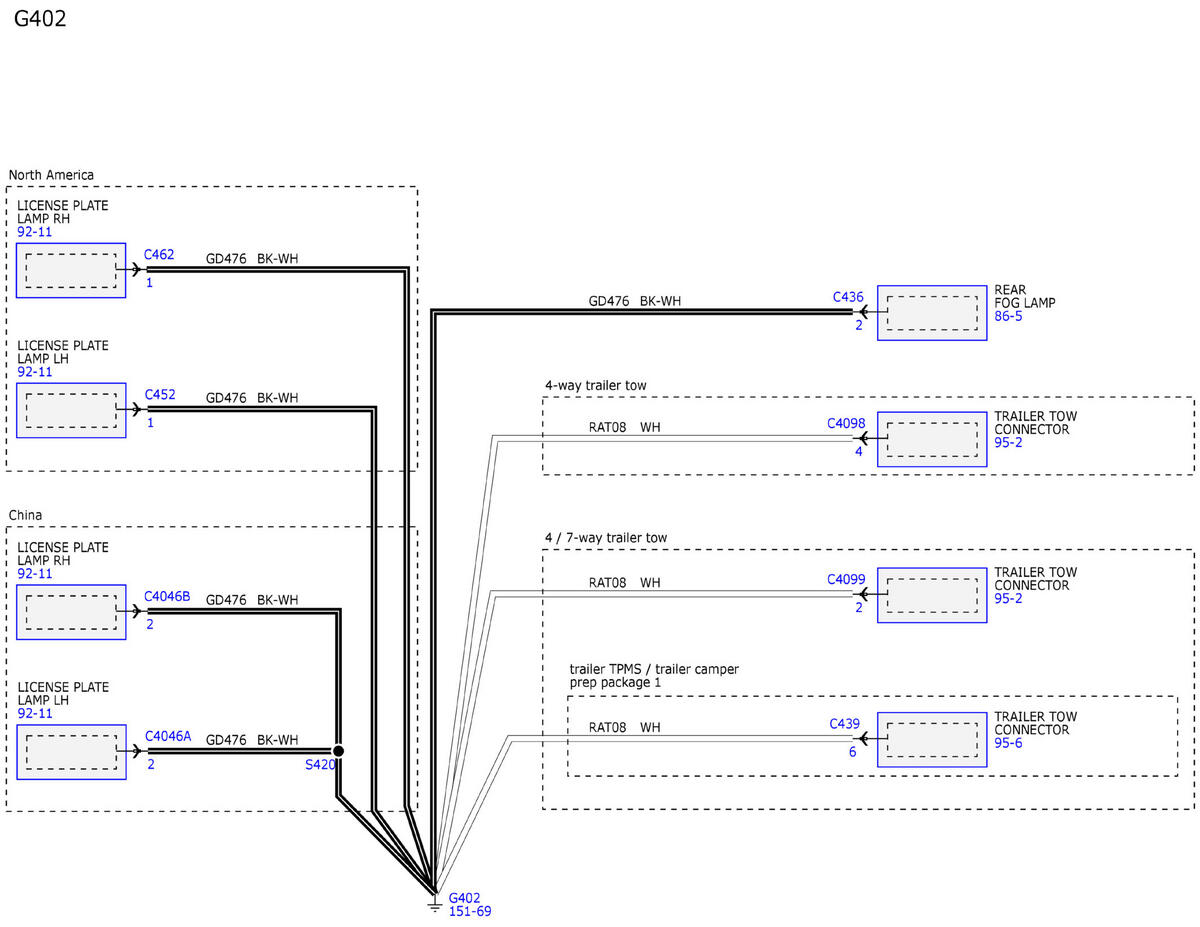

GFDWR225624

Courtesy of FORD MOTOR COMPANY

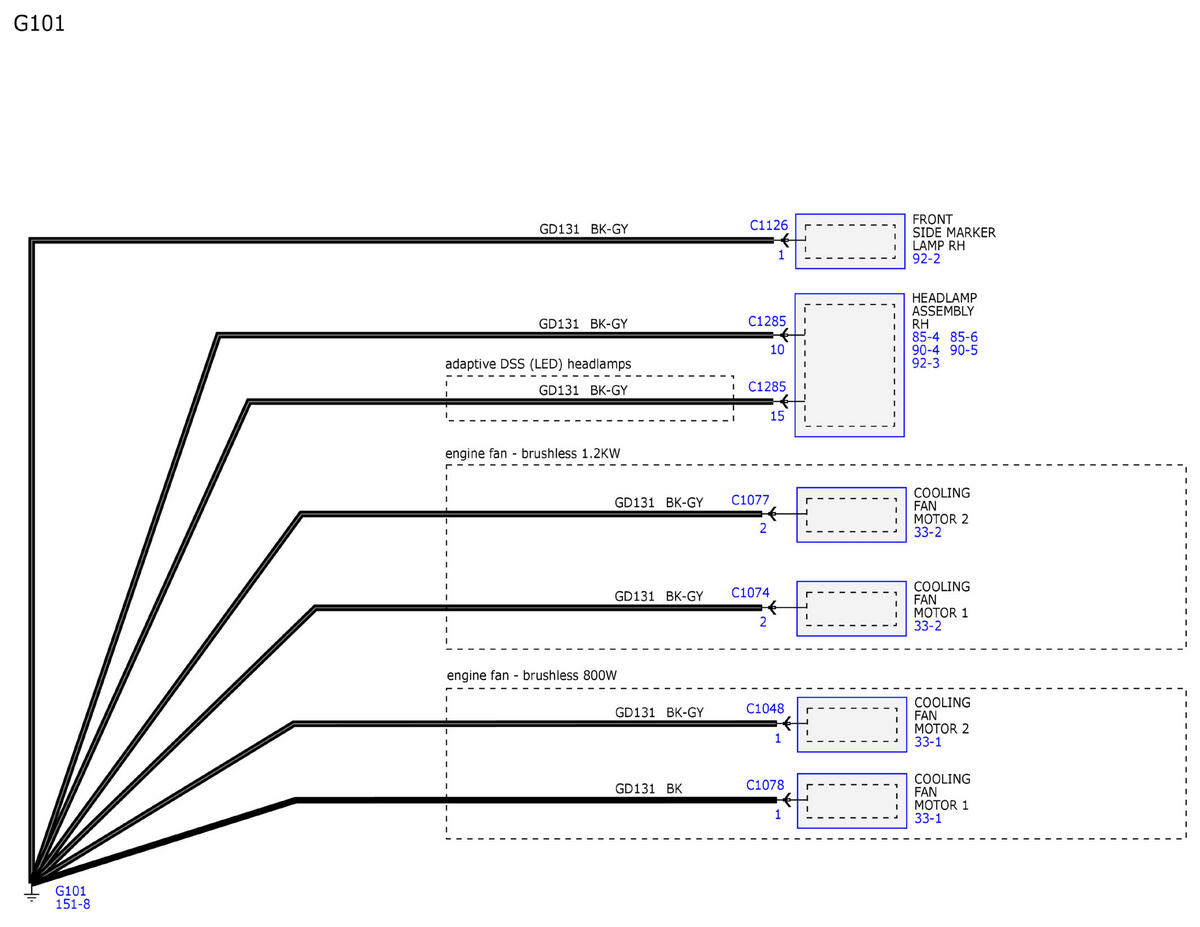

GFDWR225625

Courtesy of FORD MOTOR COMPANY

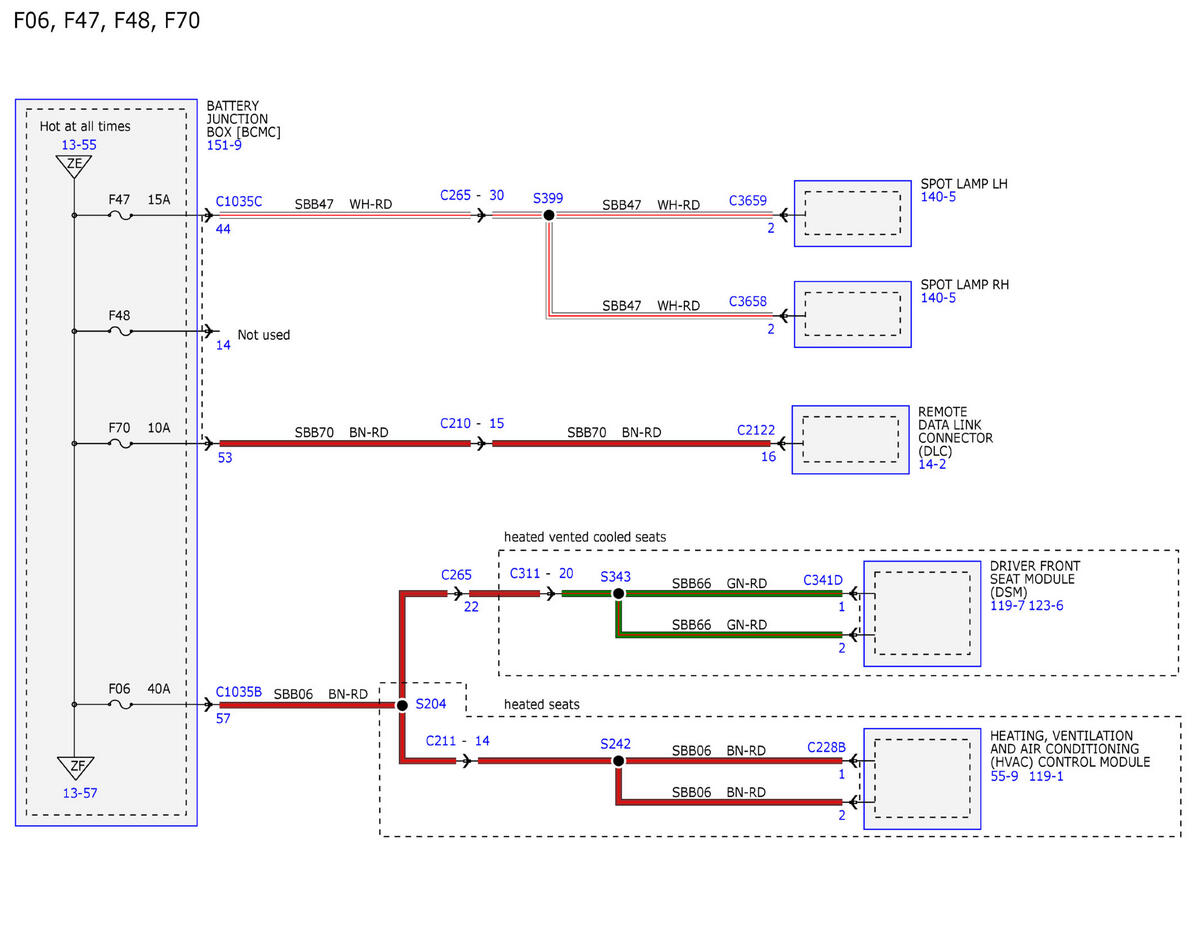

GFDWR225626

Courtesy of FORD MOTOR COMPANY

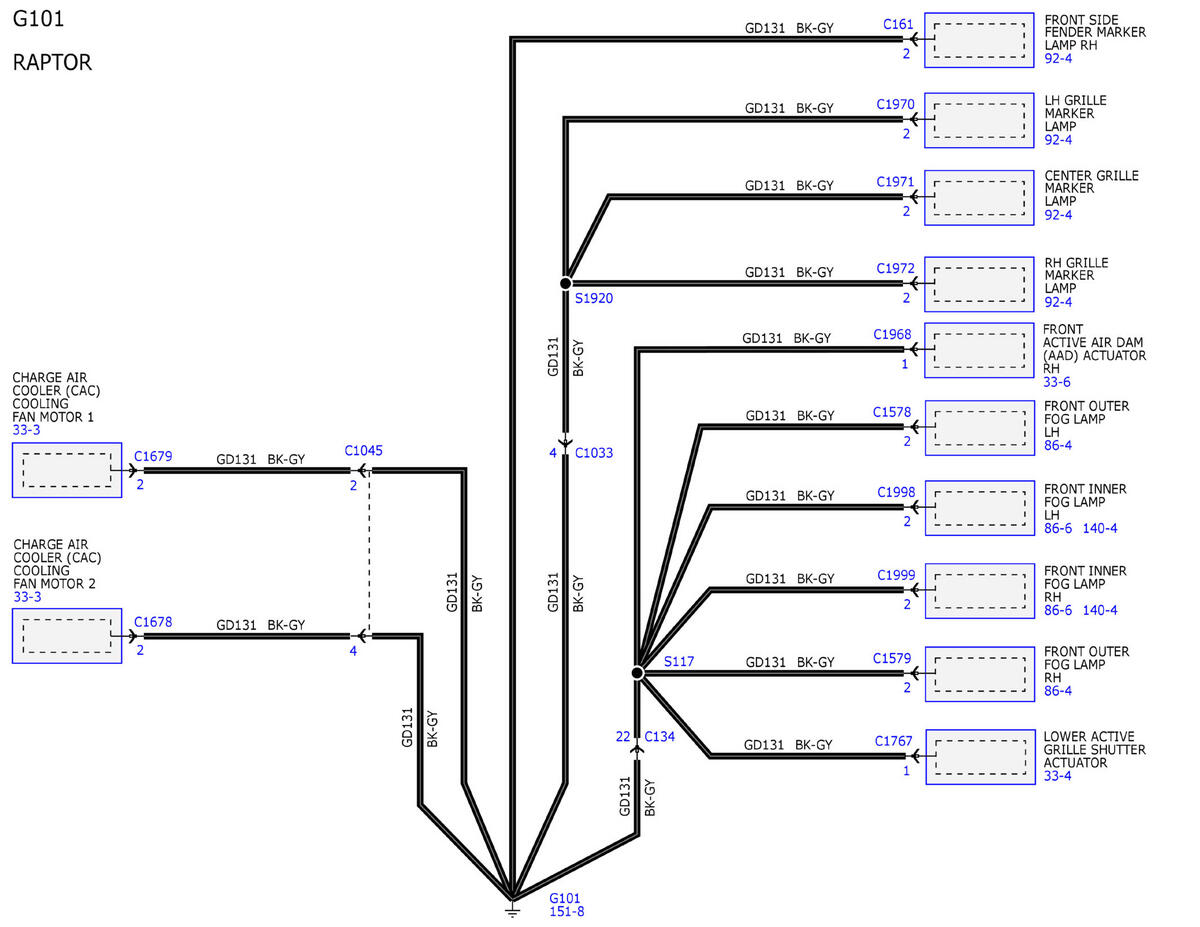

GFDWR225627

Courtesy of FORD MOTOR COMPANY

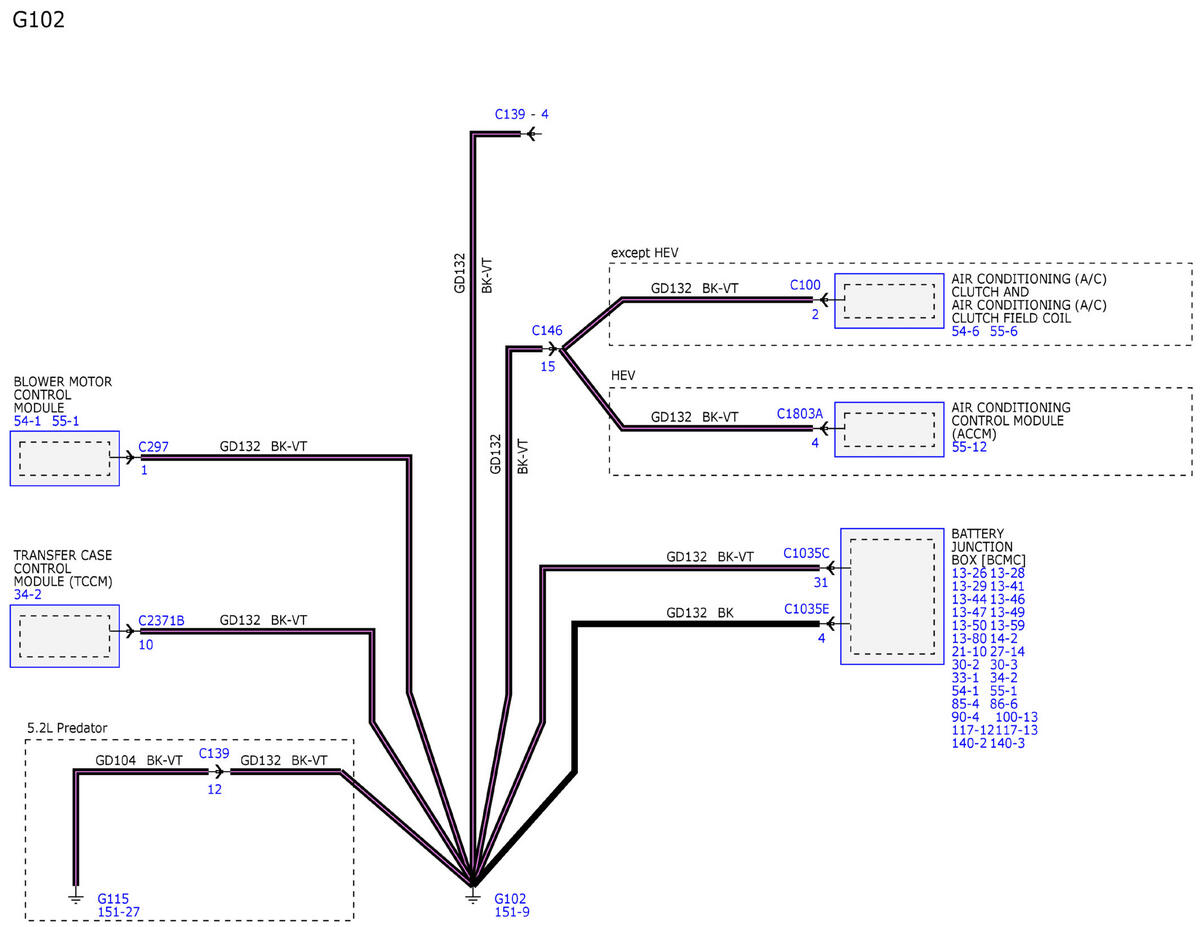

GFDWR225628

Courtesy of FORD MOTOR COMPANY

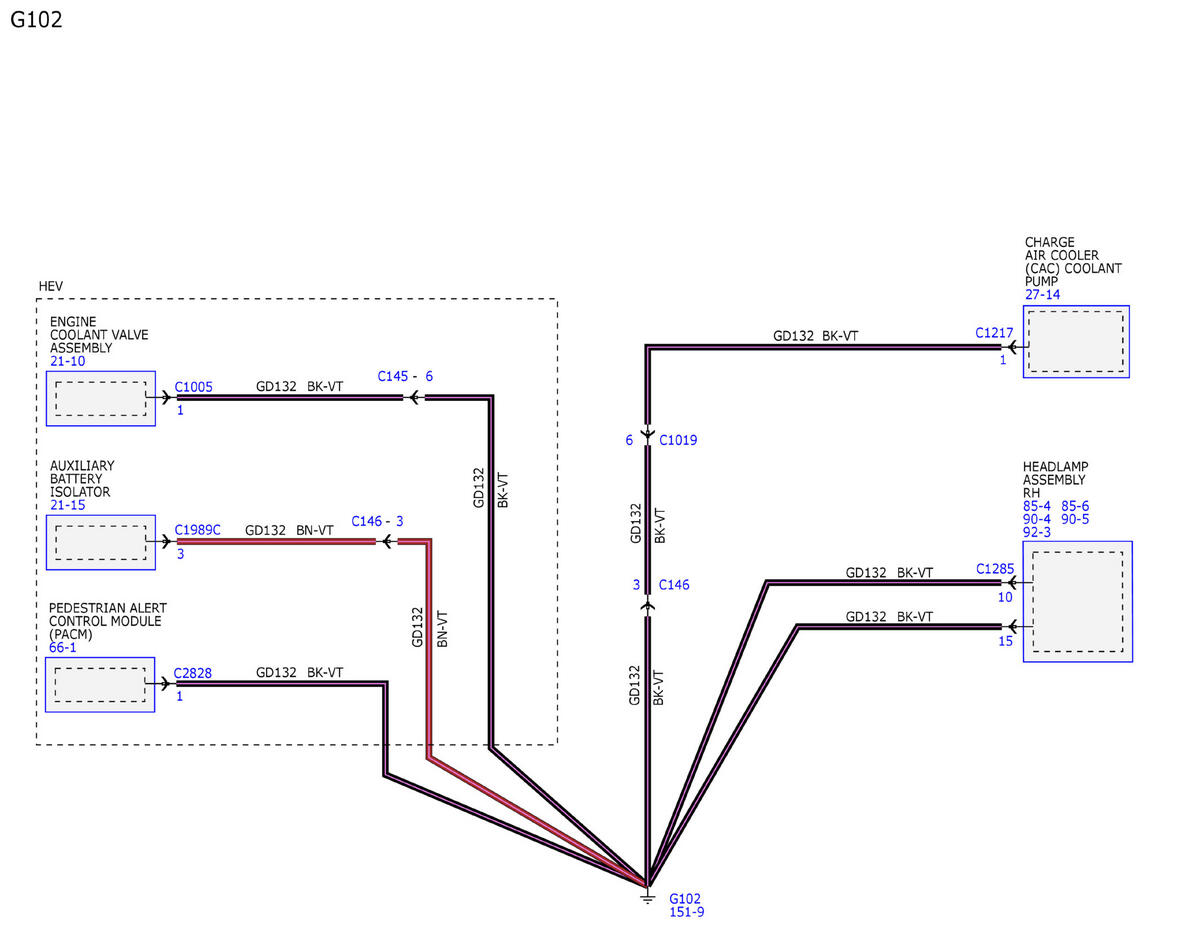

GFDWR225629

Courtesy of FORD MOTOR COMPANY

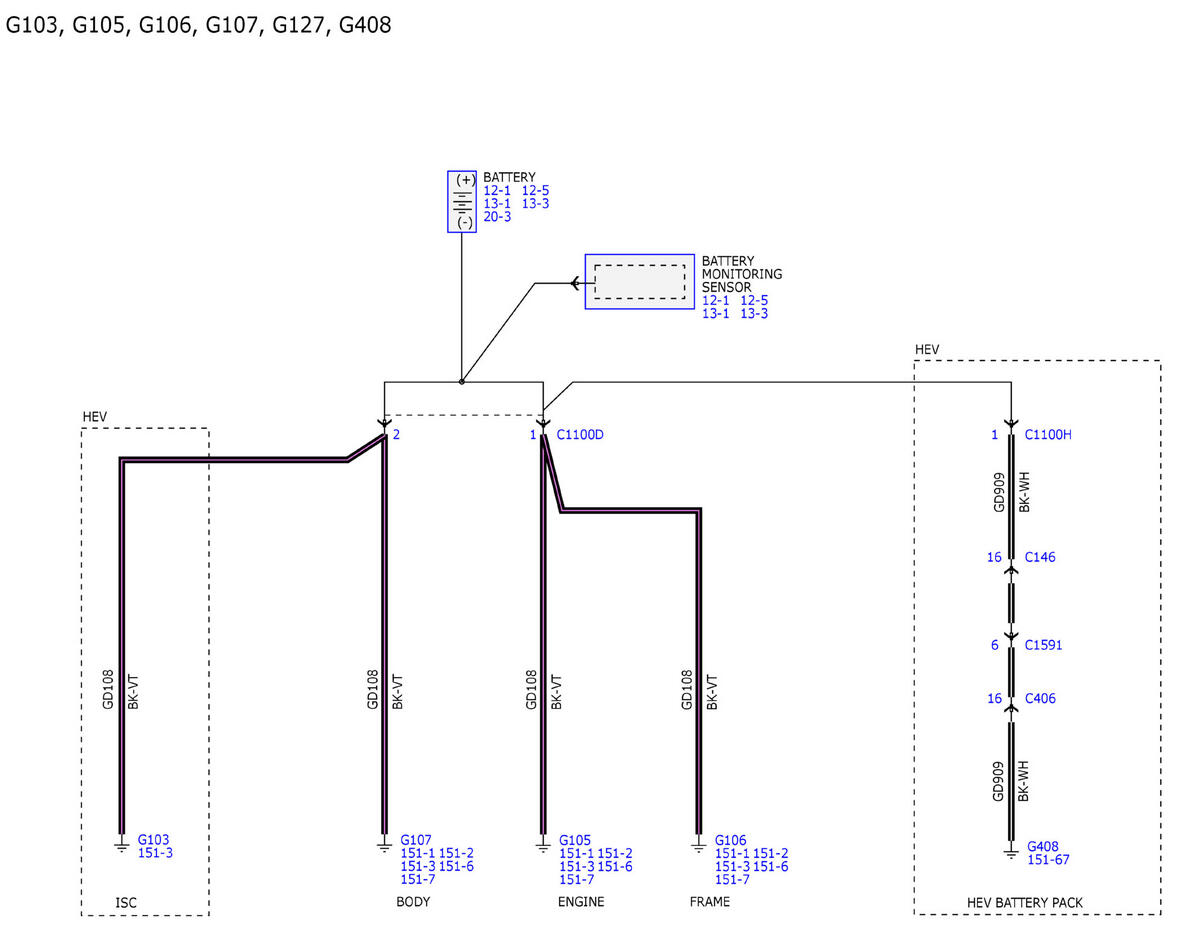

GFDWR225630

Courtesy of FORD MOTOR COMPANY
