Windshield Washer Fluid Level Sensor: Removal
WARNING: This page is about a different car, the 2023 Ford F-150 Lightning and 2023 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Siphon the windshield washer fluid out.

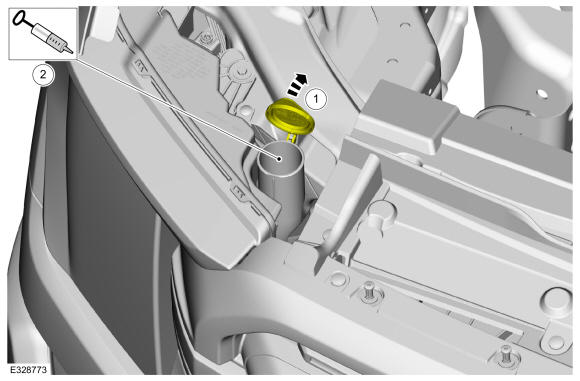

- Open the windshield washer fluid reservoir cap.
- Siphon the windshield washer fluid.Use the General Equipment: Fluid Suction GunUse the General Equipment: Fluid Container
- Remove the RH fender splash shield. Refer to: Fender Splash Shield
.

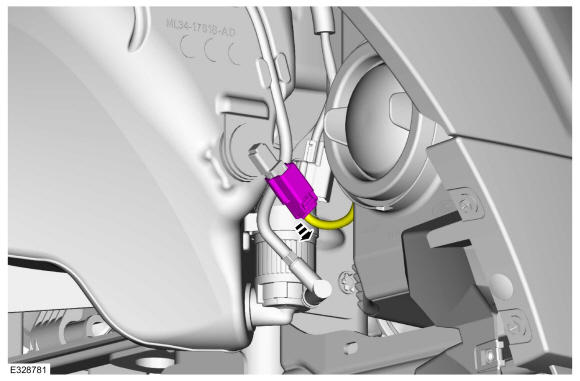

- Disconnect the windshield washer fluid level sensor electrical connector.
-
NOTE: Be prepared to collect escaping fluid.

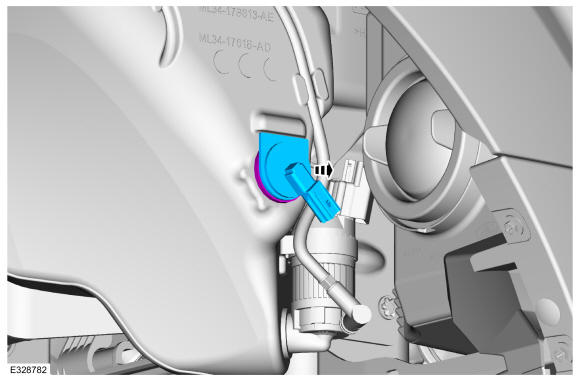

Remove the windshield washer fluid level sensor.Use the General Equipment: Fluid Container
