Hood Alignment

WARNING: This page is about a different car, the 2023 Ford F-150 Lightning and 2023 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Inspection

NOTE: Removal steps in this procedure may contain installation details.

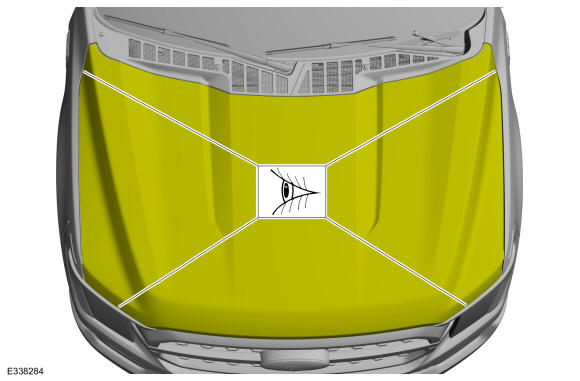

Inspect the hood-to-body dimensions.

Courtesy of FORD MOTOR COMPANY

All alignments
Remove the hood latch. Refer to: Hood Latch .
Hood fore and aft, left and right alignments

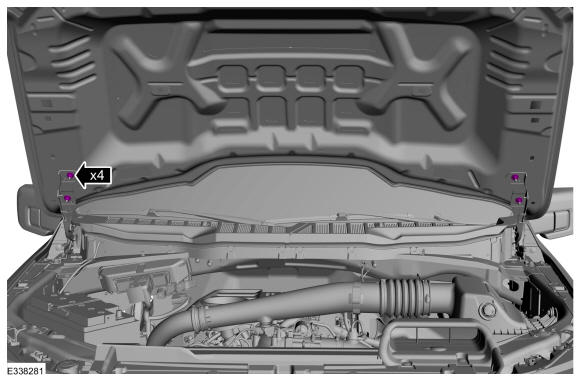

Loosen the nuts enough to permit movement of the hood.

Courtesy of FORD MOTOR COMPANY

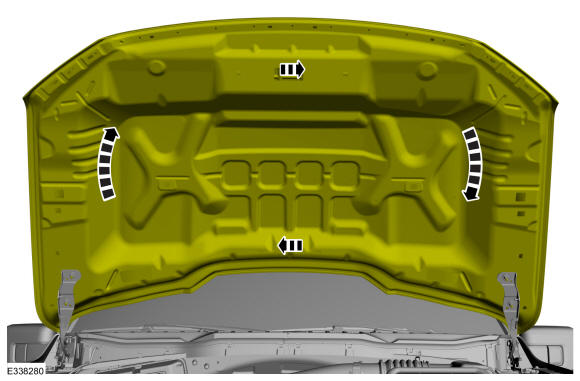

Adjust the hood as required.

Courtesy of FORD MOTOR COMPANY
Tighten the nuts.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

Hood front up and down alignments

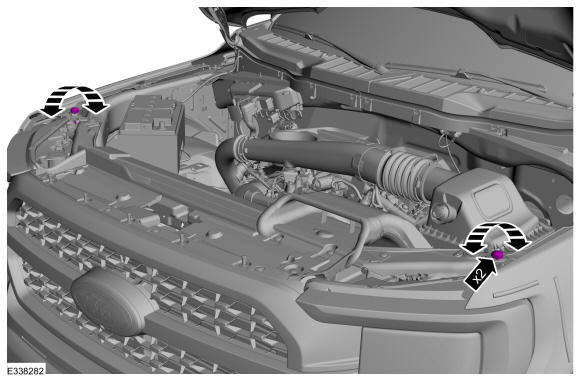

Adjust the bump stop rubbers.

Courtesy of FORD MOTOR COMPANY

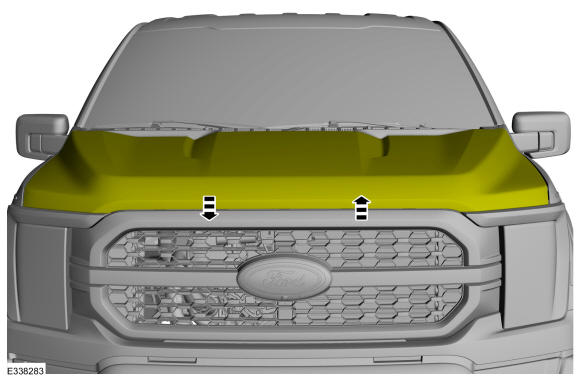

Adjust the hood as required.

Courtesy of FORD MOTOR COMPANY

All alignments
Inspect the body-to-hood dimensions.

Courtesy of FORD MOTOR COMPANY
Install the removed components.
