Vertical Alignment
WARNING: This page is about a different car, the 2023 Ford F-150 Lightning and 2023 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
In order to align the CCM (cruise control module), the CCM (cruise control module) cover must be removed to access the sensor and the vehicle must be in a wheel alignment bay station so that the vehicle is level.
NOTE:
Damage to the CCM (cruise control module) bracket may affect correct alignment. When aligning the CCM (cruise control module), inspect the CCM (cruise control module) bracket for damage and repair as necessary before carrying out the alignment procedure.
NOTE:
Make sure the vehicle is unloaded of all external cargo before performing the cruise control radar alignment procedure.
NOTE:
Verify that the CCM (cruise control module) is free of ice and snow prior to performing the cruise control radar alignment procedure.
- Place the vehicle on a wheel alignment bay station.

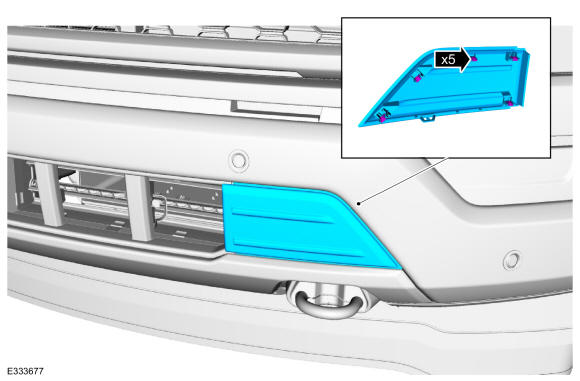

- Release the clips and remove the CCM front bumper trim cover.

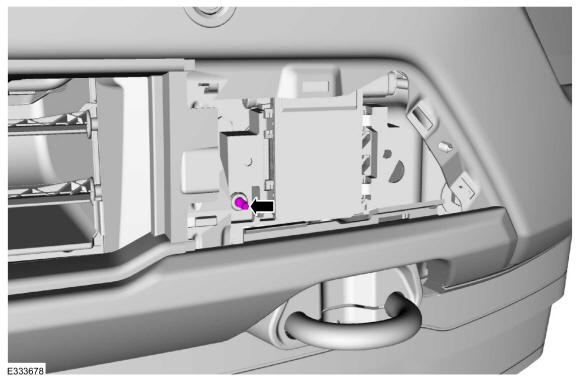

- Locate the CCM alignment screw.

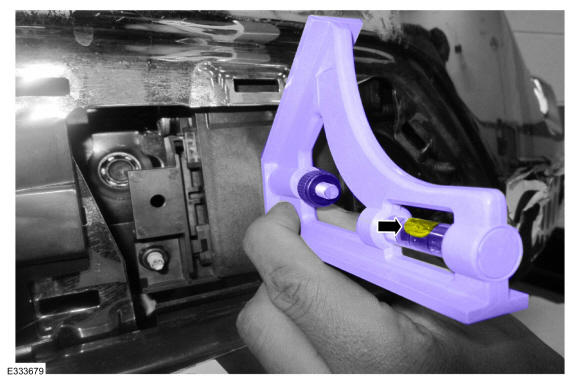

- Place a combination square level on the face of the CCM and check the alignment.NOTE: Measurement must be taken from the non-raised side of the CCM (cruise control module).

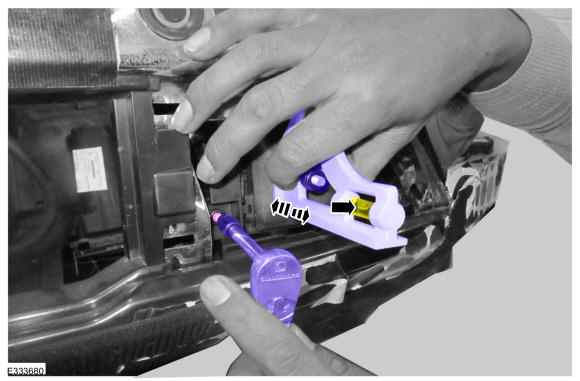

- Keeping the combination square level on the face of the CCM, adjust the pitch by adjusting the screw until the CCM is vertical and level.NOTE: Measurement must be taken from the non-raised side of the CCM (cruise control module).
- Install the CCM front bumper trim cover.
