Differential Fluid Level Check
WARNING: This page is about a different car, the 2023 Ford F-150 Lightning and 2023 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| Fluid Suction Gun |
|---|
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear LubricantXY-75W85-QL | WSS-M2C942-A |
Check
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: If equipped.

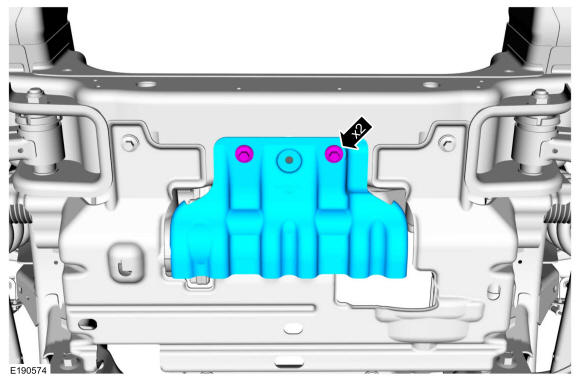

Remove the underbody shield bolts and remove the underbody shield.
-
NOTE: If equipped.

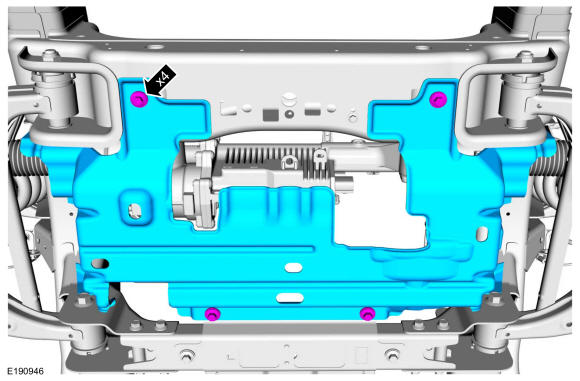

Remove the underbody shield bolts, the pin type retainers and remove the underbody shield.
-
NOTE: If equipped.

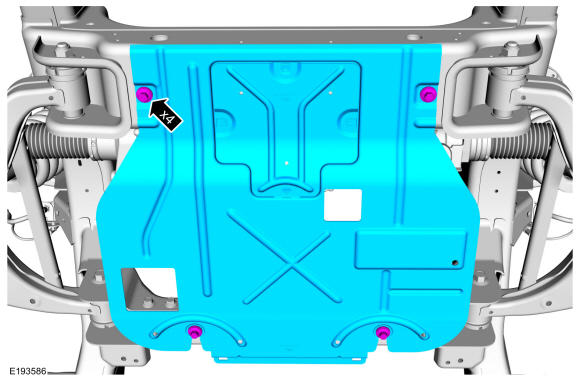

Remove the underbody shield bolts and remove the underbody shield.

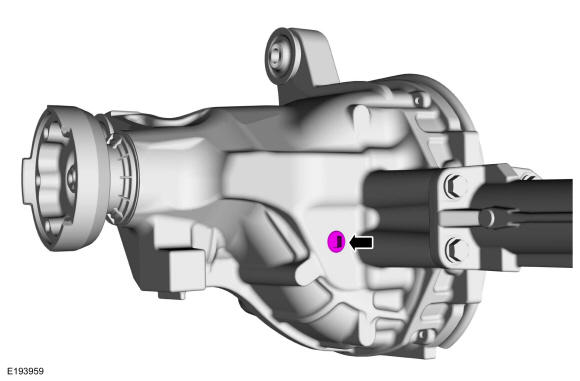

- Remove the front differential fill plug.

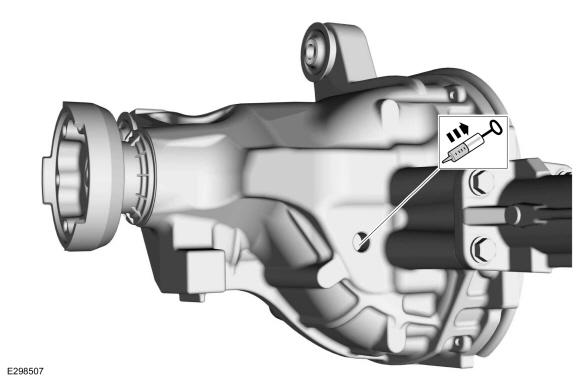

- If draining is needed.Using a general equipment, remove as much fluid as possible from the PTU.Use the General Equipment: Fluid Suction Gun

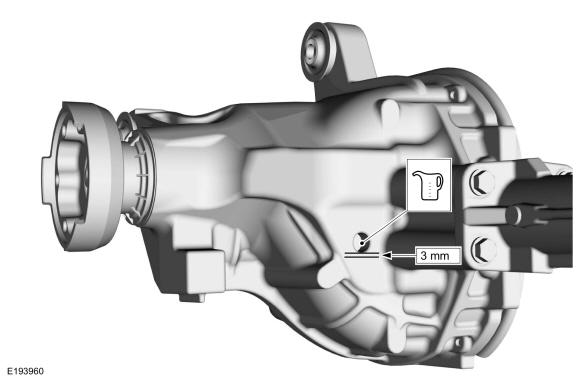

- Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be within 3mm (0.118 in.) from the fluid level fill plug opening. Install the differential fill plug.
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)
- Install the front differential fill plug.
Torque: 18 lb.ft (25 Nm)
-
NOTE: If equipped.
Install the underbody shield and underbody shield bolts.
Torque: 30 lb.ft (40 Nm)
-
NOTE: If equipped.
Install the underbody shield and the underbody shield bolts, or the pin type retainers.
Torque: 30 lb.ft (40 Nm)
-
NOTE: If equipped.
Install the underbody shield and the underbody shield bolts.
Torque: 30 lb.ft (40 Nm)
