Side Obstacle Detection Control Module D (SODCMD): Removal
WARNING: This page is about a different car, the 2022 Ford F-150 Lightning and 2022 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- On both sides. Remove the 2 screws.
Torque: 15 lb.in (1.7 Nm)
- Remove the front bumper upper cover trim panel. Using a flat-blade screwdriver release the locking tabs Use the General Equipment: Flat Headed Screw Driver

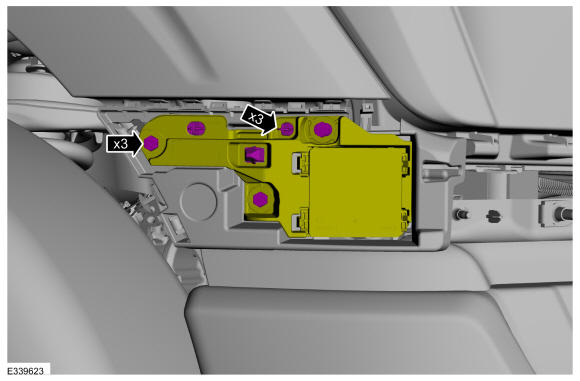

- Remove the screws, release the retainers and position the SODCMD bracket aside.
Torque: 27 lb.in (3 Nm)
-

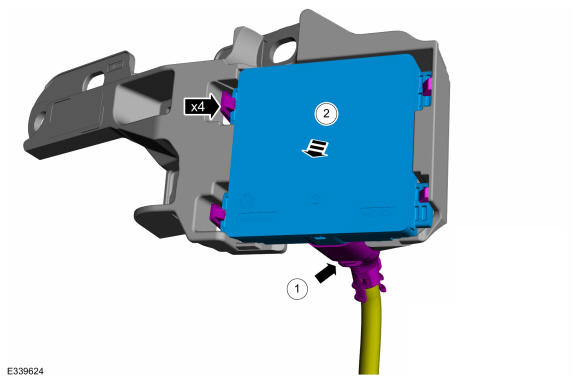

- Disconnect the electrical connector.
- Release the tabs and remove the SODCMD.
