Body Control Module C (BCMC): Removal
WARNING: This page is about a different car, the 2022 Ford F-150 Lightning and 2022 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: If the BCMC (body control module C) did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCMC (body control module C) is being replaced.
Using a diagnostic scan tool, begin the PMI process for the BCMC following the on-screen instructions.
- Disconnect the battery. Refer to: Battery Disconnect and Connect .

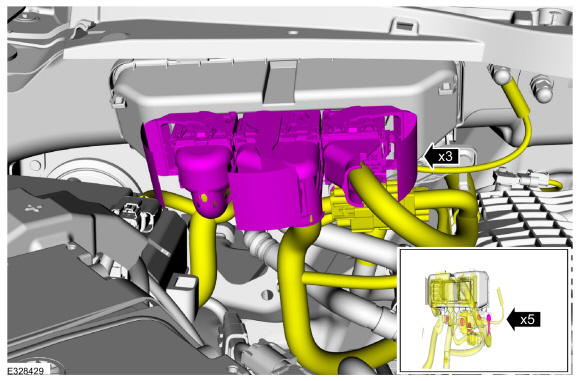

- Disconnect the PCM electrical connectors. Release the harness retainers from the lower PCM cover to position aside the harnesses.

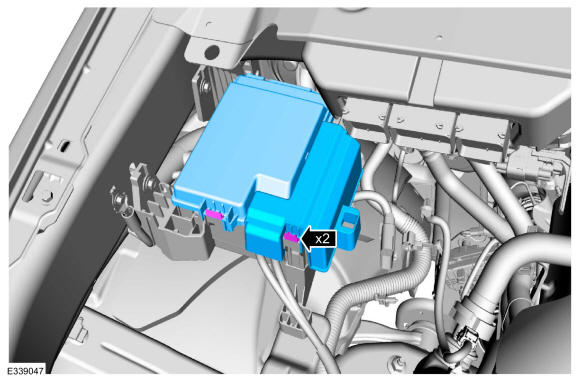

- Release the tabs and remove the BCMC access covers.

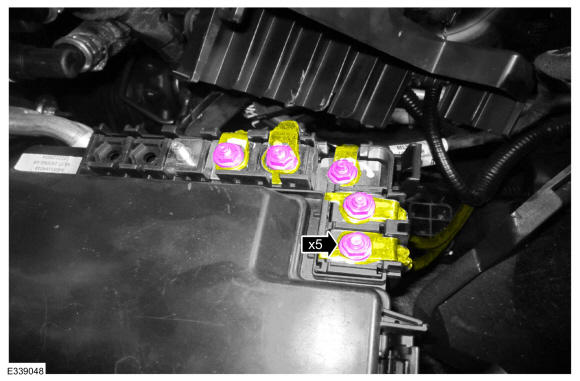

- Remove the BCMC wire end connector nuts and remove the wire end connectors.
Torque: 93 lb.in (10.5 Nm)

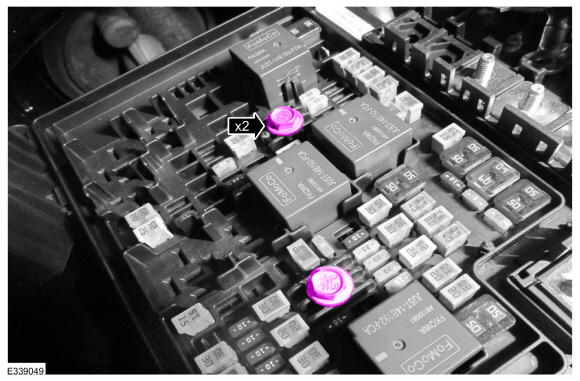

- Remove the BCMC bolts.
-

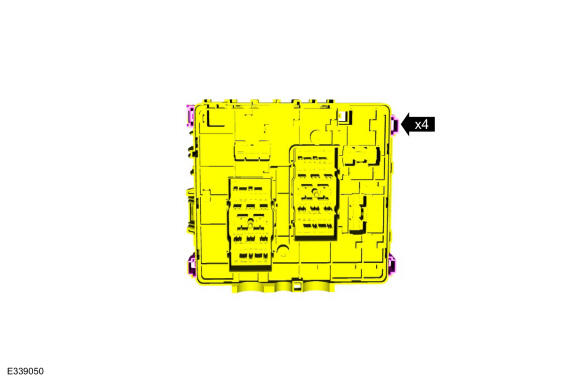

NOTE: BCMC (body control module C) is shown in illustration removed and from underneth to show tab locations.
Release the 4 tabs and position up the BCMC.
-

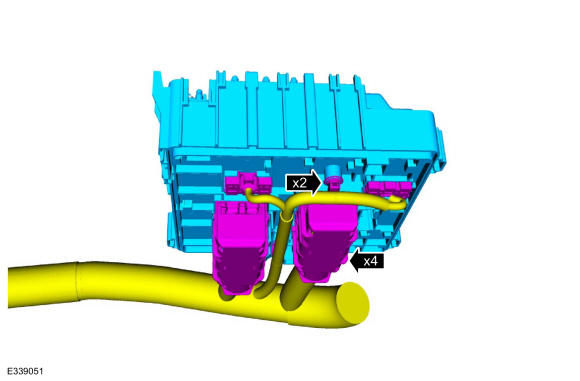

NOTE: 4 BCMC (body control module C) connectors are shown in illustration, some vehicles may be equipped with 5.
Disconnect the connectors an release the wiring harness retainers and remove the BCMC.
