Transfer Case

WARNING: This page is about a different car, the 2022 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

With the vehicle in Neutral, position it on a hoist. Refer to: Jacking and Lifting - Overview .

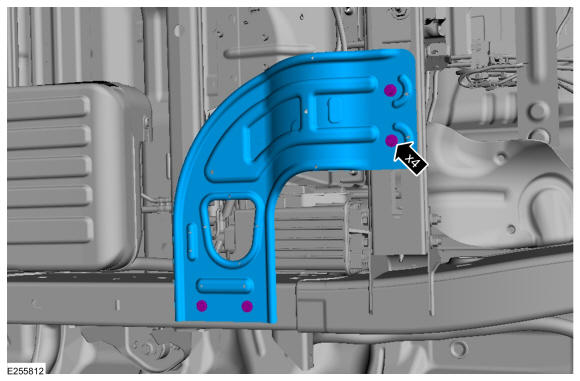

If equipped. Remove the skid plate bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY
Drain the fluid if the transfer case is to be disassembled. Refer to: Transfer Case Draining and Filling .
Remove the front driveshaft. Refer to: Front Driveshaft .
Remove the rear driveshaft. Refer to: Rear Driveshaft .

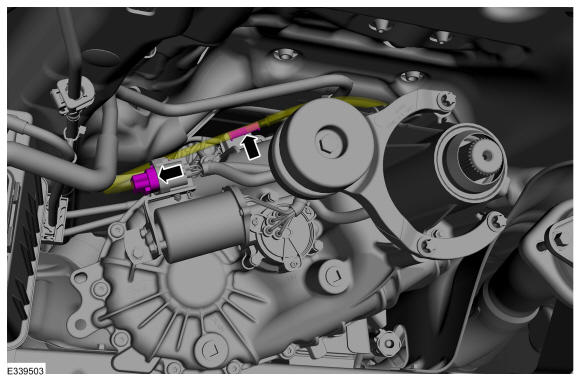

Disconnect the shift motor electrical connector and detach the harness retainer clip from the transfer case.

Courtesy of FORD MOTOR COMPANY
Detach the harness retainer clip from the transfer case.

Courtesy of FORD MOTOR COMPANY
Disconnect the vent hose from the transfer case.

Courtesy of FORD MOTOR COMPANY
Remove the transmission support insulator. Refer to: Transmission Support Insulator - 10R80 . Refer to: Transmission Support Insulator - 10R80MHT .

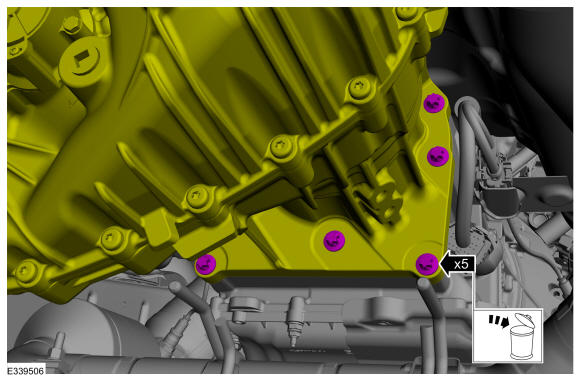

Remove and discard the transfer case-to-transmission bolts.

Courtesy of FORD MOTOR COMPANY

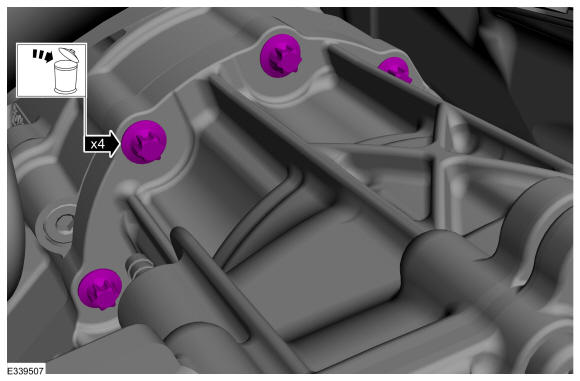

Remove and discard the transfer case-to-transmission bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: The transfer case will need to be positioned on top of the crossmember and will require the help of an assistant.

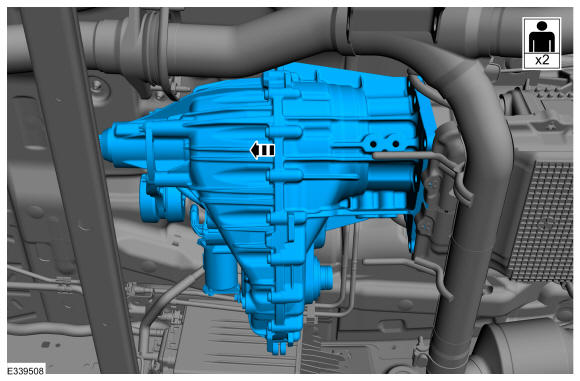

Separate the transfer case from the transmission and move the transfer case rearward.

Courtesy of FORD MOTOR COMPANY
NOTE: An assistant will be required to remove the transfer case.

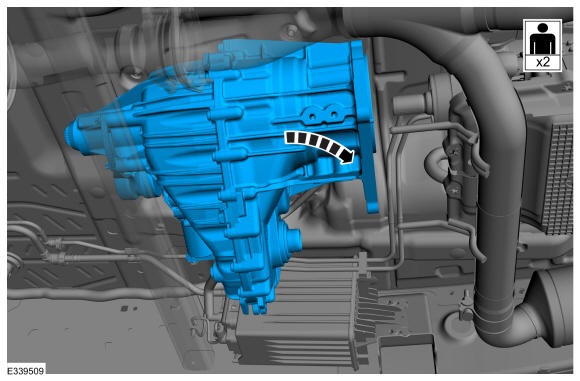

Raise the transmission for clearance. Remove the transfer case and lower it from the vehicle.

Courtesy of FORD MOTOR COMPANY
NOTE: If transfer case disassembly or installation of a new transfer case is necessary, remove the vibration damper.

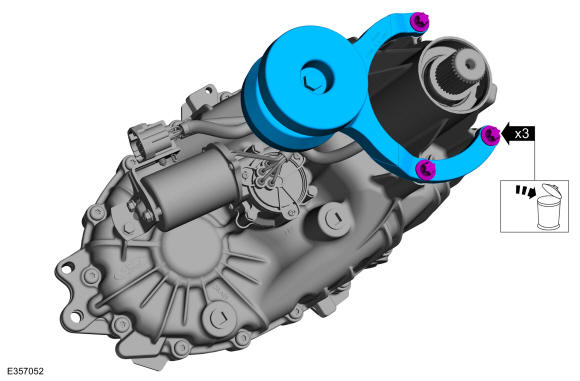

Remove and discard the vibration damper bolts. Remove the vibration damper from the transfer case.

Courtesy of FORD MOTOR COMPANY
