Engine - 2.3L ECOBOOST (201KW/273PS): Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-050 (T70P-6000) Lifting Bracket, Engine
Adjustable Mounting Arm
Vehicle/Axle Stands
Cable Ties
Hose Clamp Remover/Installer
Wooden Block

Materials

LHD AWD/LHD RWD

1. Inspect the turbocharger or engine air intake system components and clean, if necessary.

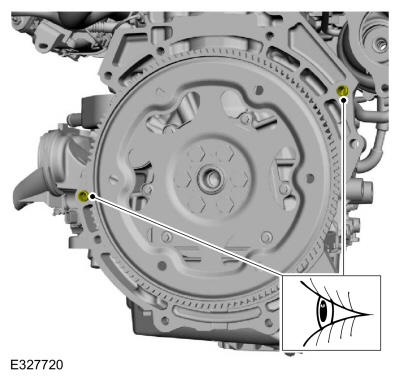

2. Inspect the engine block dowels. If the dowels are damaged or missing, install new engine block dowels.

   Courtesy of FORD MOTOR COMPANY

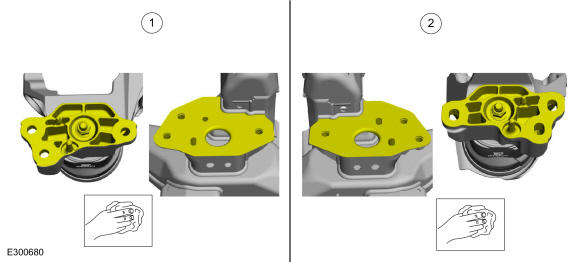

3. 1. Clean the LH engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.
   2. Clean the RH engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

   Courtesy of FORD MOTOR COMPANY

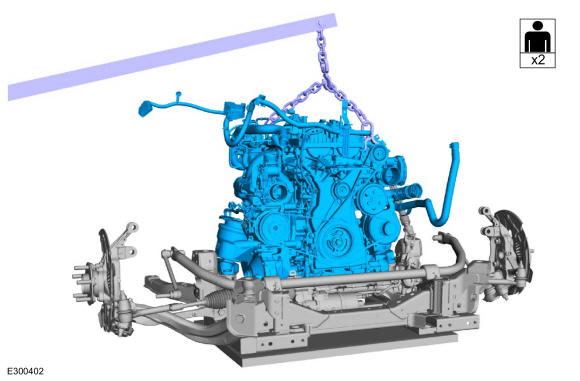

4. With the aid of an assistant and using the floor crane and chain, install the engine on the subframe.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: AWD shown below, RWD similar.

   Make sure the board is still in position to support the engine.

   Courtesy of FORD MOTOR COMPANY

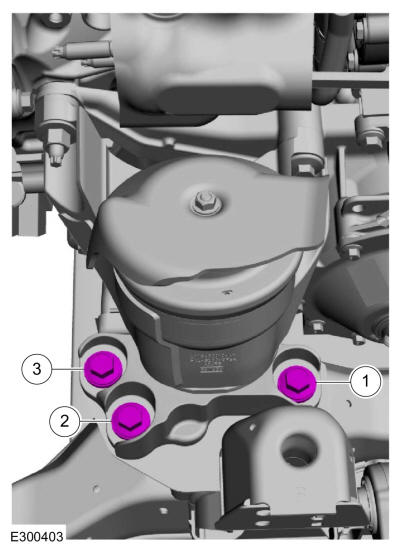

6. Install the RH motor mount bolts and tighten in sequence shown below.

   Torque: 76 lb.ft (103 Nm)

   Courtesy of FORD MOTOR COMPANY

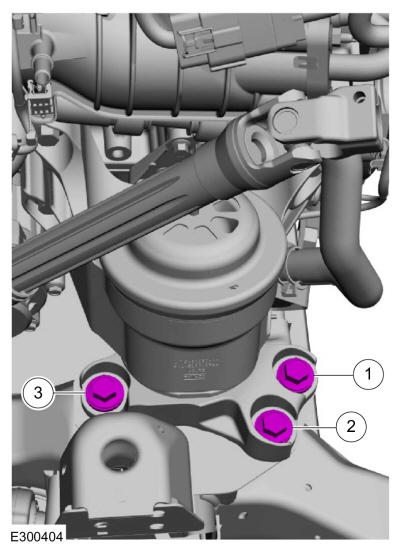

7. Install the LH motor mount bolts and tighten in sequence shown below.

   Torque: 76 lb.ft (103 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Install and tighten the adjustable mounting arm bolts. Use the General Equipment: Adjustable Mounting Arm

   Courtesy of FORD MOTOR COMPANY

9. Remove the floor crane and chain.

   Courtesy of FORD MOTOR COMPANY

10. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

11. • Attach the wiring harness retainers.
    • Connect the generator electrical connector.
    • Position the B+ wire and install the nut.

      Torque: 155 lb.in (17.5 Nm)

    • Position the B+ wire protective cover.

    Courtesy of FORD MOTOR COMPANY

12. Position the ground wire to the engine block and install the bolt and the wiring harness retainer.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

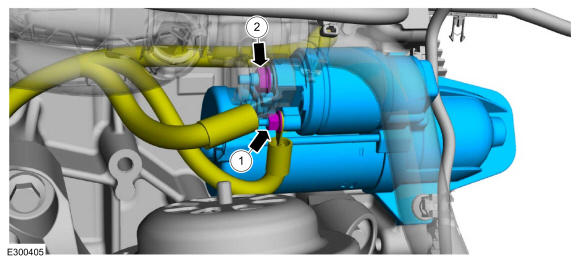

13. 1. Install the starter motor and connect the starter motor control wire to the starter motor and install the nut.

       Torque: 53 lb.in (6 Nm)

    2. Connect the battery positive cable to the starter motor and install the nut.

       Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

14. • Install the auxiliary coolant pump and hoses and the bolt.

      Torque: 97 lb.in (11 Nm)

    • Install the coolant hose clamp and retainer. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

15. Connect the A/C compressor electrical connectors and the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

16. With the aid of an assistant and using the powertrain jack, raise the powertrain and subframe as an assembly 25.4 mm (1 in) from the frame.

    Courtesy of FORD MOTOR COMPANY

17. 1. With the aid of an assistant and using the powertrain jack, position the powertrain and subframe forwards 50.8 mm (2 in).
    2. With the aid of an assistant and using the powertrain jack, raise the powertrain and subframe 25.4 mm (1 in).

    Courtesy of FORD MOTOR COMPANY

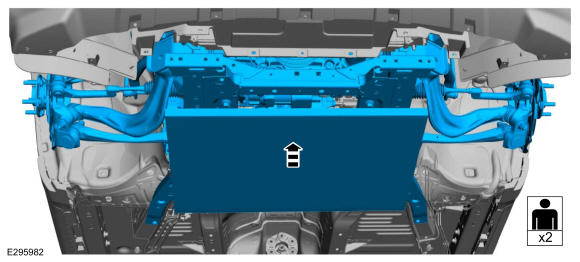

18. Install the new rear subframe bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

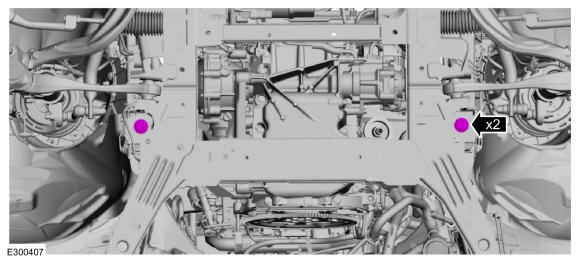

19. Install the new front subframe bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

20. Install the new middle subframe bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

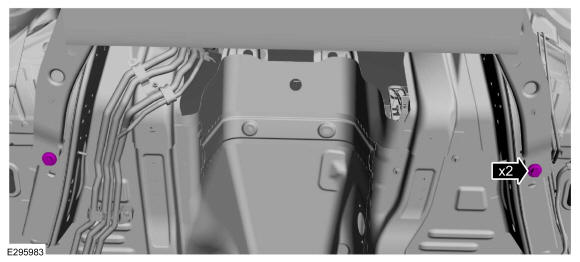

21. Tighten the rear subframe bolts.

    Torque: 52 lb.ft (70 Nm)

    Courtesy of FORD MOTOR COMPANY

22. Tighten the front subframe bolts.

    Torque: 195 lb.ft (265 Nm)

    Courtesy of FORD MOTOR COMPANY

23. Attach the coolant tube retainers to the front of subframe.

    Courtesy of FORD MOTOR COMPANY

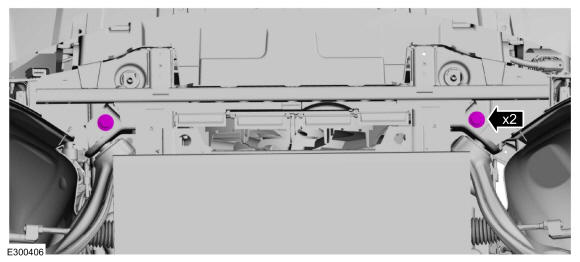

24. Install the front radiator support bar bolts.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

25. Remove. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

26. Remove the powertrain jack and wooden blocks. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

27. Tighten the middle subframe bolts.

    Torque: 195 lb.ft (265 Nm)

    Courtesy of FORD MOTOR COMPANY

28. Position the LH underbody shield and install the bolt.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

29. Position the RH underbody shield and install the bolt.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

    LHD RWD

30. NOTE: Two different styles of lower strut-to-wheel knuckle bolts are available: with and without splines. Bolts without splines are used to adjust camber and should be installed when the strut, knuckle, or subframe have been replaced or if the subframe or either lower arm to subframe bolts have been loosened.
    NOTE: LH side shown below, RH side similar.

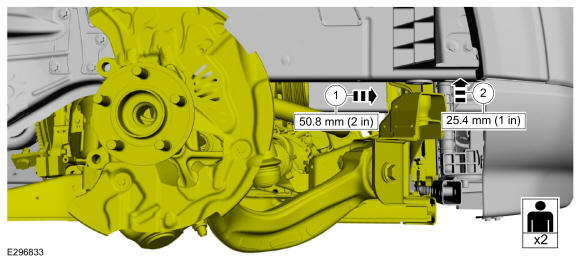

    1. On both sides, position the wheel knuckle into the front strut and spring assembly.
    2. Install the new lower strut-to-wheel knuckle nuts and bolts.

       Torque: 166 lb.ft (225 Nm)

    Courtesy of FORD MOTOR COMPANY

31. NOTE: LH side shown below, RH side similar.

    On both sides, install the wheel speed sensor and the bolt.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

32. NOTE: LH side shown below, RH side similar.

    On both sides, install the front brake hose and the bolt.

    Torque: 133 lb.in (15 Nm)

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD RWD

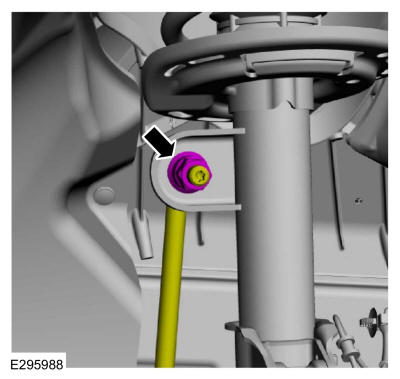

33. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the RH sway bar link and install the new nut.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

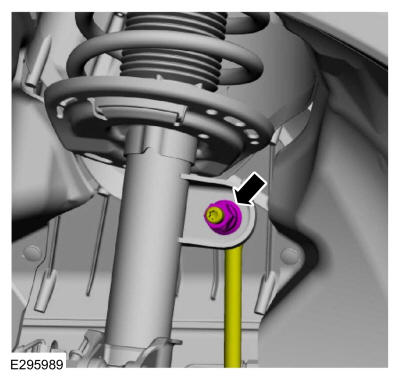

34. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the LH sway bar link and install the new nut.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

35. Position the splash shield and install the pin-type retainer to the LH subframe.

    Courtesy of FORD MOTOR COMPANY

36. If equipped, install the steering shield and the pin-type retainers to the LH subframe.

    Courtesy of FORD MOTOR COMPANY

37. If equipped with AWD, install the LH fender splash shield nut.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

38. Attach the HO2S wiring harness retainers to the RH subframe.

    Courtesy of FORD MOTOR COMPANY

39. Install the splash shield pin-type retainer to the RH subframe.

    Courtesy of FORD MOTOR COMPANY

40. If equipped, install the steering shield and the pin-type retainers to the RH subframe.

    Courtesy of FORD MOTOR COMPANY

41. If equipped with AWD, install the RH fender splash shield nut.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

42. If equipped, install the steering shield pin-type retainers to the RH subframe.

    Courtesy of FORD MOTOR COMPANY

43. • Position the auxiliary coolant pump and install the bolts.

      Torque: 80 lb.in (9 Nm)

    • Connect the auxiliary coolant pump wiring harness electrical connector and the retainer.

    Courtesy of FORD MOTOR COMPANY

44. • Install the transmission cooler and connect the coolant tube.
    • Position the transmission cooler coolant tube and tighten the clamp.

    Courtesy of FORD MOTOR COMPANY

45. Install the stand. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

46. NOTE: AWD shown below, RWD similar.

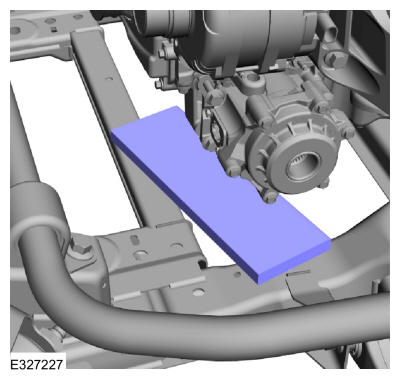

    Remove the board. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

47. NOTE: Do not fill the transmission with fluid until the engine is completely installed.

    Install the transmission. Refer to: Transmission - 2.3L EcoBoost (201kW/273PS) .

    LHD AWD

48. Connect the wiring harness electrical connector to the front axle assembly.

    Courtesy of FORD MOTOR COMPANY

49. Connect the wiring harness electrical connector to the LH axle connector.

    Courtesy of FORD MOTOR COMPANY

50. • Position the vent tubes and connect the vent hose to the front axle assembly.
    • Attach the wiring harness retainer to the vent tubes.
    • Connect the vent hose to the LH axle connector.

    Courtesy of FORD MOTOR COMPANY

51. Install the RH and LH halfshafts. Refer to: Halfshaft .

    LHD AWD/LHD RWD

52. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    Install both front brake disc. Refer to: Brake Disc .

53. Lubricate the new engine oil filter sealing surface with clean engine oil and install.

    Torque: Stage 1: 71 lb.in (8 Nm) | Stage 2: 180°

    Courtesy of FORD MOTOR COMPANY

54. Install the engine rear undershield. Refer to: Engine Rear Undershield .
55. Position the wiring harness, retainer and install the bolt to the frame rail.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

56. Install the LH and RH front wheels and tires. Refer to: Wheel and Tire .
57. • Position the wiring harness and install the wiring harness retainer nut.

      Torque: 106 lb.in (12 Nm)

    • Position the ground wire and install the bolt.

      Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

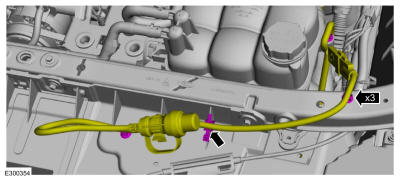

58. Install the wiring harness cable tie. Use the General Equipment: Cable Ties

    Courtesy of FORD MOTOR COMPANY

59. Position the wiring harness electrical grommet.

    Courtesy of FORD MOTOR COMPANY

60. Connect the wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

61. Position the battery wiring harness and install the nut.

    Torque: 48 lb.in (5.4 Nm)

    Courtesy of FORD MOTOR COMPANY

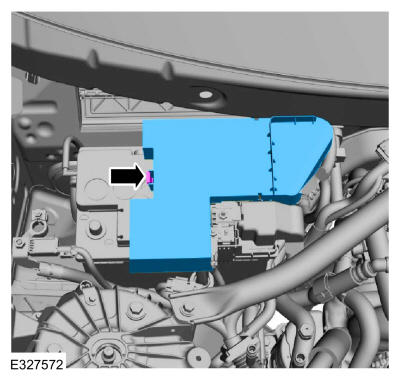

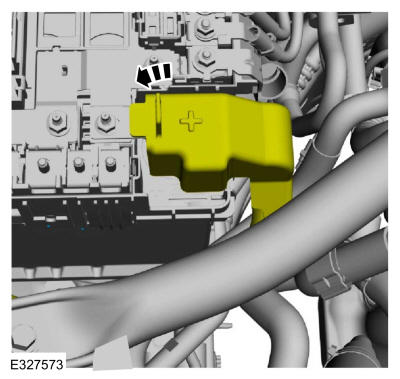

62. Position the battery cable cover over the battery cable.

    Courtesy of FORD MOTOR COMPANY

63. 1. Position the ground and install the bolt.

       Torque: 106 lb.in (12 Nm)

    2. Position the B+ battery cables and install the nuts.

       Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

64. Install the cover.

    Courtesy of FORD MOTOR COMPANY

65. Connect the fuel supply tube quick release coupling. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

66. NOTE: When installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

    Install the high-pressure fuel pump noise insulator.

    Courtesy of FORD MOTOR COMPANY

67. Position the coolant tubes and attach the fuel tube retainer.

    Courtesy of FORD MOTOR COMPANY

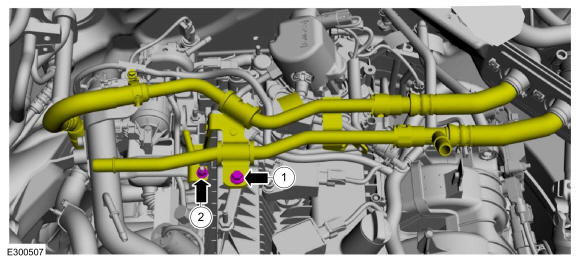

68. 1. Position the coolant tubes and install the bolt.

       Torque: 124 lb.in (14 Nm)

    2. Install the coolant tubes nut.

       Torque: 62 lb.in (7 Nm)

    Courtesy of FORD MOTOR COMPANY

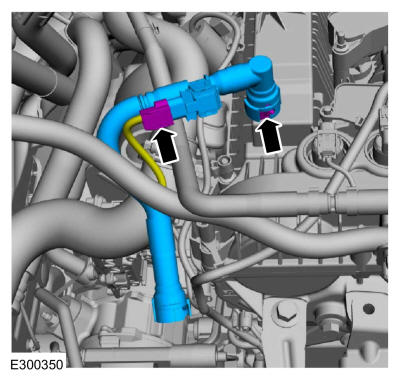

69. Connect the coolant tube to the coolant hoses that are over engine.

    Courtesy of FORD MOTOR COMPANY

70. Position the lower coolant hose and install the clip and retainer.

    Courtesy of FORD MOTOR COMPANY

71. • Install a new O-ring seals.
    • Connect the A/C lines and install the nuts.

      Torque: 133 lb.in (15 Nm)

    Courtesy of FORD MOTOR COMPANY

72. Connect the A/C pressure switch and attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

73. • Position and connect the coolant hose quick connect couplings.
    • Position the coolant hose and install the clamp. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

74. Connect the upper radiator hose to the coolant tube and tighten the clamp.

    Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

75. Position the degas bottle coolant hose and tighten the clamp and attach the coolant hose retainer.

    Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

76. • Position and connect the engine harness electrical connector and retainer.
    • Connect the PCM electrical connector.

    Courtesy of FORD MOTOR COMPANY

77. Connect the HO2S sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

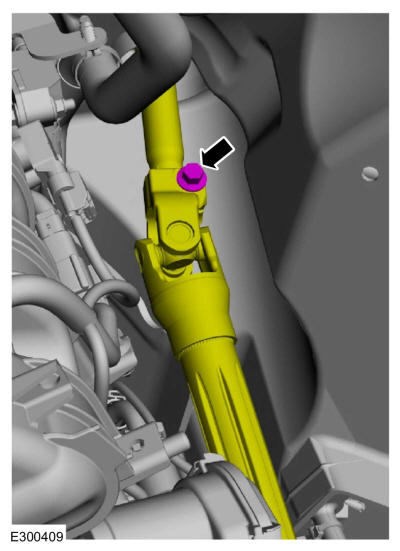

78. Install the new steering shaft bolt.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

79. Position the coolant hose and install the clamp. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

80. If equipped, position the block heater electrical wiring harness and attach the retainers.

    Courtesy of FORD MOTOR COMPANY

81. Position the ground wire and install the bolt and attach the retainers.

    Torque: 159 lb.in (18 Nm)

    Courtesy of FORD MOTOR COMPANY

82. Install the shield and the bolts (Enhanced Hexalobular or TORX PLUS ® Acument Intellectual Properties, LLC as the owner).

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

83. Position the CAC tube clamp and tighten the clamp.

    Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

84. • Install the new crankcase vent tube.
    • If the replacement crankcase vent tube part comes with no crankcase pressure sensor, reprogram the PCM. Refer to: Module Programming .
    • If the replacement crankcase vent tube came without a crankcase pressure sensor, tape the wiring harness electrical connector back to the wiring harness.
    • If the replacement crankcase vent tube comes with a crankcase pressure sensor, connect the wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

85. Remove cable ties or mechanics wire support the cooling module. Use the General Equipment: Cable Ties

    Courtesy of FORD MOTOR COMPANY

86. Install the EVAP canister tube and connect the quick release coupling to the intake manifold. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

87. Install the EVAP canister tube and connect the quick release coupling and the retainer. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

88. Install the following items:
    1. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
    2. Install the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    3. Install the air cleaner. Refer to: Air Cleaner .
    4. Install the EVAP canister purge valve. Refer to: Evaporative Emission Canister Purge Valve .
    5. Install the cowl panel. Refer to: Cowl Panel .

89. 1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

       Lubricate each grommet with silicone grease.

       Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

    2. Position the engine appearance cover onto engine with the grommet aligned with the stud.
    3. Press down on the engine appearance cover at the grommet location to attach the grommet onto the stud and install the nuts.

       Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

90. Install the suspension support bar and the bolts.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

91. Remove the holding device.

    Courtesy of FORD MOTOR COMPANY

92. Fill the engine with clean engine oil. Refer to: Specifications  .

    Courtesy of FORD MOTOR COMPANY

93. Connect the positive and battery negative cables. Refer to: Battery Disconnect and Connect .
94. Recharge the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .
95. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
96. Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
97. Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
98. Start and check the exhaust system for leaks.
99. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
