Engine Mechanical: Mechanical: Engine: Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar
Courtesy of FORD MOTOR COMPANY	303-1654 Lift Eyes
Courtesy of FORD MOTOR COMPANY	307-346 (T97T-7902-A) Retainer, Torque Converter
Floor Crane
Trolley Jack
Hose Clamp Remover/Installer
Wooden Block

Materials

1. Inspect the TC or engine air intake system components and clean, if necessary.

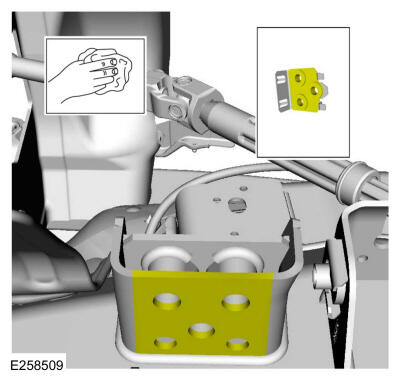

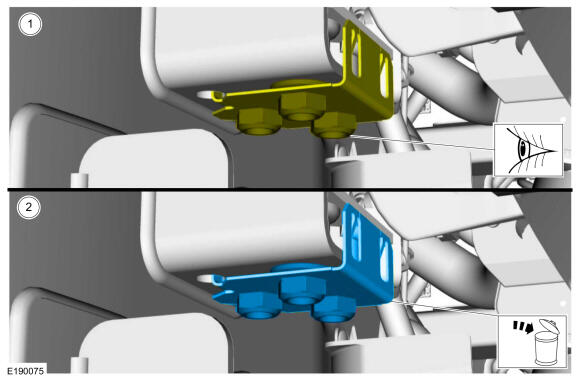

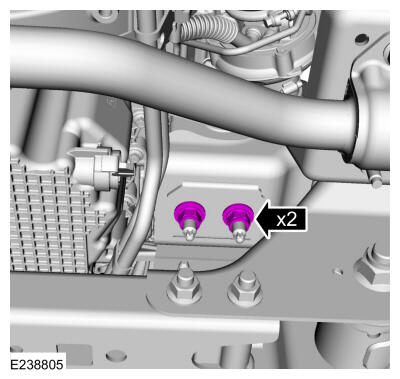

2. 1. Inspect the LH engine mount-to-frame nut plate for thread damage.
   2. If the nut plate is damaged, remove and discard the engine mount-to-frame nut plate.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: This step is only necessary when installing a new component.

   Clean the LH engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

   Courtesy of FORD MOTOR COMPANY

4. NOTE: This step is only necessary when installing a new component.

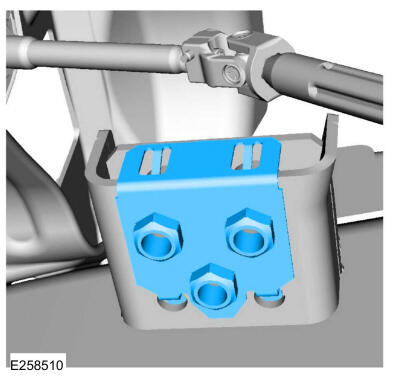

   Install the LH nut plate.

   Courtesy of FORD MOTOR COMPANY

5. Remove Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

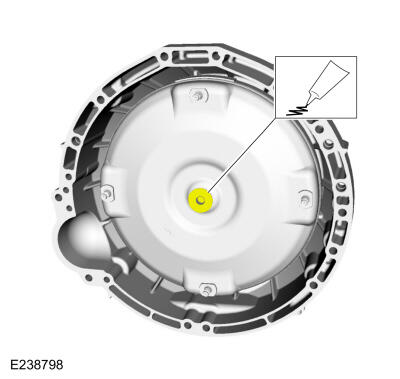

6. Lubricate the torque converter pilot hub with multi-purpose grease.

   Material: Grease - Multi Purpose (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

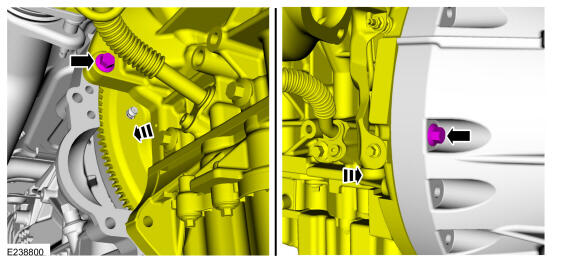

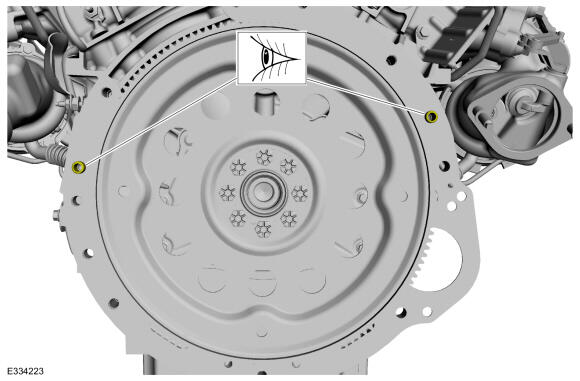

7. Inspect the engine block dowels. If the dowels are damaged or missing, install new engine block dowels.

   Courtesy of FORD MOTOR COMPANY

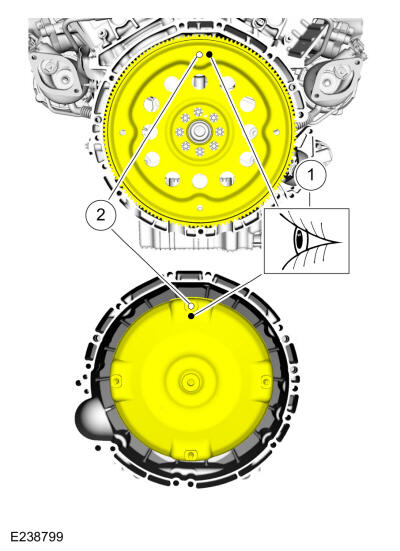

8. 1. Inspect the torque converter stud and flexplate for paint marks.
   2. Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.

   Courtesy of FORD MOTOR COMPANY

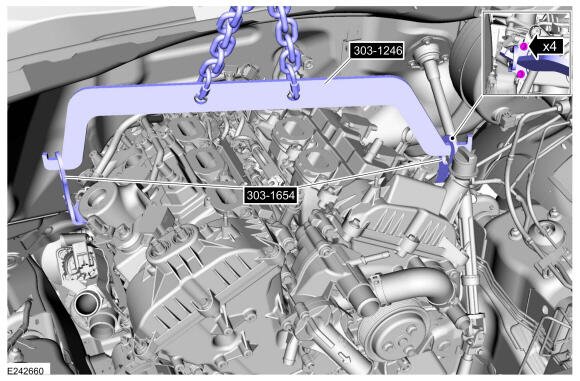

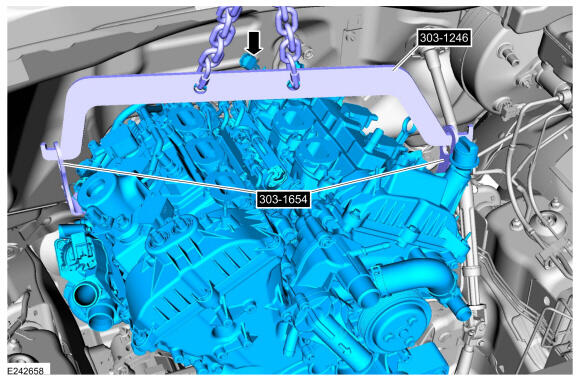

9. NOTE: The use of a ratchet strap may be needed to level the engine.
   NOTE: Use a commercially available quick link on the chain to minimize the spread of the chain.

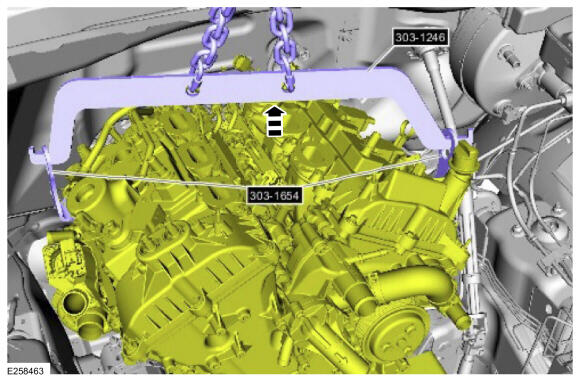

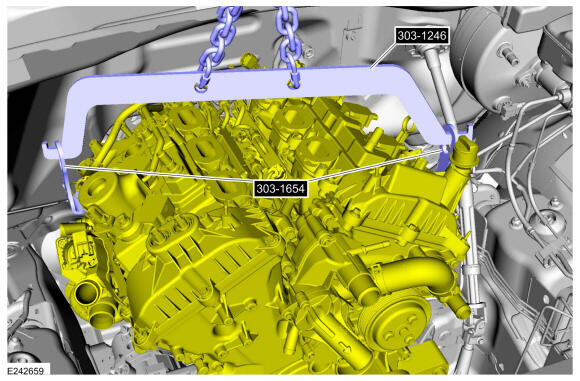

   Using the floor crane, lift eyes and the engine spreader bar, position the engine in the engine compartment. Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes. Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

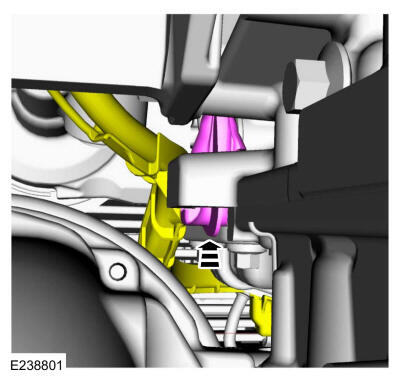

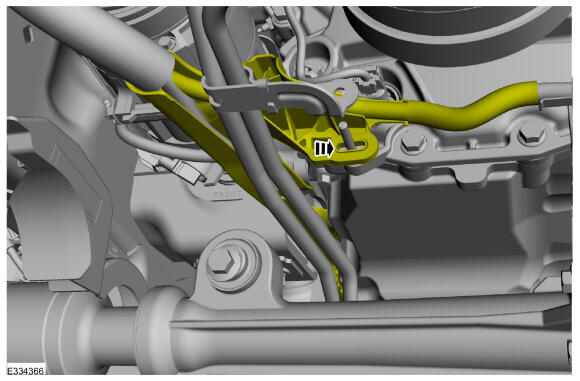

10. Position back and attach the generator wiring harness retainer to the lower LH side of the engine block.

    Courtesy of FORD MOTOR COMPANY

11. Using the floor crane, lift eyes and the engine spreader bar, position the engine to the transmission. Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

12. Align the engine to the transmission and draw together using the bolts.

    Torque: 48 Nm

    Courtesy of FORD MOTOR COMPANY

13. Using the floor crane, lift eyes and the engine spreader bar, raise the engine for clearance to install the LH engine mount. Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

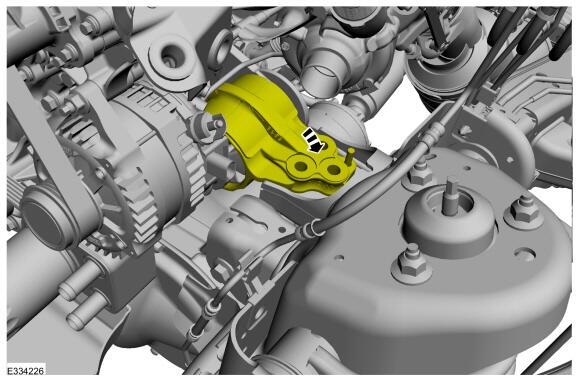

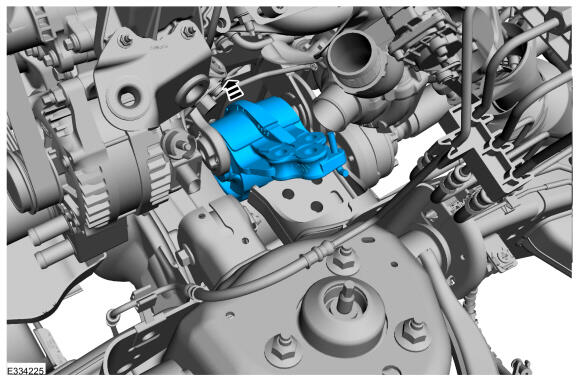

14. Install the LH engine mount.

    Courtesy of FORD MOTOR COMPANY

15. Rotate the LH engine mount and position to the frame.

    Courtesy of FORD MOTOR COMPANY

16. NOTE: Use only hand tools when installing the LH engine mount through bolt or the engine mount may be damaged.
    • Install the new LH mount through bolt.
    • Do not torque at this time.

    Courtesy of FORD MOTOR COMPANY

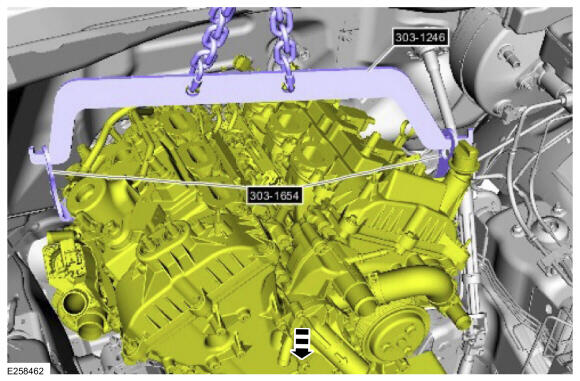

17. Using the floor crane, lift eyes and the engine spreader bar, lower the engine. Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

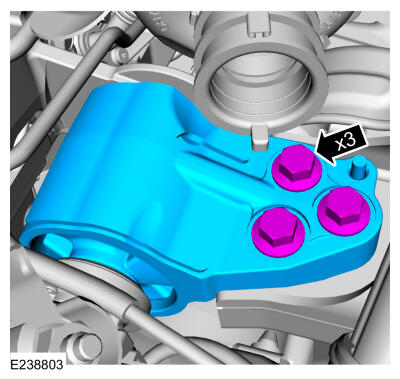

18. Install the new LH engine mount bolts.

    Torque: 175 Nm

    Courtesy of FORD MOTOR COMPANY

19. Remove the floor jack and the block of wood. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

20. Remove the floor crane, lift eyes and the engine spreader bar. Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

21. Install the right rear ignition coil. Refer to: Ignition Coil-On-Plug .

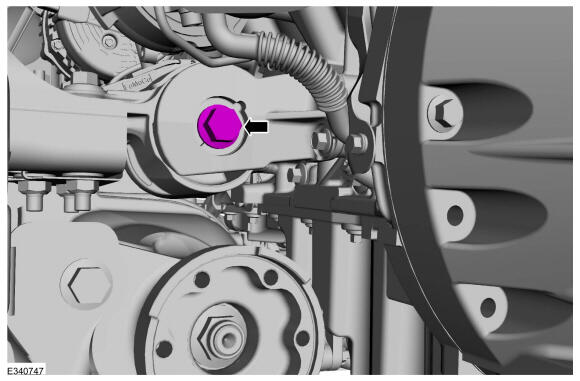

22. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Tighten the LH engine mount through bolt.

    Torque: 350 Nm

    Courtesy of FORD MOTOR COMPANY

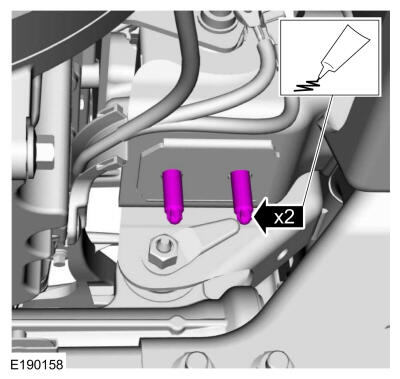

23. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
    NOTE: Apply threadlock to the stud threads prior to installation.

    Install the engine mount studs.

    Material: Thread Locking Adhesive (WSK-M2G351-A6)

    Torque: 30 Nm

    Courtesy of FORD MOTOR COMPANY

24. NOTE: Only use hand tools when installing the engine mount nuts and studs or damage to the engine mount can occur.

    Install the new RH engine mount nuts.

    Torque: 150 Nm

    Courtesy of FORD MOTOR COMPANY

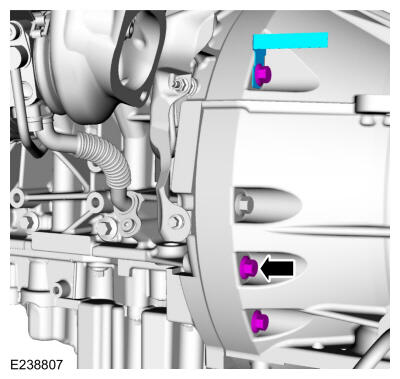

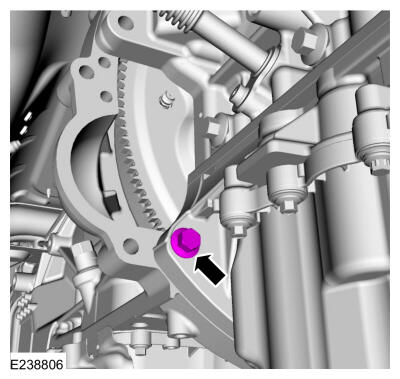

25. Install the RH side bellhousing bolt.

    Torque: 48 Nm

    Courtesy of FORD MOTOR COMPANY

26. Install the shift cable bracket and the LH side bellhousing bolts.

    Torque: 48 Nm

    Courtesy of FORD MOTOR COMPANY

27. Install the upper bellhousing bolts.

    Torque: 48 Nm

    Courtesy of FORD MOTOR COMPANY

28. Install the lower bellhousing bolt.

    Torque: 48 Nm

    Courtesy of FORD MOTOR COMPANY

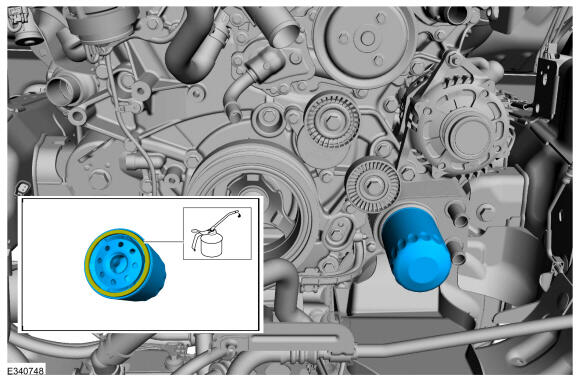

29. Lubricate the oil filter seal with clean oil and install the new oil filter. Refer to: Specifications .

    Torque: Stage 1: 5 Nm Stage 2: 180 deg.

    Courtesy of FORD MOTOR COMPANY

30. NOTE: Only use hand tools when loosening or tightening the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Remove and discard the transmission mount-to-crossmember nuts. Install new transmission mount-to-crossmember nuts.

    Torque: 115 Nm

    Courtesy of FORD MOTOR COMPANY

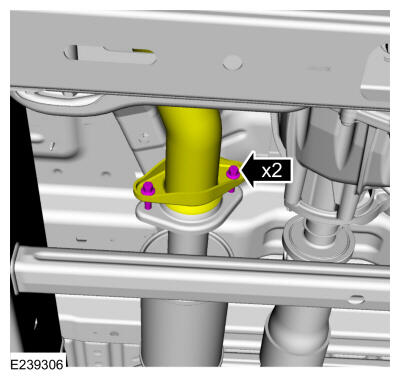

31. Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.

    Torque: 63 Nm

    Courtesy of FORD MOTOR COMPANY

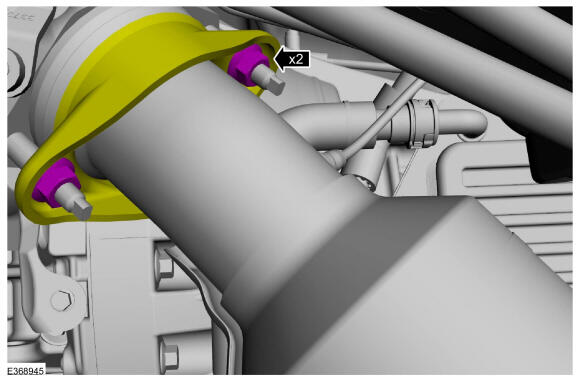

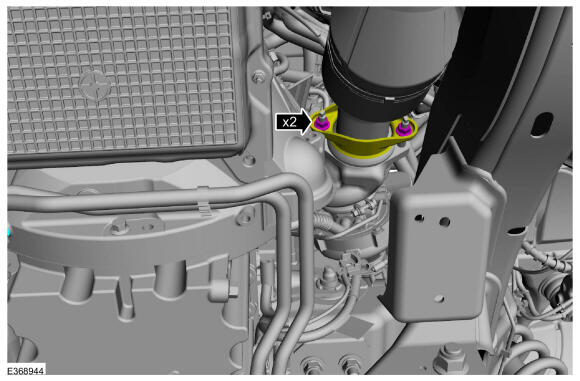

32. Install the new RH catalytic converter-to-turbocharger nuts.

    Torque: 40 Nm

    Courtesy of FORD MOTOR COMPANY

33. Install the new LH catalytic converter-to-turbocharger nuts.

    Torque: 40 Nm

    Courtesy of FORD MOTOR COMPANY

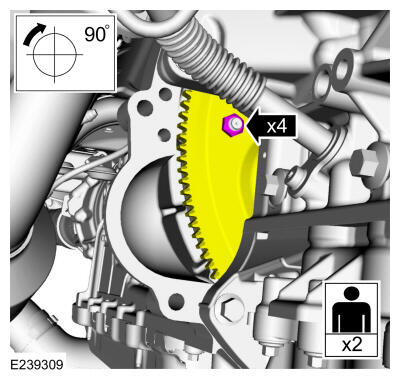

34. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Install new torque converter nuts.

    Torque: 48 Nm

    Courtesy of FORD MOTOR COMPANY

35. Install the access cover and the retainers.

    Courtesy of FORD MOTOR COMPANY

36. Install the following items:
    1. Install the starter motor. Refer to: Starter Motor .
    2. If equipped, install the front driveshaft. Refer to: Front Driveshaft .
    3. Install the front stabilizer bar. Refer to: Front Stabilizer Bar . Refer to: Front Stabilizer Bar .

37. Courtesy of FORD MOTOR COMPANY

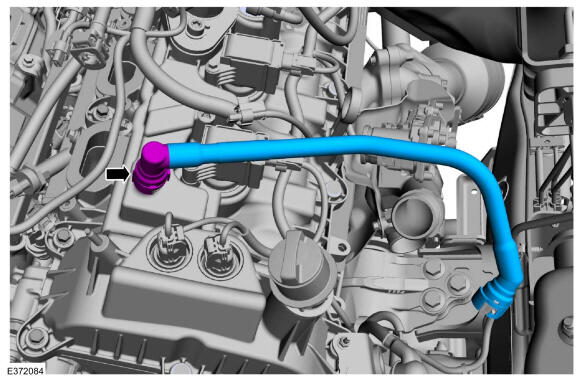

    1. Install the new PCV tube to the valve cover. Refer to: Quick Release Coupling .

38. Install the ground strap and the nut. Connect the ground strap retainers.

    Torque: 12 Nm

    Courtesy of FORD MOTOR COMPANY

39. Install the TC bypass valve tube. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

40. Connect the lower coolant pump hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

41. Install and connect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

42. • Install and connect the radiator coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    • Install and connect the thermostat housing coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    • Install and connect the coolant control valve hose. Use the General Equipment: Hose Clamp Remover/Installer
    • Install and connect the oil cooler cooling hoses. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

43. Connect the coolant hose to the degas bottle and connect the degas bottle hose at the thermostat. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

44. Connect the PCM electrical connectors and the wire harness retainers.

    Courtesy of FORD MOTOR COMPANY

45. Follow directions to connect the quick release coupling type 24. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

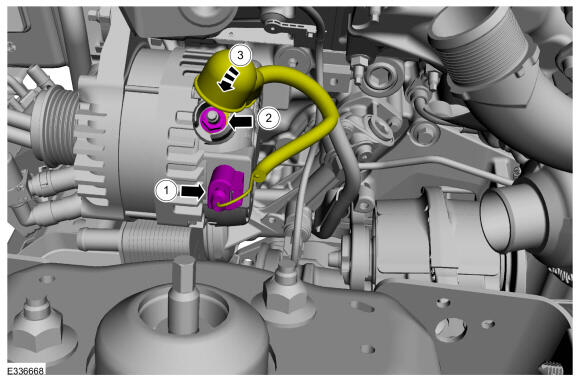

46. • Connect the electrical connector and the wire harness retainer.
    • Install the generator nut and position back the boot.

      Torque: 17 Nm

    1. Position back the boot.

    Courtesy of FORD MOTOR COMPANY

47. Connect the generator wiring harness to the engine front cover.

    Courtesy of FORD MOTOR COMPANY

48. Position back the engine wiring harness.

    Courtesy of FORD MOTOR COMPANY

49. Position back the transmission cooler tube bracket and install the nut.

    Torque: 12 Nm

    Courtesy of FORD MOTOR COMPANY

50. If equipped
    1. Connect the wire harness retainer to the coolant hose.
    2. Connect the block heater electrical connector and the wire harness retainer.

    Courtesy of FORD MOTOR COMPANY

51. If equipped. Install the LH heat shield and bolts.

    Courtesy of FORD MOTOR COMPANY

52. Install the intake manifold. Refer to: Intake Manifold .
53. Install the A/C compressor. Refer to: Air Conditioning (A/C) Compressor .
54. Install the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
55. Install the CAC outlet pipes. Refer to: Air Cleaner Outlet Pipe .
56. Install the cooling module. Refer to: Cooling Module .
57. Remove the pin-type retainer and position the cooler tubes from the oil pan.

    Courtesy of FORD MOTOR COMPANY

58. Position the wiring harness cover to the oil pan and install the fasteners.

    Torque: 25 Nm

    Courtesy of FORD MOTOR COMPANY

59. Install the pin-type retainer position the cooler tube back.

    Courtesy of FORD MOTOR COMPANY

60. Install the cooler tubes, bracket and the nut.

    Torque: 14 Nm

    Courtesy of FORD MOTOR COMPANY

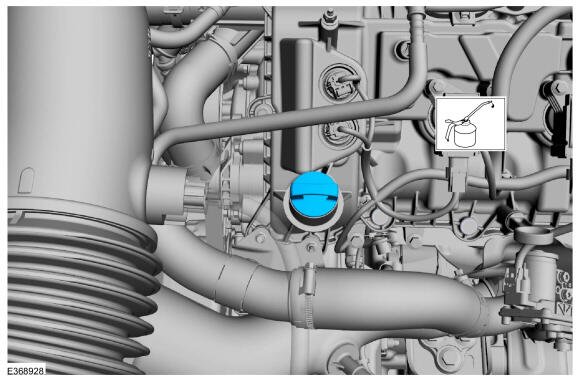

61. Fill the engine with clean engine oil. Refer to: Specifications .

    Courtesy of FORD MOTOR COMPANY

62. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
63. If equipped. Install the skid plate.

    Torque: 20 Nm

    Courtesy of FORD MOTOR COMPANY

64. If equipped.
    • Install the underbody shield and the bolts.

      Torque: 40 Nm

    • Install the underbody shield and the bolts.

      Torque: 8 Nm

    Courtesy of FORD MOTOR COMPANY

65. • If equipped. Install the transmission housing cover and attach the retainer.
    • Install the bolts.

      Torque: 8 Nm

    Courtesy of FORD MOTOR COMPANY

66. If equipped. Install the front skid plate.

    Torque: 40 Nm

    Courtesy of FORD MOTOR COMPANY

67. If equipped. Install the engine skid plate.

    Torque: 40 Nm

    Courtesy of FORD MOTOR COMPANY

68. Install the struts.

    Courtesy of FORD MOTOR COMPANY

69. NOTE: Align the index marks made during hood removal.

    Install the hood and the nuts.

    Torque: 25 Nm

    Courtesy of FORD MOTOR COMPANY

70. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
71. Start and check the exhaust system for leaks.
72. Road test the vehicle.
