Engine Mechanical: Mechanical: Engine: Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1246Engine Spreader Bar
Courtesy of FORD MOTOR COMPANY	303-1654Lift Eyes
Courtesy of FORD MOTOR COMPANY	307-346 (T97T-7902-A)Retainer, Torque Converter
Floor Crane
Oil Drain Equipment
Trolley Jack
Hose Clamp Remover/Installer
Wooden Block

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

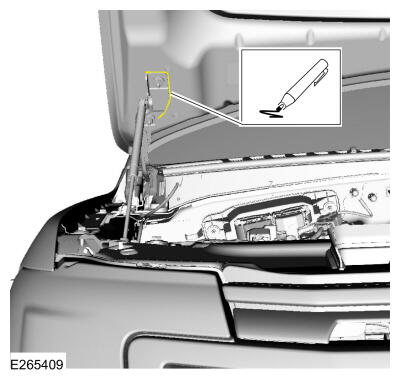

2. On both sides.Index-mark the hood hinge location to aid in hood installation.

   Courtesy of FORD MOTOR COMPANY

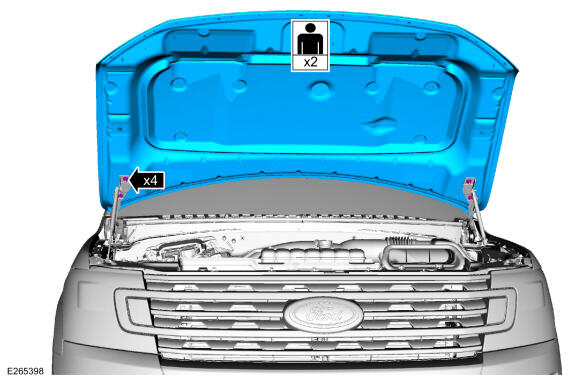

3. Remove the nuts and the hood.

   Courtesy of FORD MOTOR COMPANY

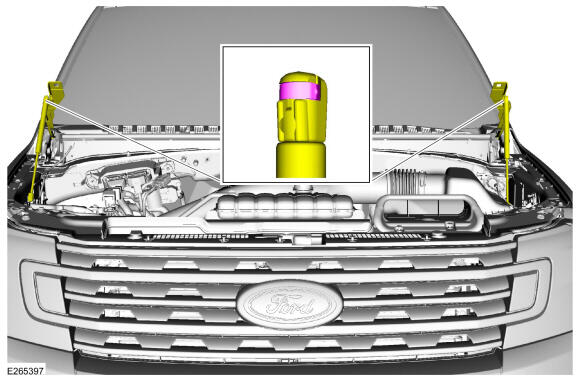

4. Remove the struts.

   Courtesy of FORD MOTOR COMPANY

5. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
6. Disconnect the battery ground cable. Refer to: Battery Cables .
7. • If equipped.Remove the bolts and remove the transmission housing cover.

   Courtesy of FORD MOTOR COMPANY

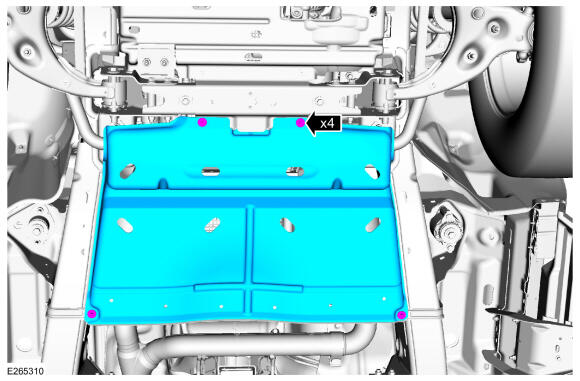

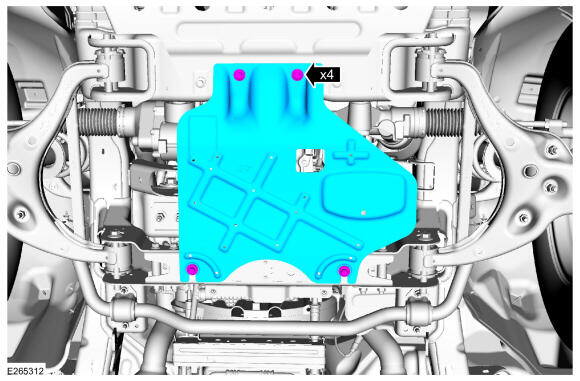

8. • If equippedRemove the bolts and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

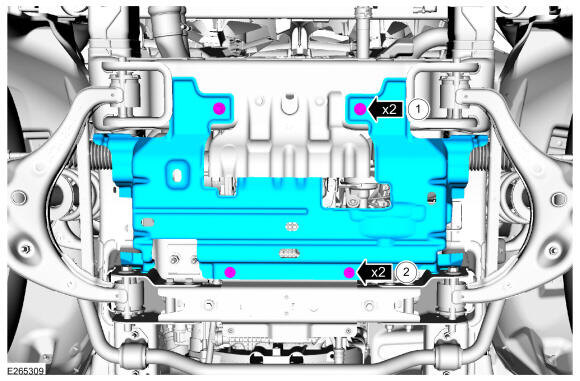

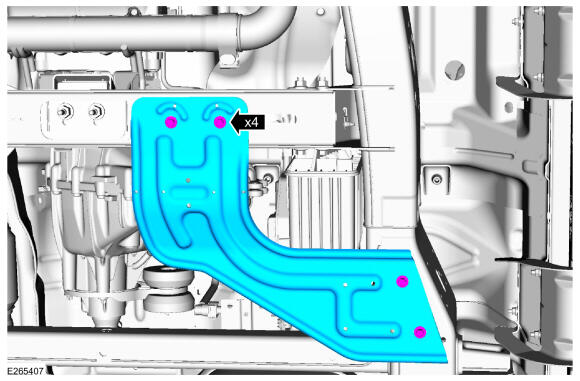

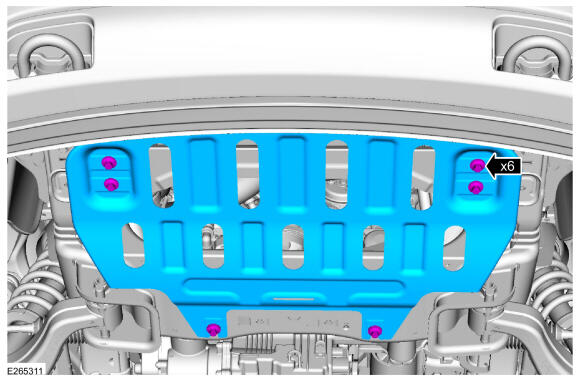

9. If equipped.Remove the bolts and the skid plate.

   Courtesy of FORD MOTOR COMPANY

10. If equipped.Remove the bolts and the skid plate.

    Courtesy of FORD MOTOR COMPANY

11. If equipped.Remove the bolts and the skid plate.

    Courtesy of FORD MOTOR COMPANY

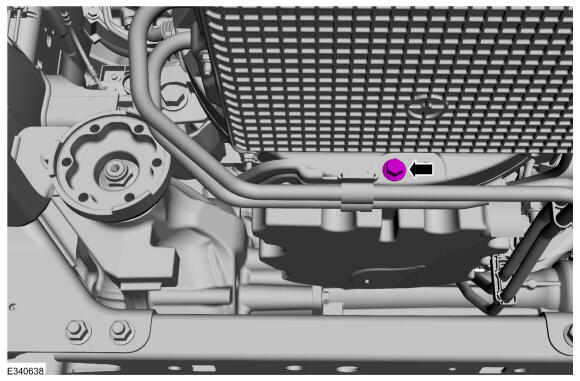

12. Remove the oil pan plug and drain the engine oil.Use the General Equipment: Oil Drain Equipment

    Torque: 27 Nm

    Courtesy of FORD MOTOR COMPANY

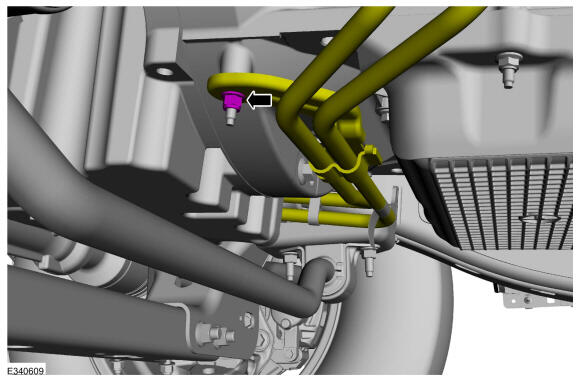

13. Remove the nut and position the cooler tubes aside.

    Courtesy of FORD MOTOR COMPANY

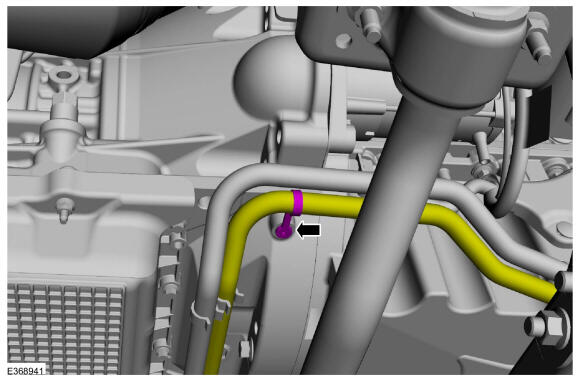

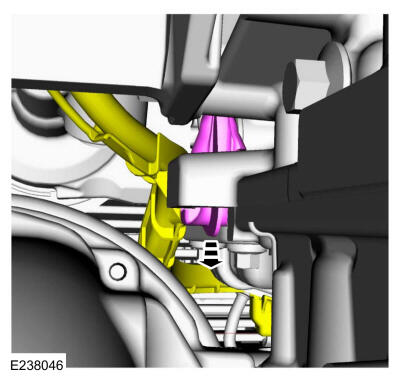

14. Remove the pin-type retainer position the cooler tube.

    Courtesy of FORD MOTOR COMPANY

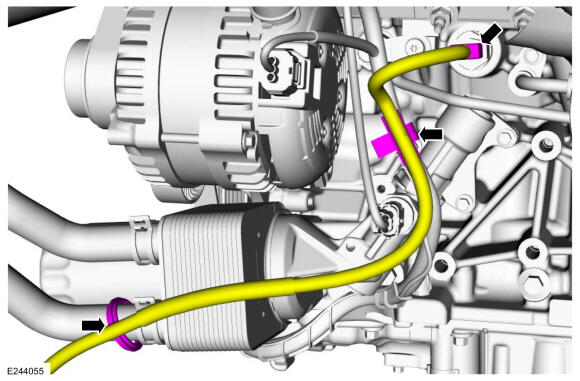

15. Remove the retainers and position the wiring harness cover from the oil pan.

    Courtesy of FORD MOTOR COMPANY

16. Remove the pin-type retainer and position the cooler tubes from the oil pan.

    Courtesy of FORD MOTOR COMPANY

17. Remove the cooling module. Refer to: Cooling Module .
18. Remove the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
19. Remove the CAC intake pipes. Refer to: Charge Air Cooler (CAC) Intake Pipe .
20. Remove the A/C compressor. Refer to: Air Conditioning (A/C) Compressor .
21. Remove the intake manifold. Refer to: Intake Manifold .
22. If equippd.Remove the bolts and the LH heat shield.

    Courtesy of FORD MOTOR COMPANY

23. If equipped

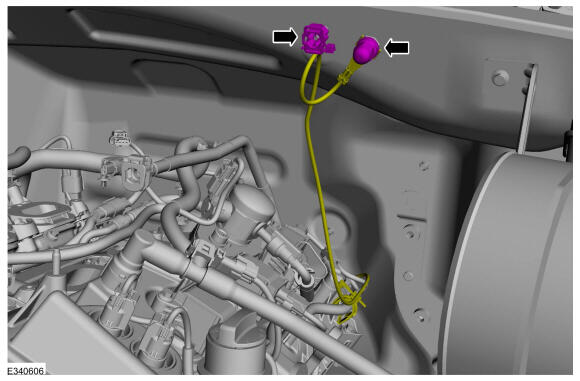

    • Disconnect the block heater electrical connector and the wire harness retainer.
    • Disconnect the wire harness retainer from the coolant hose.

    Courtesy of FORD MOTOR COMPANY

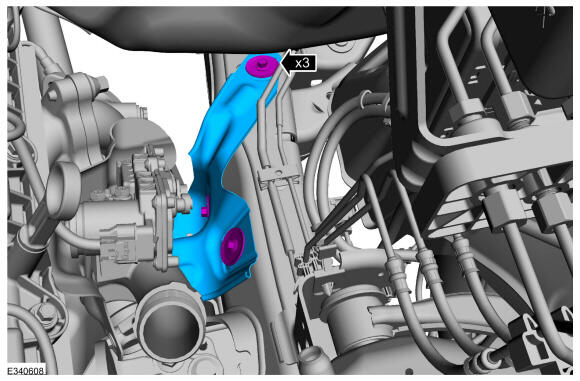

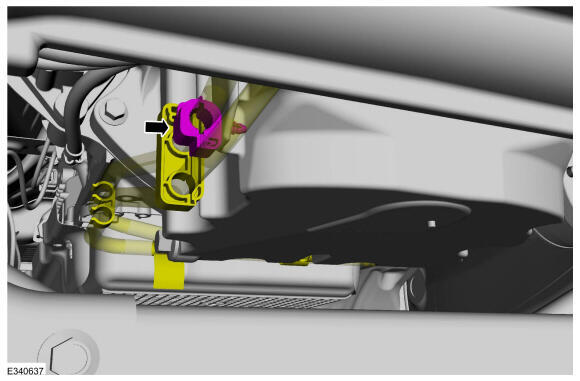

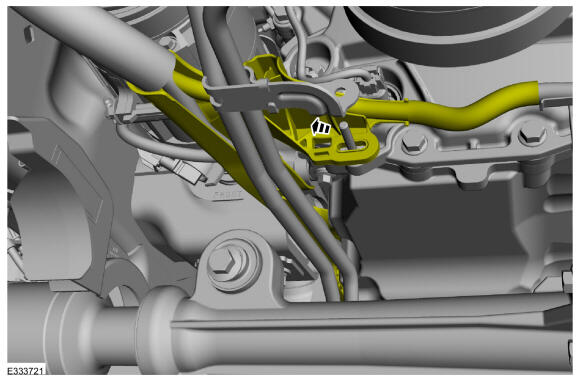

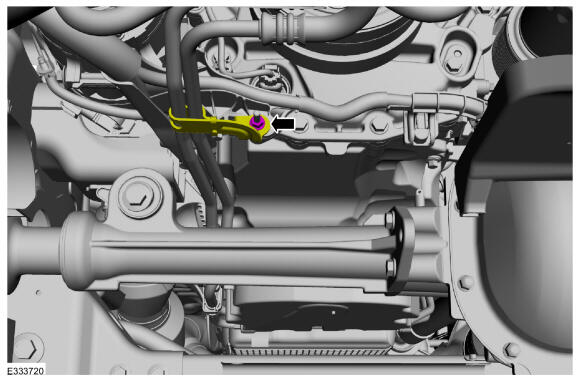

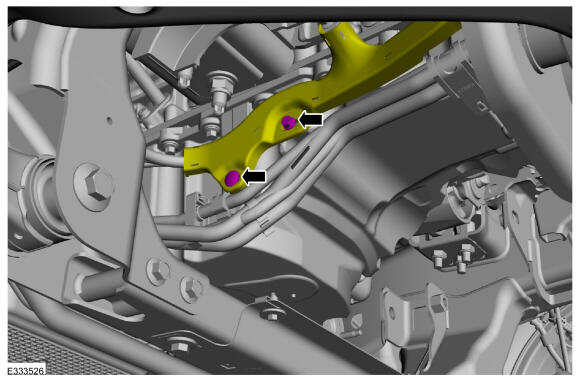

24. Remove the nut and position out the transmission cooler tube bracket.

    Courtesy of FORD MOTOR COMPANY

25. Position out the engine wiring harness.

    Courtesy of FORD MOTOR COMPANY

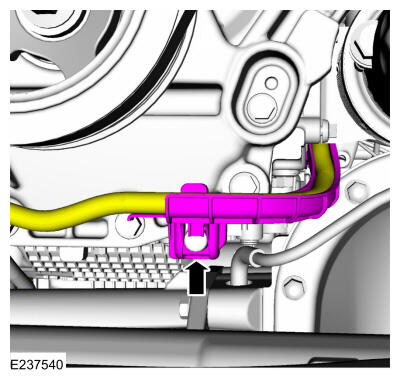

26. Disconnect the generator wiring harness from the engine front cover.

    Courtesy of FORD MOTOR COMPANY

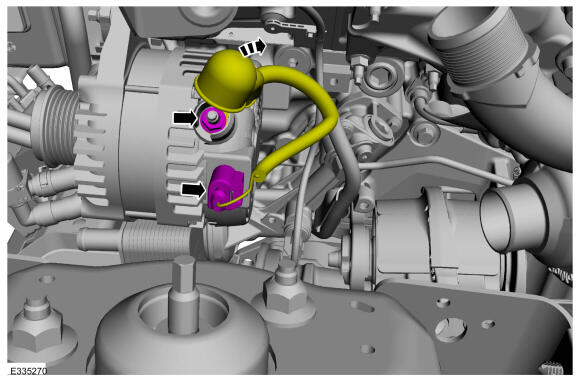

27. • Position back the boot and remove the generator nut.
    • Disconnect the electrical connector and the wire harness retainer.

    Courtesy of FORD MOTOR COMPANY

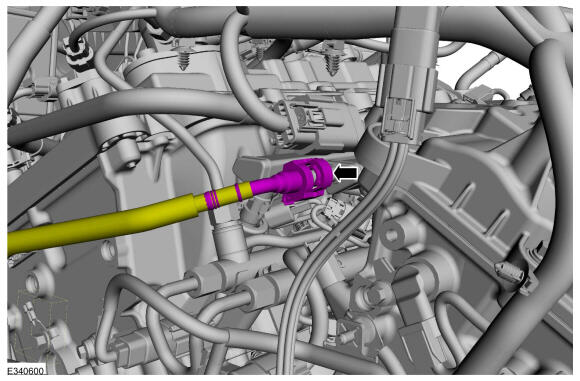

28. Follow directions to release the quick release coupling type 24. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

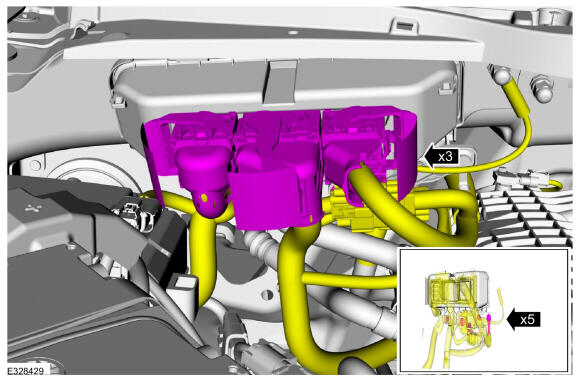

29. Disconnect the PCM electrical connectors and the wire harness retainers.

    Courtesy of FORD MOTOR COMPANY

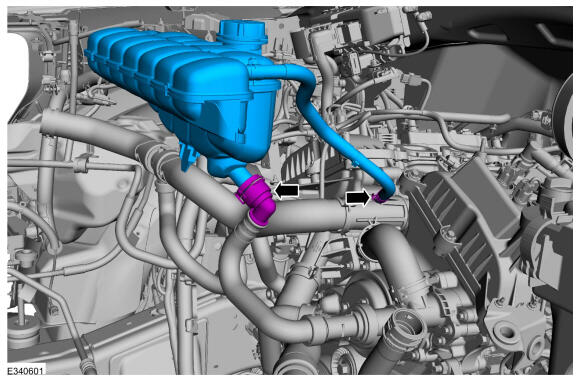

30. Disconnect the degas bottle hose at the thermostat and disconnect the coolant hose from the degas bottle.Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

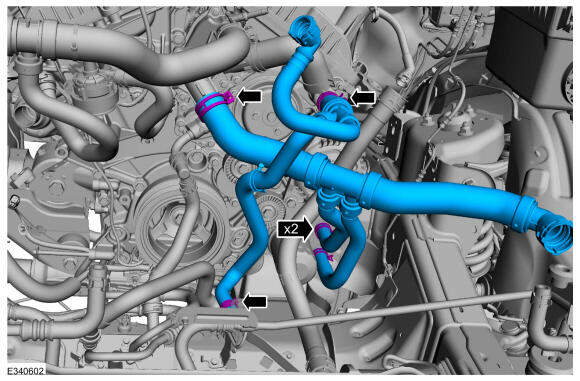

31. • Disconnect and remove the oil cooler cooling hoses.Use the General Equipment: Hose Clamp Remover/Installer
    • Disconnect and remove the coolant control valve hose.Use the General Equipment: Hose Clamp Remover/Installer
    • Disconnect and remove the thermostat housing coolant hose.Use the General Equipment: Hose Clamp Remover/Installer
    • Disconnect and remove the radiator coolant hose.Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

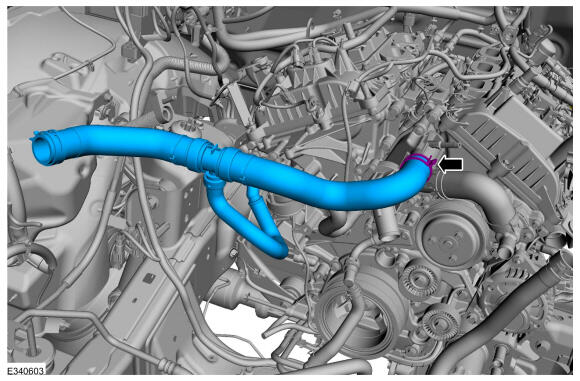

32. Disconnect and remove the upper radiator hose.Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

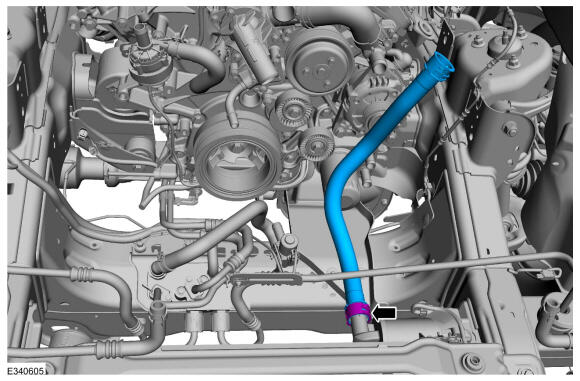

33. Disconnect and remove the lower coolant pump hose.Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

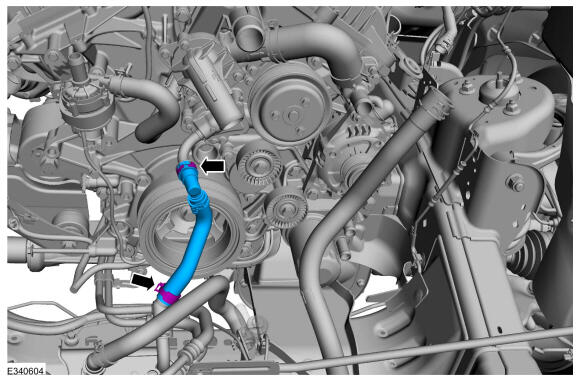

34. Disconnect and remove the TC bypass valve tube.Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

35. Disconnect the ground strap retainers. Remove the nut and the ground strap.

    Courtesy of FORD MOTOR COMPANY

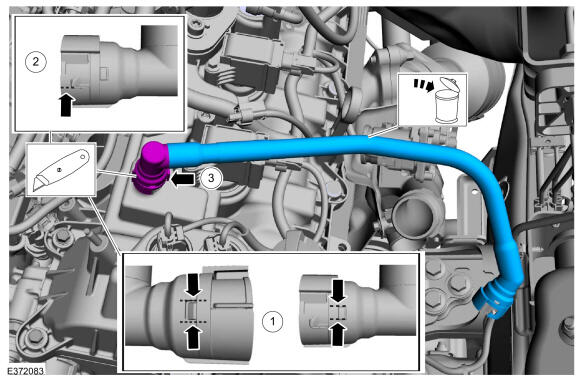

36. 1. Cut the housing above the lock tabs.
    2. Cut the housing arm retainer.
    3. Remove the housing and retainer from the valve cover spigot. Discard the PCV tube.

    Courtesy of FORD MOTOR COMPANY

37. Remove the following items:
    1. Remove the front stabilizer bar. Refer to: Front Stabilizer Bar . Refer to: Front Stabilizer Bar .
    2. If equipped.Remove the front driveshaft. Refer to: Front Driveshaft .
    3. Remove the starter motor. Refer to: Starter Motor .

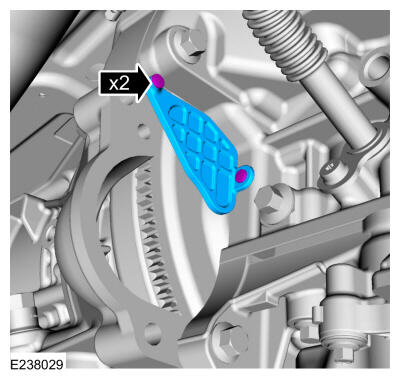

38. Remove the retainers and the access cover.

    Courtesy of FORD MOTOR COMPANY

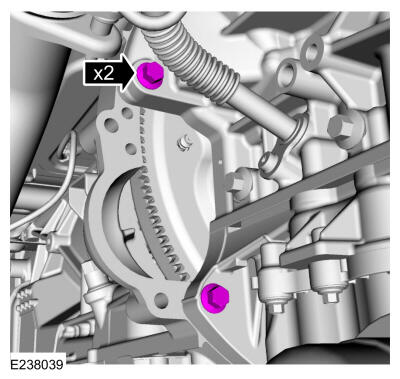

39. NOTE: Index-mark the end of one torque converter stud and the flexplate for installation.
    NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

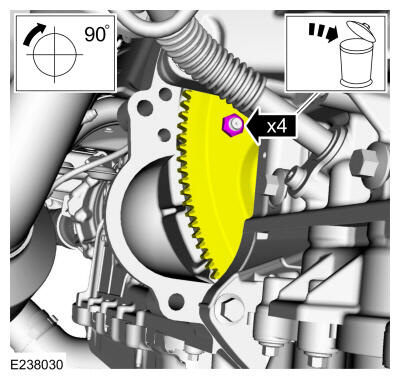

    Remove and discard the torque converter nuts.

    Courtesy of FORD MOTOR COMPANY

40. NOTE: Make sure that the mating faces are clean and free of foreign material.

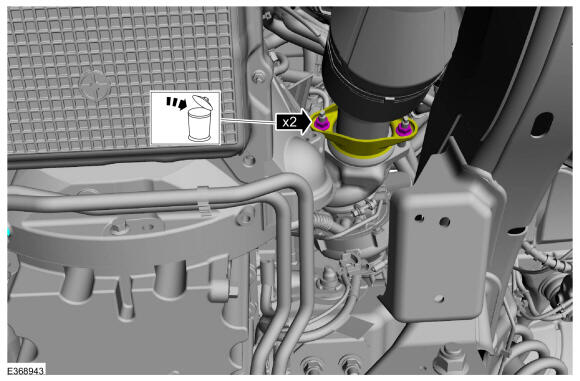

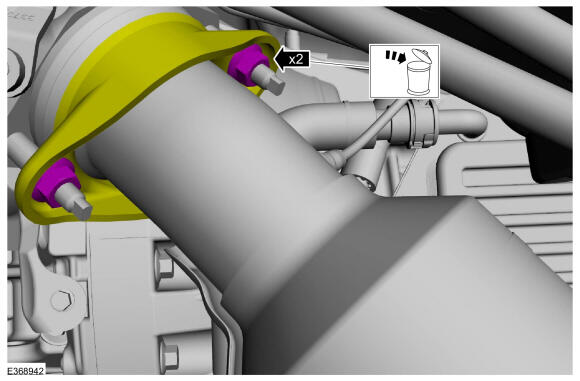

    Remove and discard the LH catalytic converter flange nuts.

    Courtesy of FORD MOTOR COMPANY

41. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Remove and discard the RH catalytic converter flange nuts.

    Courtesy of FORD MOTOR COMPANY

42. NOTE: Make sure that the mating faces are clean and free of foreign material.

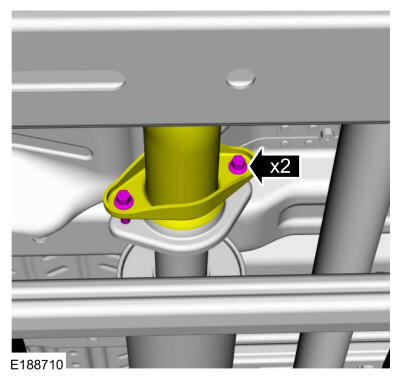

    Remove the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

    Courtesy of FORD MOTOR COMPANY

43. NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmember nuts.

    Courtesy of FORD MOTOR COMPANY

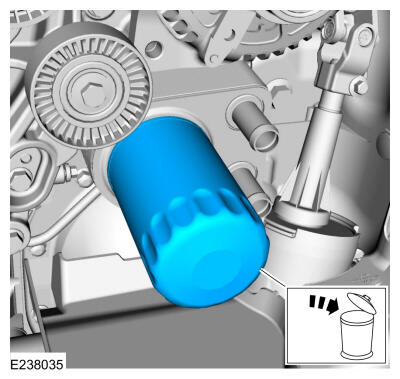

44. Remove and discard the oil filter.Use the General Equipment: Oil Drain Equipment

    Courtesy of FORD MOTOR COMPANY

45. NOTE: Mark the location of the bolts during removal.

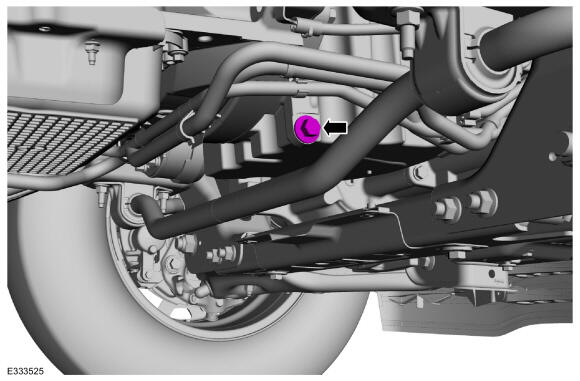

    Remove the lower bellhousing bolt.

    Courtesy of FORD MOTOR COMPANY

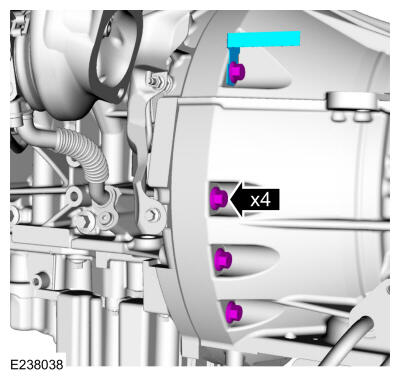

46. Remove the upper bellhousing bolts.

    Courtesy of FORD MOTOR COMPANY

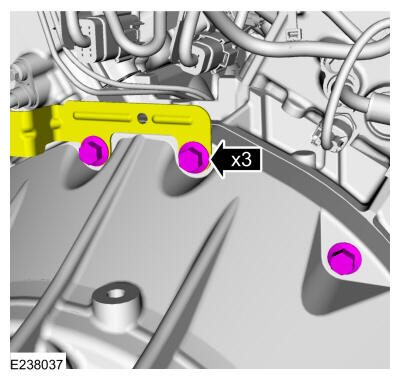

47. Remove the LH side bellhousing bolts and the shift cable bracket.

    Courtesy of FORD MOTOR COMPANY

48. Remove the RH side bellhousing bolts.

    Courtesy of FORD MOTOR COMPANY

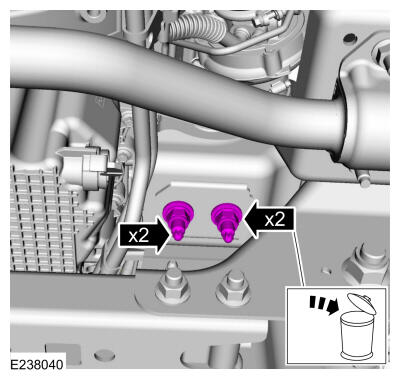

49. NOTE: Only use hand tools when removing the engine mount nuts and studs or damage to the engine mount can occur.
    NOTE: The engine mount studs may come off with the nuts.

    Remove and discard the RH engine mount nuts. Remove the engine mount studs.

    Courtesy of FORD MOTOR COMPANY

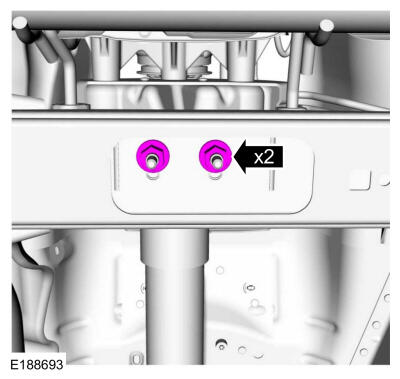

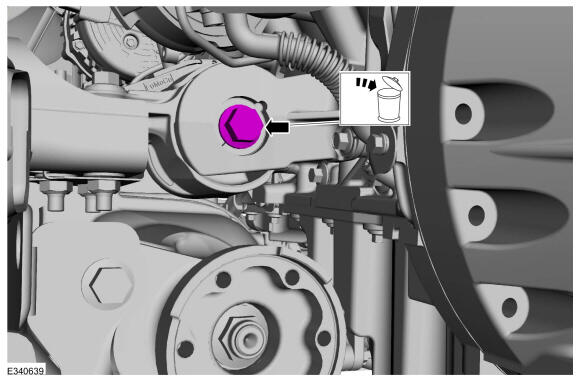

50. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the LH engine mount through bolt.

    Courtesy of FORD MOTOR COMPANY

51. NOTE: Do not support the transmission by the fluid pan, failure to follow instruction may result in serious damage to the transmission.

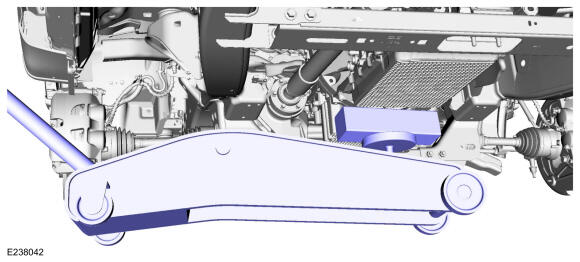

    Support the bellhousing of the transmission with a suitable floor jack and a block of wood.Use the General Equipment: Trolley JackUse the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

52. NOTE: Only use hand tools when loosening or tightening the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.
    NOTE: Leave the LH engine mount in place.

    Remove and discard the LH engine mount bolts.

    Courtesy of FORD MOTOR COMPANY

53. Remove the right rear ignition coil. Refer to: Ignition Coil-On-Plug .
54. NOTE: The use of a ratchet strap may be needed to level the engine.
    NOTE: Use a commercially available quick link on the chain to minimize the spread of the chain.

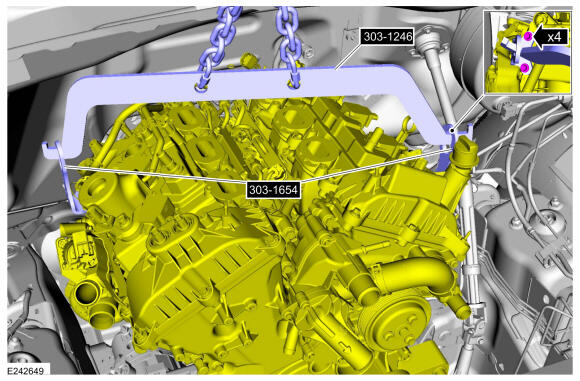

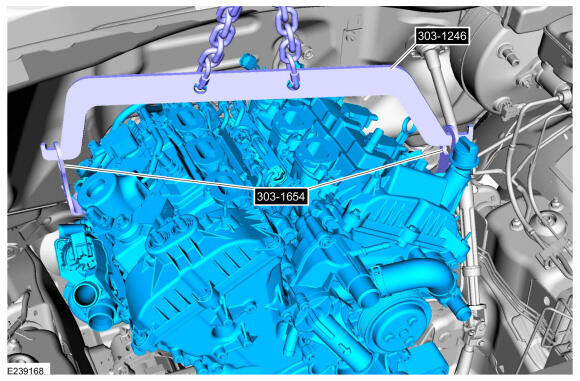

    • Install the engine spreader bar, lift eyes and the floor crane.Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes.Use the General Equipment: Floor Crane

      Torque: 25 Nm

    • Using the floor crane, lift eyes and the engine spreader bar, lift the engine.

    Courtesy of FORD MOTOR COMPANY

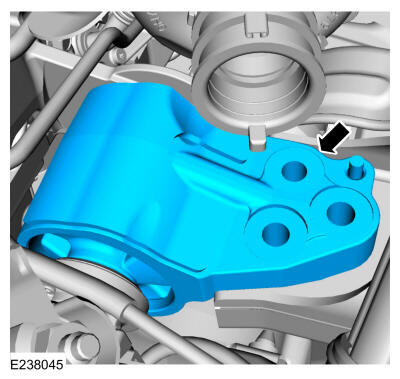

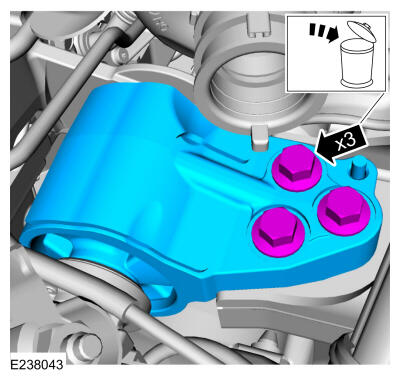

55. Remove the LH engine mount.

    Courtesy of FORD MOTOR COMPANY

56. Disconnect and position aside the generator wiring harness from the engine.

    Courtesy of FORD MOTOR COMPANY

57. Using the floor crane, lift eyes and the engine spreader bar, remove the engine.Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes.Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

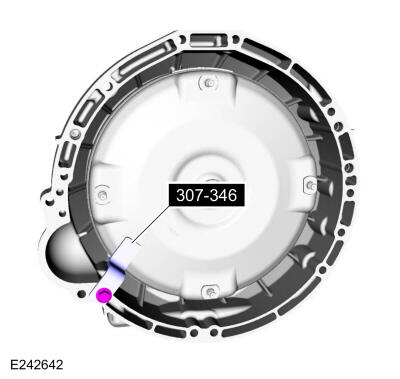

58. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
