System Diagram

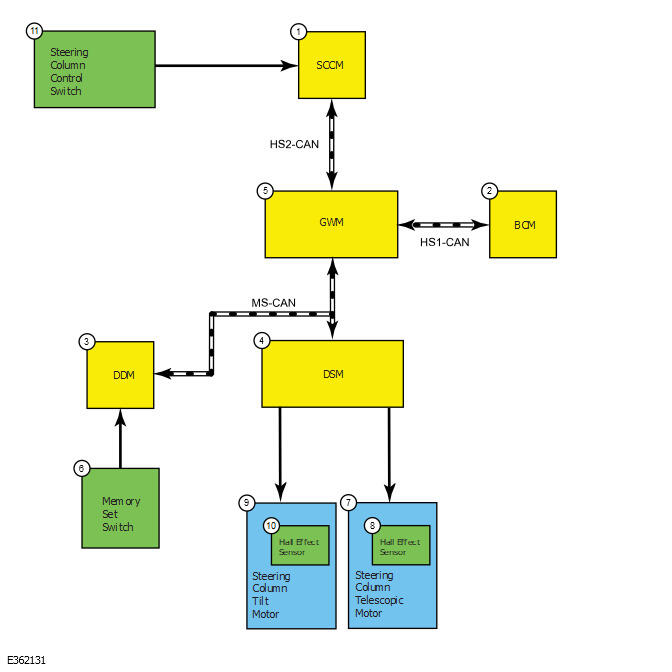

GFD858852Courtesy of FORD MOTOR COMPANY
Item Description
1 SCCM
2 BCM
3 DDM
4 DSM
5 GWM
6 Memory Set Switch
7 Steering Column Telescopic Motor
8 Hall Effect Sensor
9 Steering Column Tilt Motor
10 Hall Effect Sensor
11 Steering Column Control Switch
