Positive Crankcase Ventilation (PCV) Valve: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the engine appearance cover retainers, release the engine appearance cover from the rear retainers and then remove the engine appearance cover.
    GFD859966Courtesy of FORD MOTOR COMPANY
  2. Refer to: Crankcase Ventilation Tube .

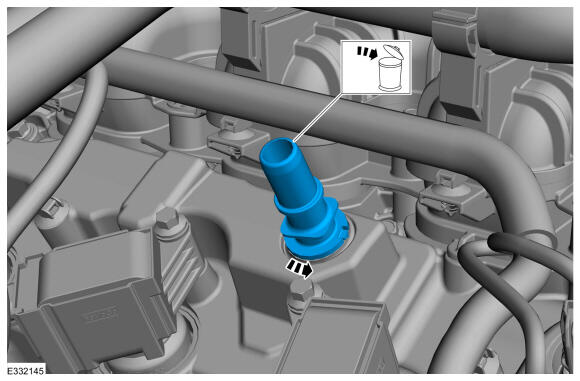

  3. Rotate the PCV valve counterclockwise, then remove and discard the PCV valve.
GFD860006Courtesy of FORD MOTOR COMPANY
