Timing Chain Tensioner: Installation

LH timing chain tensioner

1. Position the tensioner in a soft-jawed vise.

   Courtesy of FORD MOTOR COMPANY

2. NOTE: Use of a commercially available tools with a curved radius in the range of 10mm - 15mm is suggested for use in resetting the ratchet clip. Examples are a 8mm closed end wrench, 12x12mm piece of bar stock, T40 to T50 Torx screwdriver or 3/8 wobble style socket extender.

   Using a commercially available wrench, push down on the ratchet clip so the ratchet clip pushes outward.

   Courtesy of FORD MOTOR COMPANY

3. 1. Using the soft-jawed vise, compress the piston to the reset position.
   2. Install a locking pin in the 2 holes of the tensioner body to hold the piston in place.
   3. Remove the commercially available tool and the tensioner.

   Courtesy of FORD MOTOR COMPANY

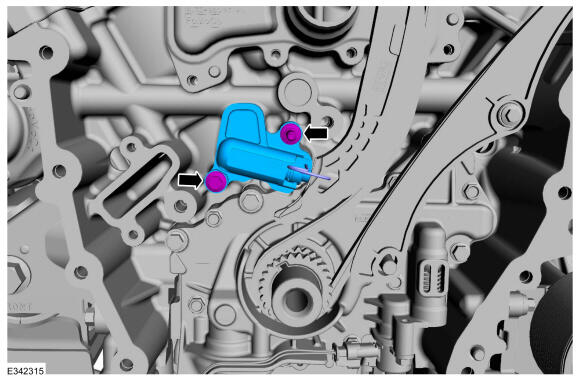

4. Position the LH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm and install the fasteners.

   Torque: Stage 1: 10 Nm Stage 2: 30deg.

   Courtesy of FORD MOTOR COMPANY

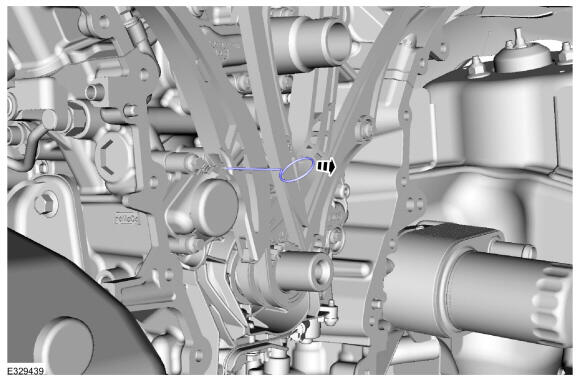

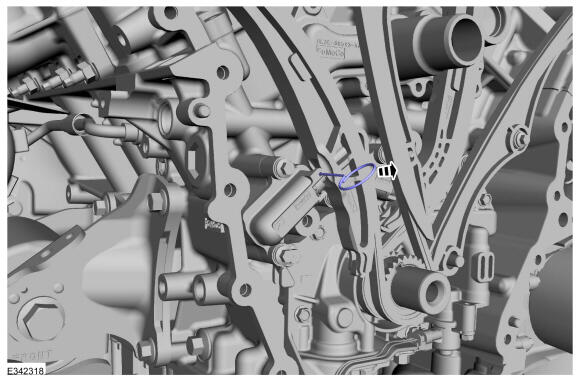

5. Remove the tensioner pin.

   Courtesy of FORD MOTOR COMPANY

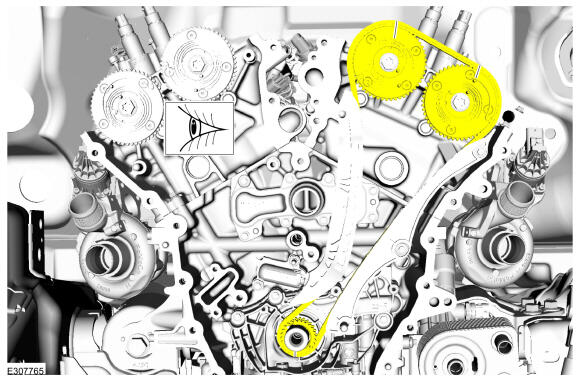

6. Verify all scribe marks align.

   Courtesy of FORD MOTOR COMPANY

7. NOTE: The crankshaft sprocket is reversible with a timing mark on each face. For installation of each timing chain, utilize the timing mark on the front face of the crankshaft sprocket for chain alignment.
   1. Install the RH timing chain with the single colored links aligned with the timing marks on the VCT units.
   2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

   Courtesy of FORD MOTOR COMPANY

8. Install the RH timing chain tensioner arm.

   Courtesy of FORD MOTOR COMPANY

9. Position the tensioner in a soft-jawed vise.

   Courtesy of FORD MOTOR COMPANY

10. NOTE: Use of a commercially available tools with a curved radius in the range of 10mm - 15mm is suggested for use in resetting the ratchet clip. Examples are a 8mm closed end wrench, 12x12mm piece of bar stock, T40 to T50 Torx screwdriver or 3/8 wobble style socket extender.

    Using a commercially available wrench, push down on the ratchet clip so the ratchet clip pushes outward.

    Courtesy of FORD MOTOR COMPANY

11. 1. Using the soft-jawed vise, compress the piston to the reset position.
    2. Install a locking pin in the 2 holes of the tensioner body to hold the piston in place.
    3. Remove the commercially available tool and the tensioner.

    Courtesy of FORD MOTOR COMPANY

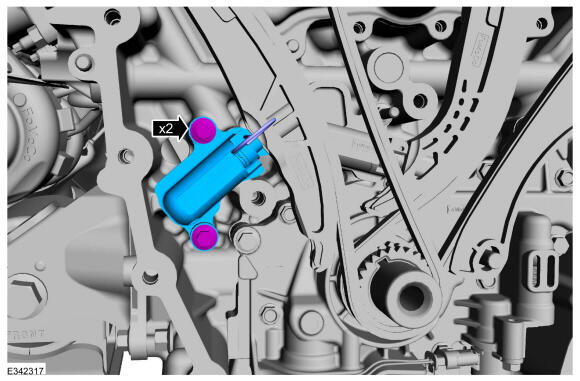

12. Position the RH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm and install the fasteners.

    Torque: Stage 1: 10 Nm Stage 2: 30deg.

    Courtesy of FORD MOTOR COMPANY

13. Install the RH timing chain guide and bolts.

    Torque: Stage 1: 10 Nm Stage 2: 30deg.

    Courtesy of FORD MOTOR COMPANY

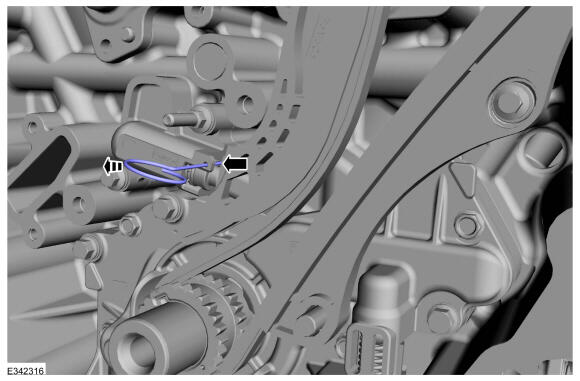

14. Remove the tensioner pins.

    Courtesy of FORD MOTOR COMPANY

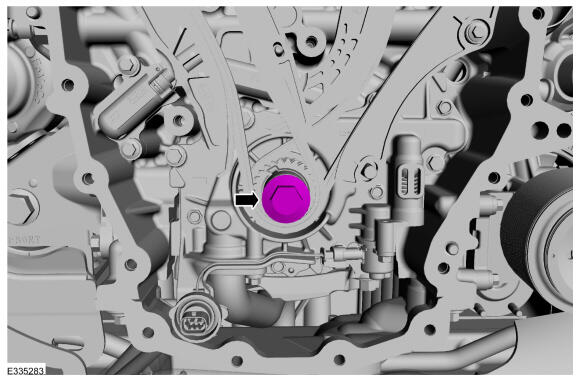

15. Remove the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

16. Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

    Courtesy of FORD MOTOR COMPANY

    RH timing chain tensioner

17. Position the tensioner in a soft-jawed vise.

    Courtesy of FORD MOTOR COMPANY

18. NOTE: Use of a commercially available tools with a curved radius in the range of 10mm - 15mm is suggested for use in resetting the ratchet clip. Examples are a 8mm closed end wrench, 12x12mm piece of bar stock, T40 to T50 Torx screwdriver or 3/8 wobble style socket extender.

    Using a commercially available wrench, push down on the ratchet clip so the ratchet clip pushes outward.

    Courtesy of FORD MOTOR COMPANY

19. 1. Using the soft-jawed vise, compress the piston to the reset position.
    2. Install a locking pin in the 2 holes of the tensioner body to hold the piston in place.
    3. Remove the commercially available tool and the tensioner.

    Courtesy of FORD MOTOR COMPANY

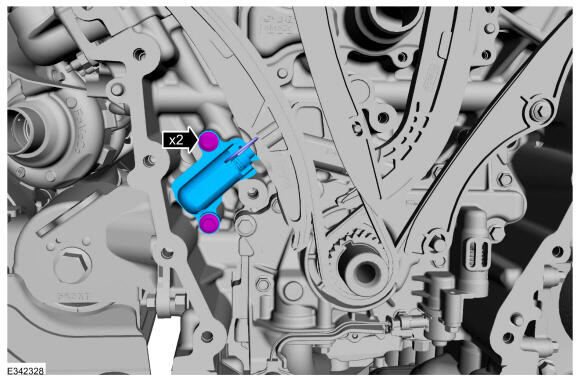

20. Position the RH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm and install the fasteners.

    Torque: 10 Nm

    Courtesy of FORD MOTOR COMPANY

21. Remove the tensioner pin.

    Courtesy of FORD MOTOR COMPANY

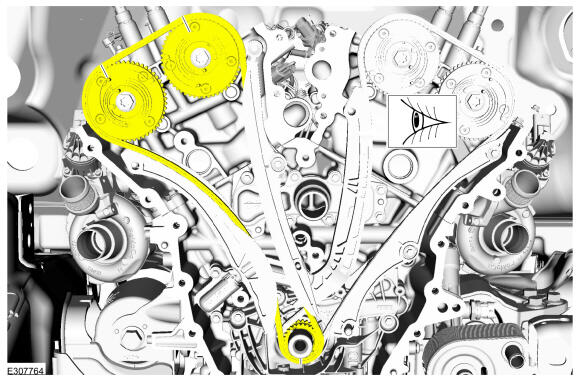

22. Verify all scribe marks align.

    Courtesy of FORD MOTOR COMPANY

    RH and LH tensioners

23. Install the engine front cover. Refer to: Engine Front Cover .
