Vehicle Dynamic Systems

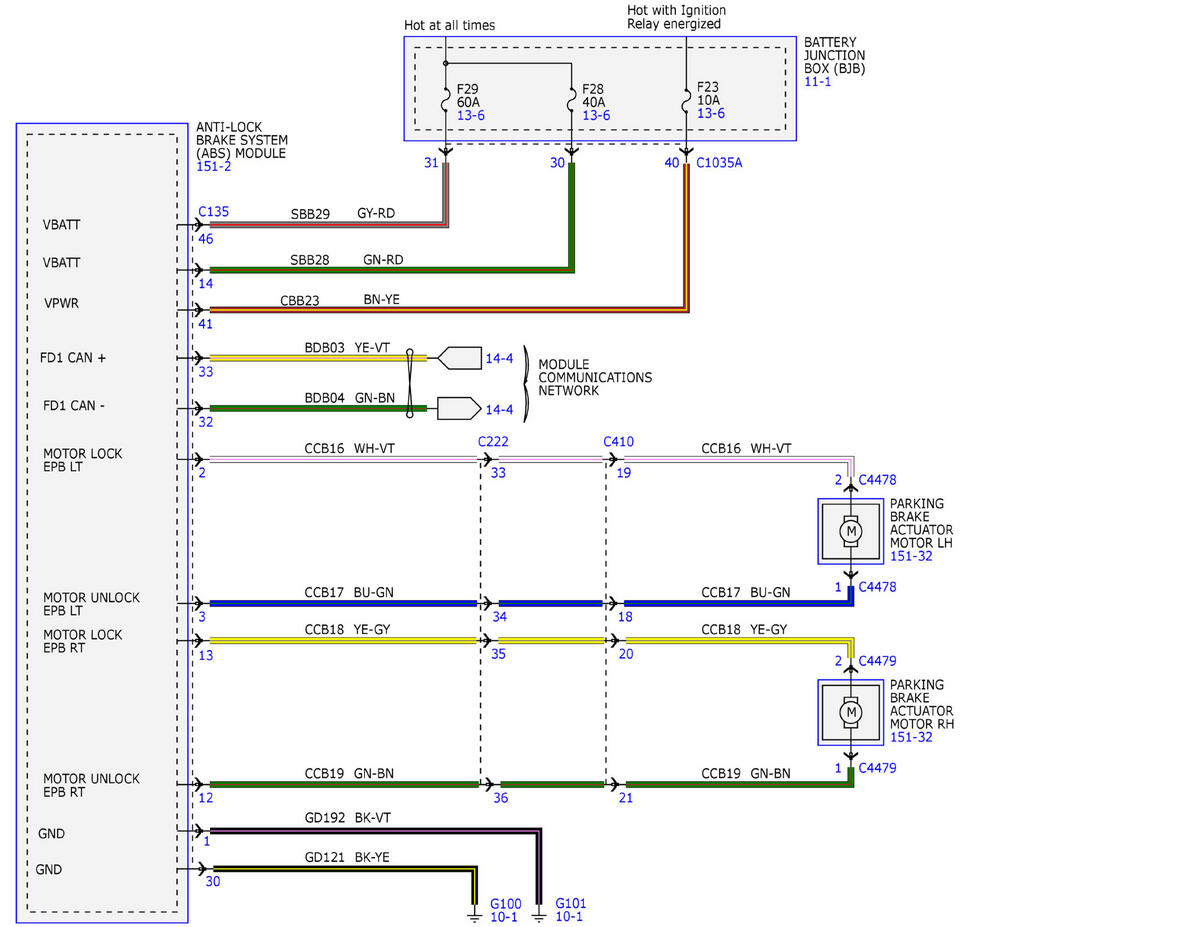

Fig 1: Vehicle Dynamic Systems (1 Of 4)
GFDWR231524Courtesy of FORD MOTOR COMPANY

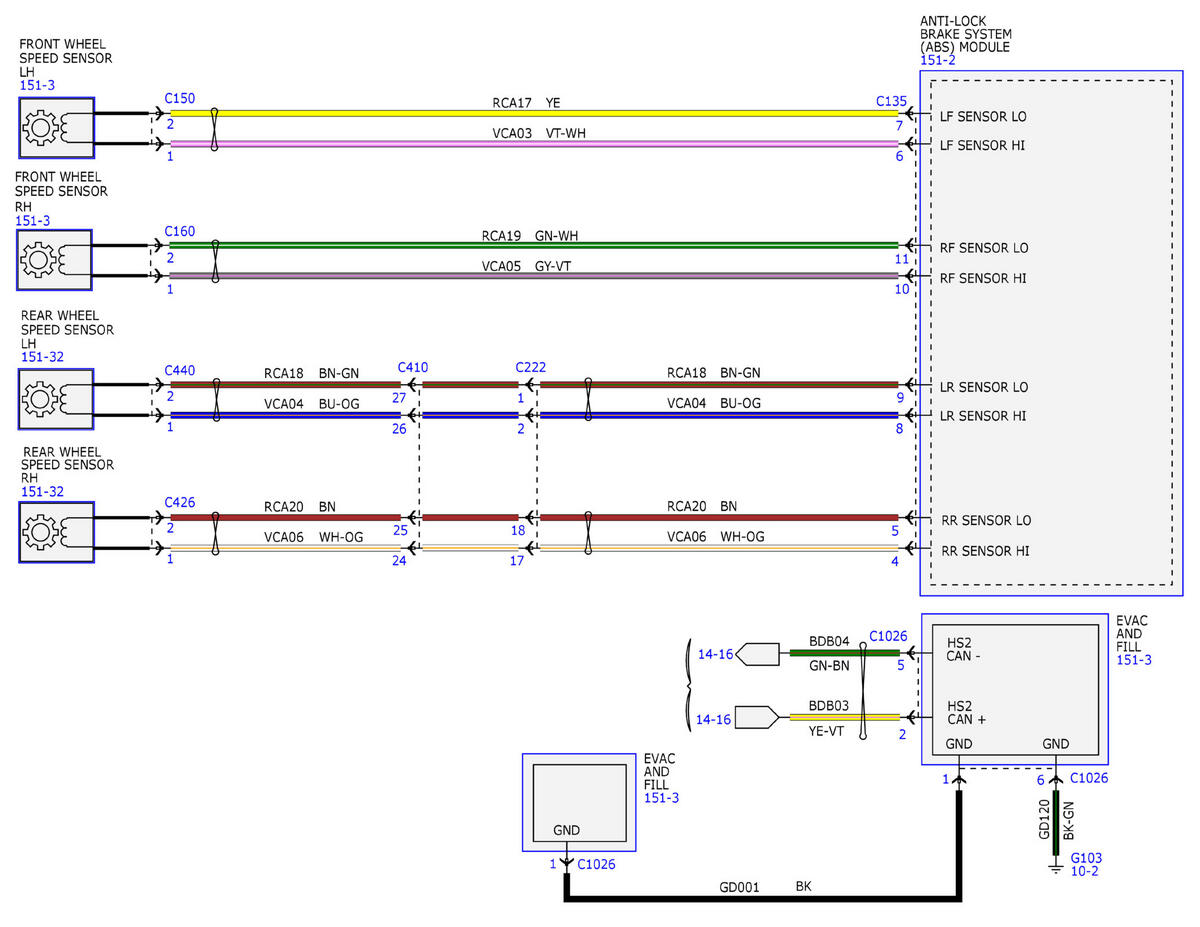

Fig 2: Vehicle Dynamic Systems (2 Of 4)
GFDWR231525Courtesy of FORD MOTOR COMPANY

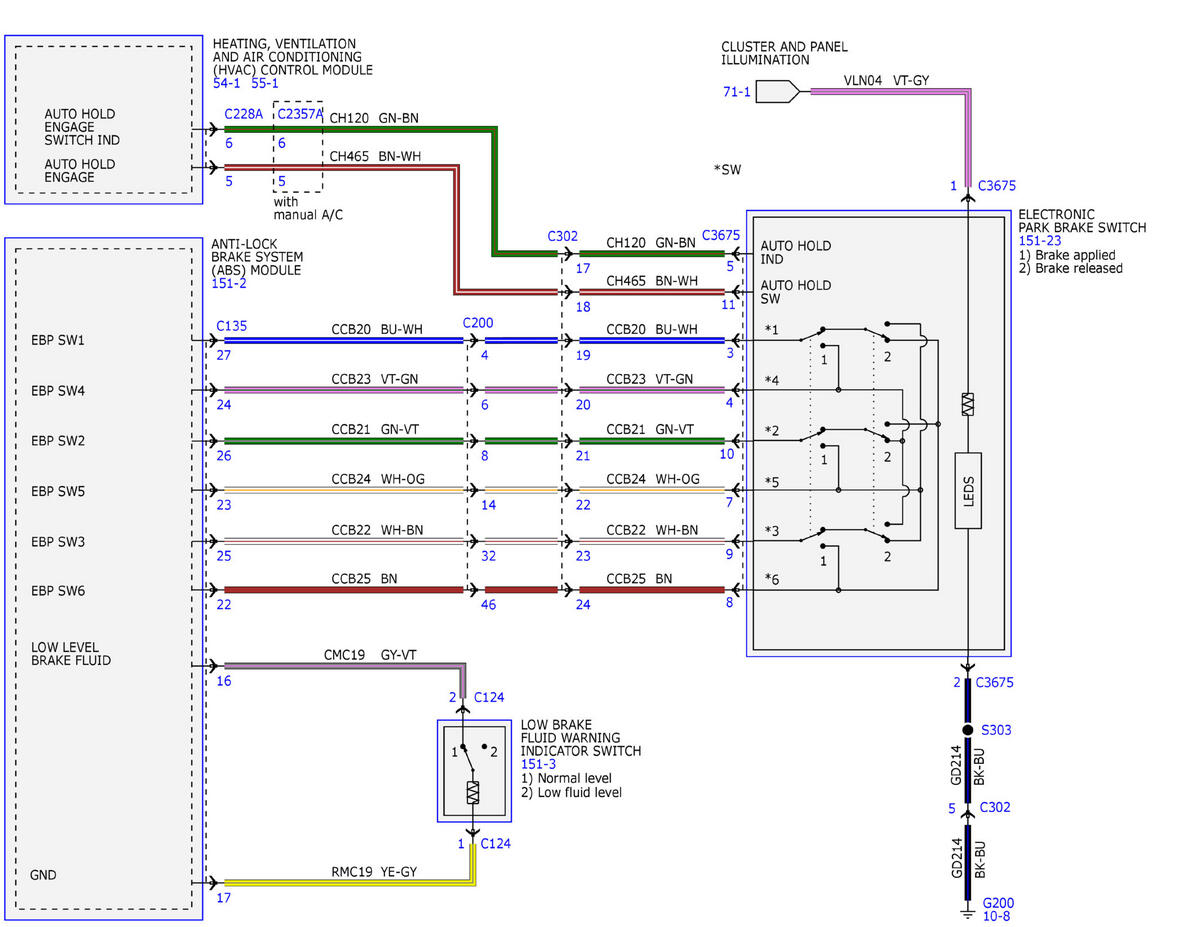

Fig 3: Vehicle Dynamic Systems (3 Of 4)
GFDWR231526Courtesy of FORD MOTOR COMPANY

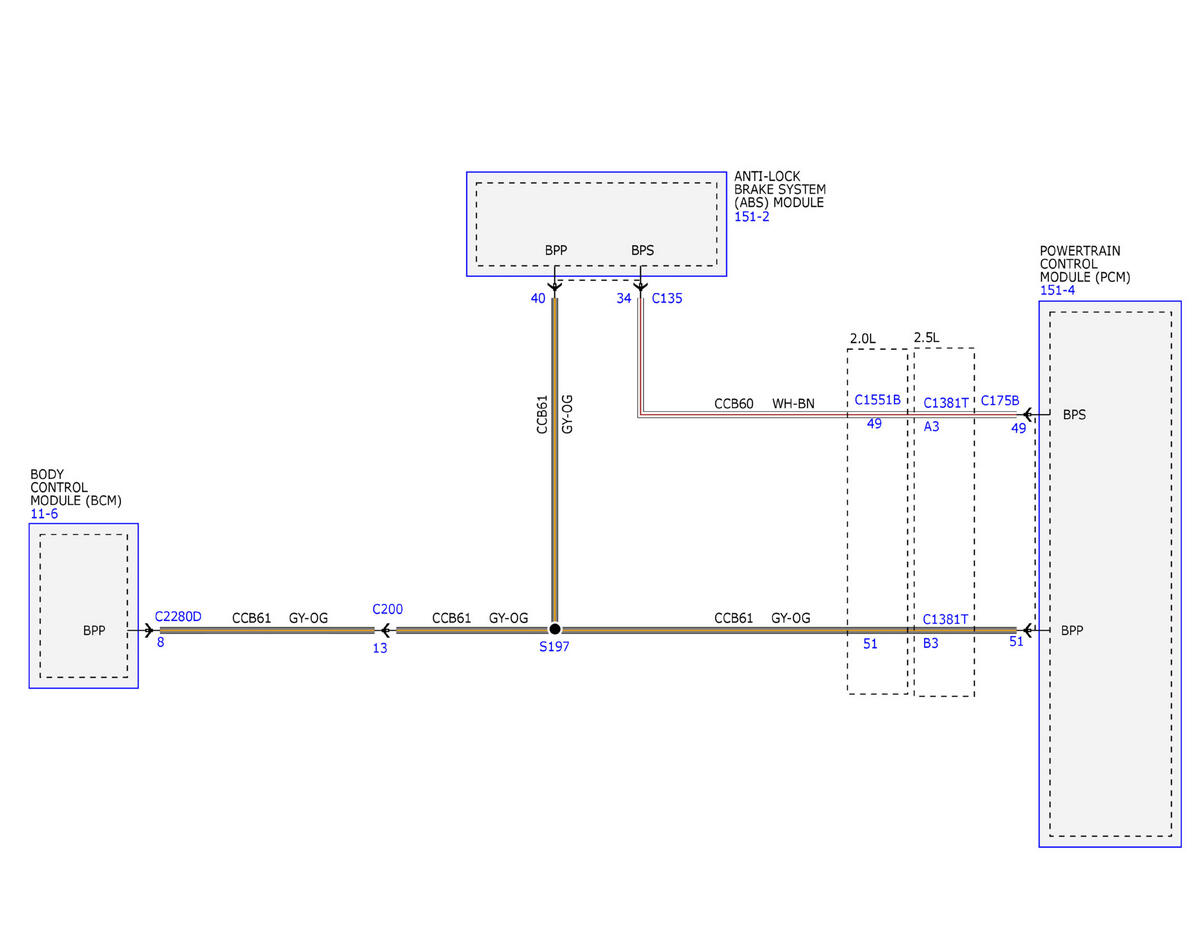

Fig 4: Vehicle Dynamic Systems (4 Of 4)
GFDWR231527Courtesy of FORD MOTOR COMPANY
