Memory Seats

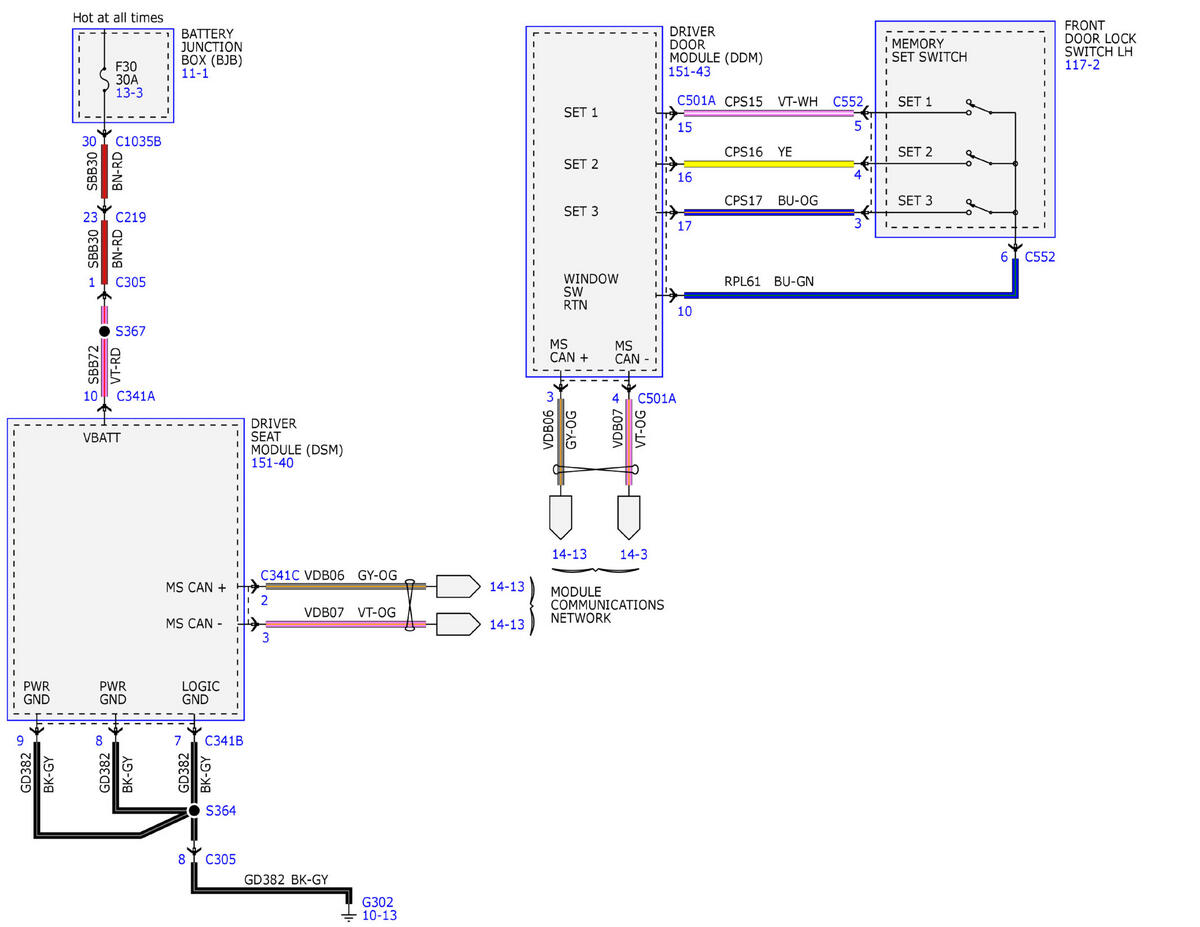

Fig 1: Memory Seats (1 Of 4)
GFDWR231355Courtesy of FORD MOTOR COMPANY

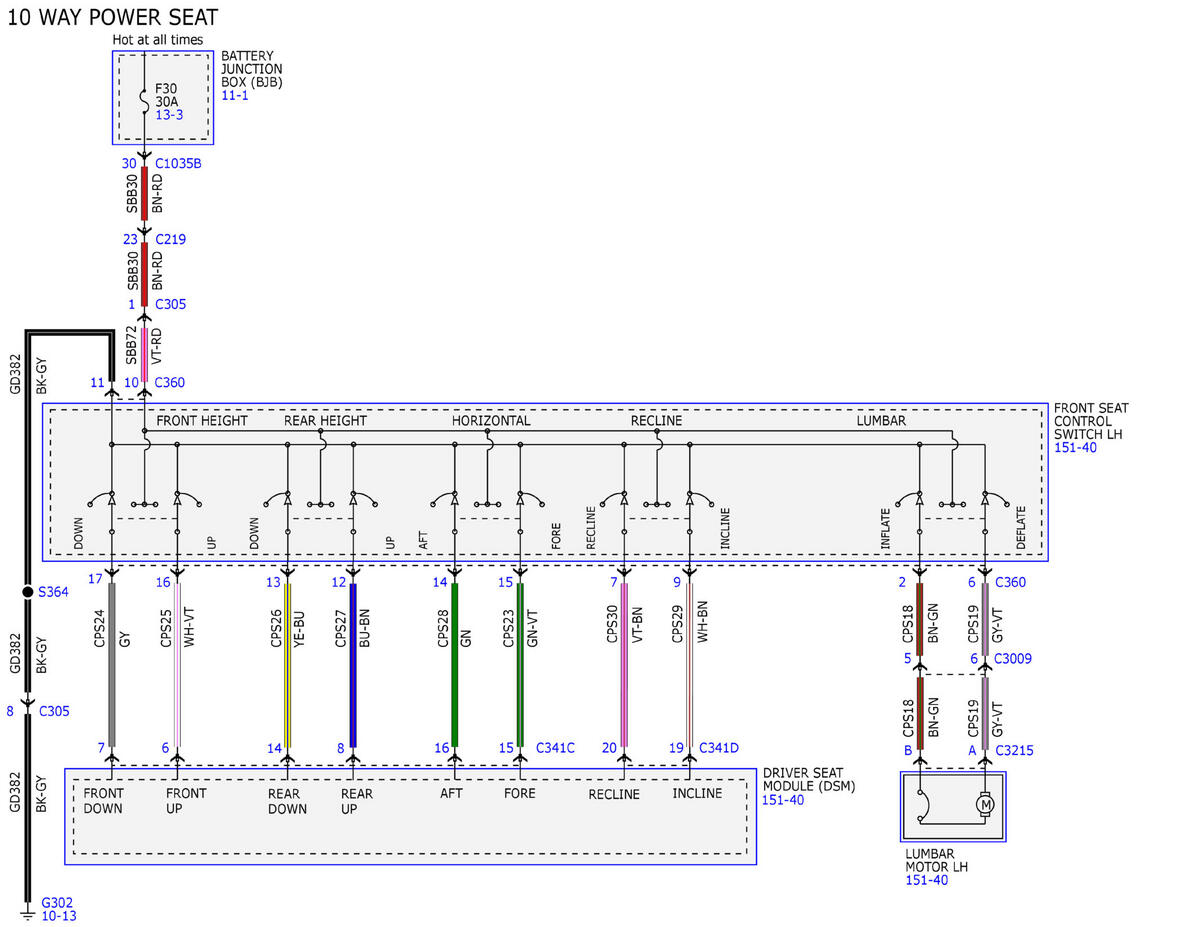

Fig 2: Memory Seats (2 Of 4)
GFDWR231356Courtesy of FORD MOTOR COMPANY

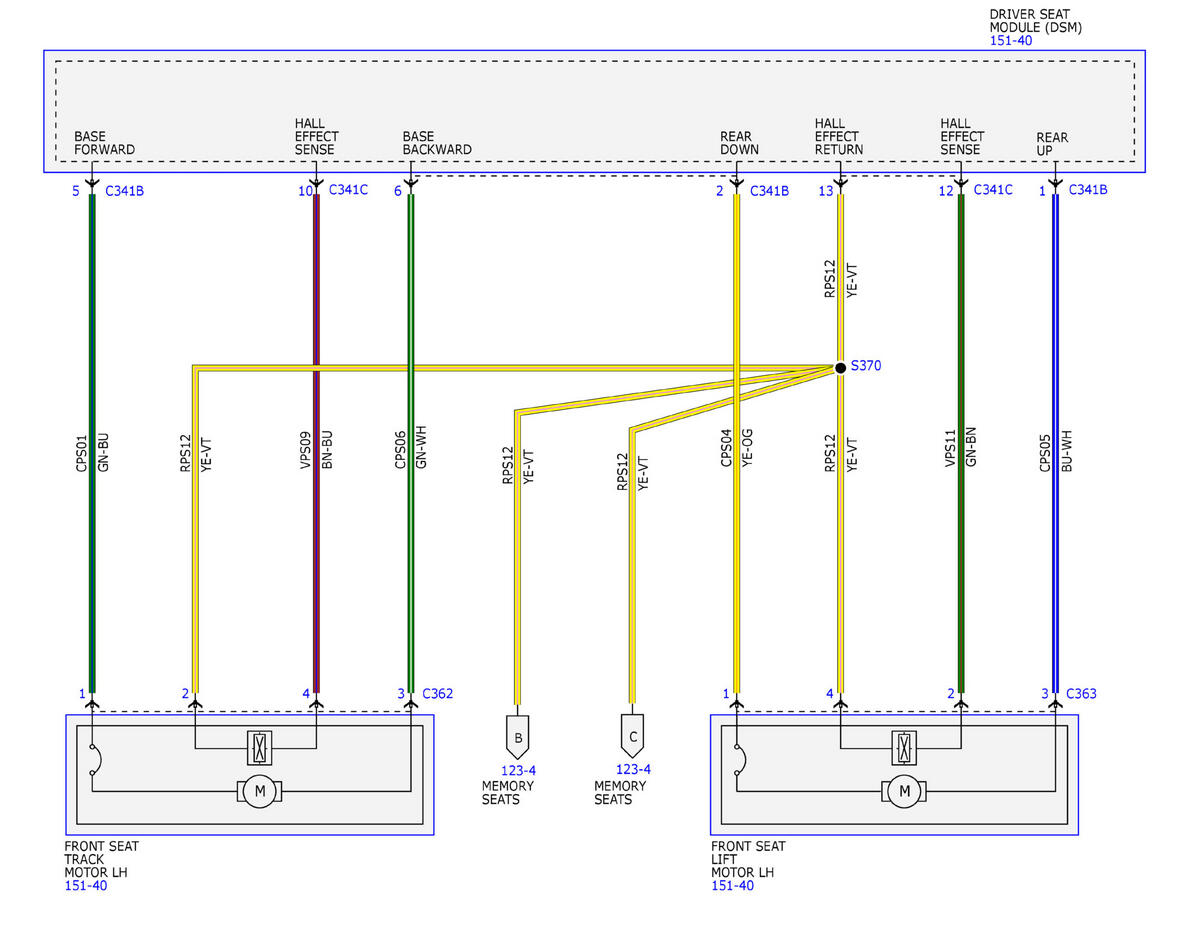

Fig 3: Memory Seats (3 Of 4)
GFDWR231357Courtesy of FORD MOTOR COMPANY

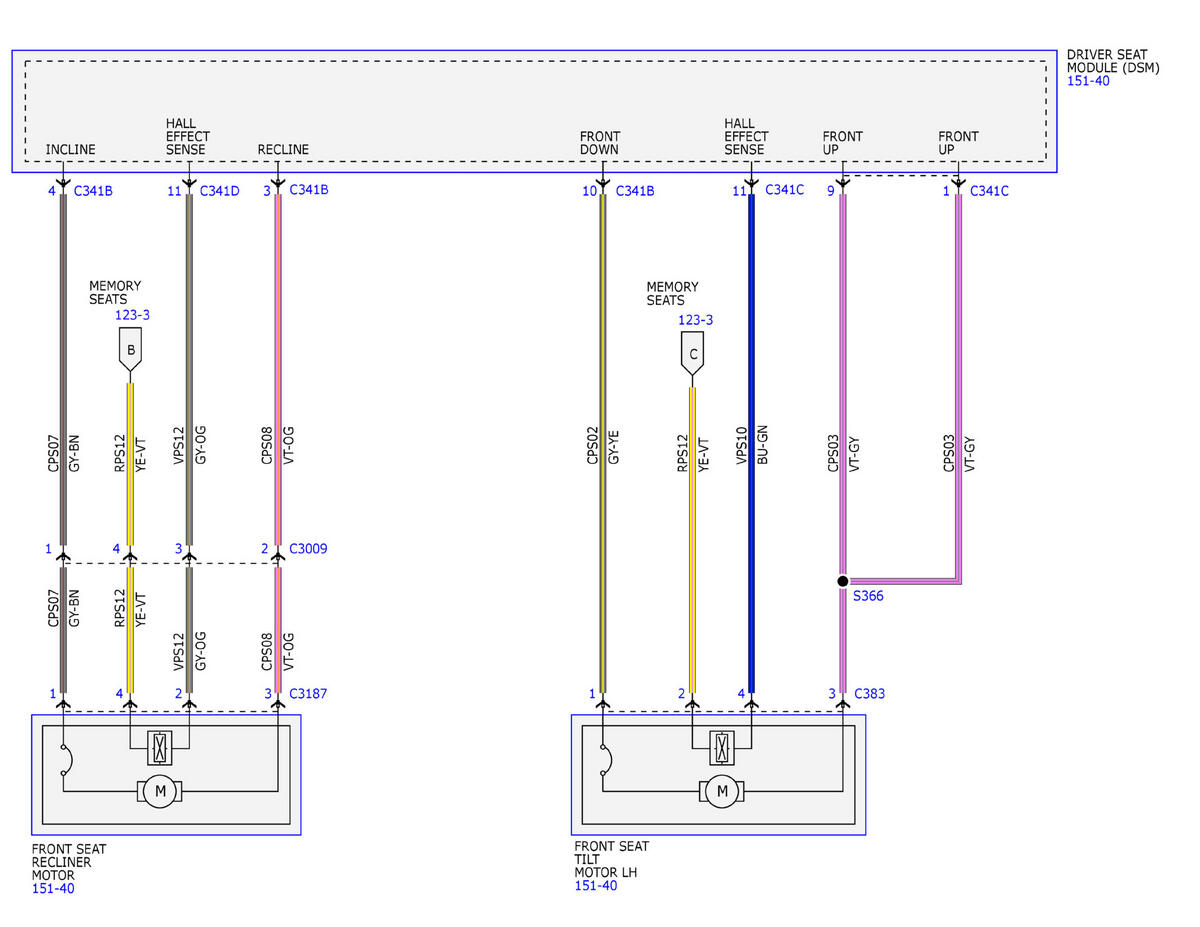

Fig 4: Memory Seats (4 Of 4)
GFDWR231358Courtesy of FORD MOTOR COMPANY
