Relay - Power ISO

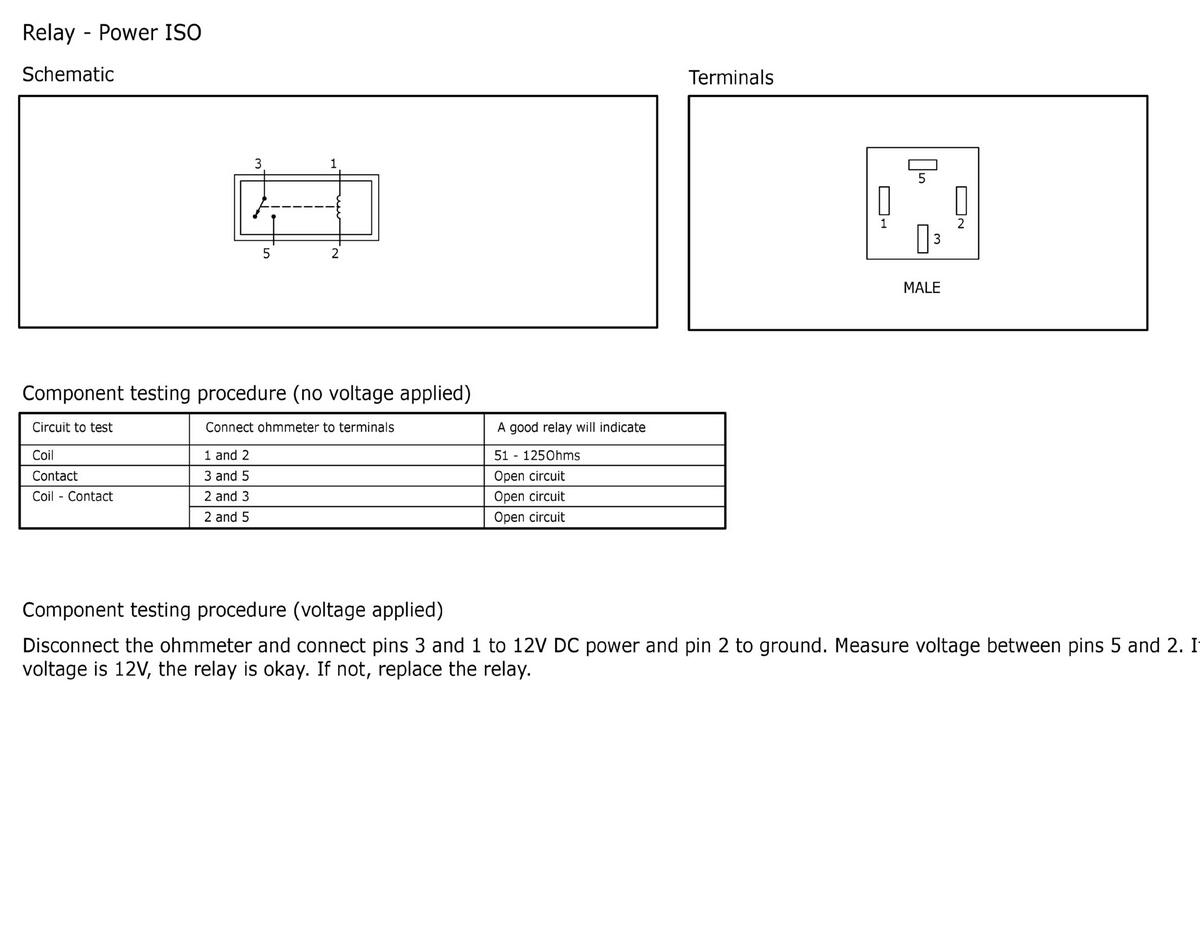

Fig 1: Relay - Power ISO Component Testing

GFDWR231541

Courtesy of FORD MOTOR COMPANY
