Ignition Coil-On-Plug: Installation

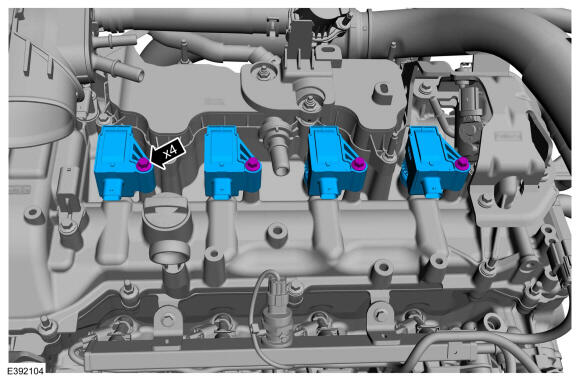

Install the ignition coil-on-plug assemblies, then install and tighten the ignition coil-on-plug retainers.
Torque

: 11 Nm

Courtesy of FORD MOTOR COMPANY

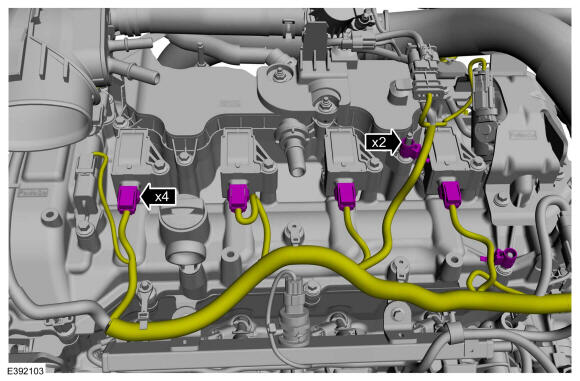

- Attach the wiring harness retainers.
- Push the wire harness side connector onto the ignition coil-on-plug connector until locked. A clicking sound will be heard when fully seated. Slide the red locking tab (CPA) toward the ignition coil-on-plug until a second clicking sound is heard.
Courtesy of FORD MOTOR COMPANY
Install the Air Cleaner Outlet Pipe. Refer to: Air Cleaner Outlet Pipe .
