Electric Powertrain Control - Component Location

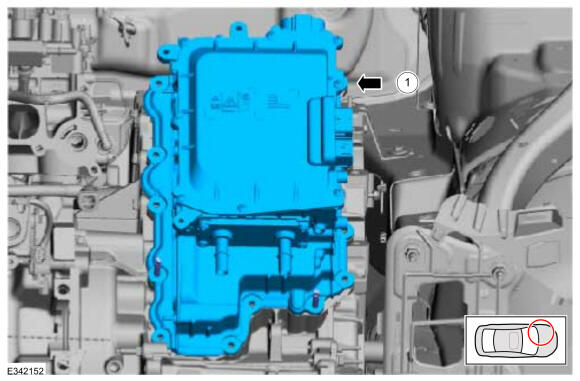

Inverter System Controller

GFD828928Courtesy of FORD MOTOR COMPANY
Item Description
1 Inverter System Controller

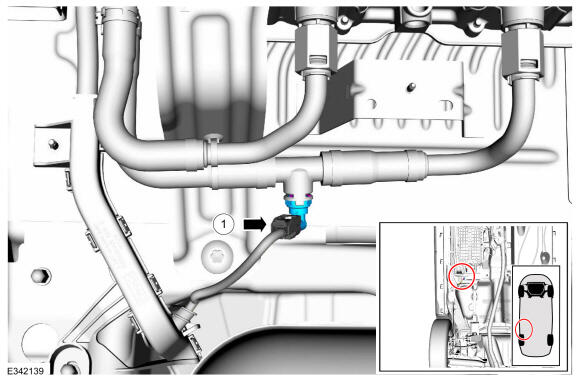

High Voltage Battery Coolant Temperature Sensor

GFD828929Courtesy of FORD MOTOR COMPANY
Item Description
1 High Voltage Battery Coolant Temperature Sensor
