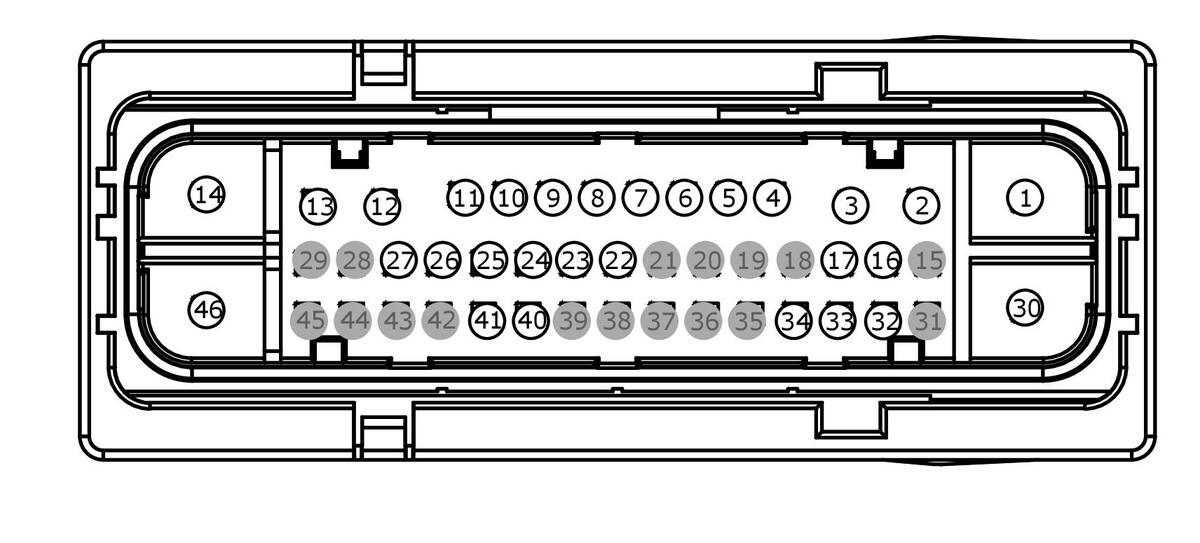

Connector End View C135 - Anti-Lock Brake System (Abs) Module

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C135	ANTI-LOCK BRAKE SYSTEM (ABS) MODULE	14290			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14474-LBB	EU2Z-14474-AB	2.80
CU5T-14474-EB	DU2Z-14474-CAFC	0.64
1C1T-14474-AA	KU2Z-14474-AA	6.30
97BG-14474-CFA	KU2Z-14474-AA	6.30

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD192 (BK-VT)	8	GROUND - FENDER FRONT LEFT # 5TH POINT	1C1T-14474-AA
2	CCB16 (WH-VT)	12	ECU - ELEC.PARK BRAKE # EPB MOTOR LEFT LOCK (+)	DU5T-14474-LBB
3	CCB17 (BU-GN)	12	ECU - ELEC.PARK BRAKE # EPB MOTOR LEFT UNLOCK (-)	DU5T-14474-LBB
4	VCA06 (WH-OG)	22	SENSOR - PASSIVE WHEEL SPEED RIGHT REAR	CU5T-14474-EB
5	RCA20 (BN)	22	ECU - SENSOR WHEEL SPEED RIGHT REAR	CU5T-14474-EB
6	VCA03 (VT-WH)	20	SENSOR - PASSIVE WHEEL SPEED LEFT FRONT	CU5T-14474-EB
7	RCA17 (YE)	20	ECU - SENSOR WHEEL SPEED LEFT FRONT	CU5T-14474-EB
8	VCA04 (BU-OG)	22	SENSOR - PASSIVE WHEEL SPEED LEFT REAR	CU5T-14474-EB
9	RCA18 (BN-GN)	22	ECU - SENSOR WHEEL SPEED LEFT REAR	CU5T-14474-EB
10	VCA05 (GY-VT)	20	SENSOR - PASSIVE WHEEL SPEED RIGHT FRONT	CU5T-14474-EB
11	RCA19 (GN-WH)	20	ECU - SENSOR WHEEL SPEED RIGHT FRONT	CU5T-14474-EB
12	CCB19 (GN-BN)	12	ECU - ELEC.PARK BRAKE # EPB MOTOR RIGHT UNLOCK (-)	DU5T-14474-LBB
13	CCB18 (YE-GY)	12	ECU - ELEC.PARK BRAKE # EPB MOTOR RIGHT LOCK (+)	DU5T-14474-LBB
14	SBB28 (GN-RD)	10	FUSE - 28 OR CIRCUIT BREAKER	97BG-14474-CFA
15	*	*	Not Used	N/A
16	CMC19 (GY-VT)	20	SWITCH - LOW LEVEL BRAKE FLUID	CU5T-14474-EB
17	RMC19 (YE-GY)	20	SWITCH - LOW LEVEL BRAKE FLUID	CU5T-14474-EB
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	CCB25 (BN)	22	ECU - ELEC.PARK BRAKE # SWITCH INPUT 6	CU5T-14474-EB
23	CCB24 (WH-OG)	22	ECU - ELEC.PARK BRAKE # SWITCH INPUT 5	CU5T-14474-EB
24	CCB23 (VT-GN)	22	ECU - ELEC.PARK BRAKE # SWITCH INPUT 4	CU5T-14474-EB
25	CCB22 (WH-BN)	22	ECU - ELEC.PARK BRAKE # SWITCH SUPPLY 3	CU5T-14474-EB
26	CCB21 (GN-VT)	22	ECU - ELEC.PARK BRAKE # SWITCH SUPPLY 2	CU5T-14474-EB
27	CCB20 (BU-WH)	22	ECU - ELEC.PARK BRAKE # SWITCH SUPPLY 1	CU5T-14474-EB
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	GD121 (BK-YE)	8	GROUND - FENDER FRONT LEFT # 2ND POINT	1C1T-14474-AA
31	*	*	Not Used	N/A
32	BDB04 (GN-BN)	20	CONNECTOR - DIAGNOSTIC # CAN FD BUS HIGH SPEED LOW	CU5T-14474-EB
33	BDB03 (YE-VT)	20	CONNECTOR - DIAGNOSTIC # CAN FD BUS HIGH SPEED HIGH	CU5T-14474-EB
34	CCB60 (WH-BN)	22	ECU - BRAKE AVP # EMULATED BRAKE ON/OFF (BOO) NORMAL CLOSED	CU5T-14474-EB
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	*	*	Not Used	N/A
38	*	*	Not Used	N/A
39	*	*	Not Used	N/A
40	CCB61 (GY-OG)	20	ECU - BRAKE AVP # EMULATED BRAKE ON/OFF (BOO) NORMAL OPEN	CU5T-14474-EB
41	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER	CU5T-14474-EB
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	*	*	Not Used	N/A
45	*	*	Not Used	N/A
46	SBB29 (GY-RD)	8	FUSE - 29 OR CIRCUIT BREAKER	1C1T-14474-AA
