Intermediate Shaft: Removal

  1. Remove the front halfshaft RH. Refer to: Front Halfshaft RH .

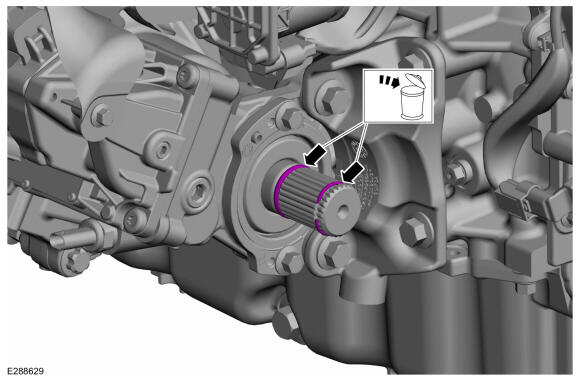

  2. Remove and discard the circlip and O-ring seal from the intermediate shaft.
    GFD826514Courtesy of FORD MOTOR COMPANY

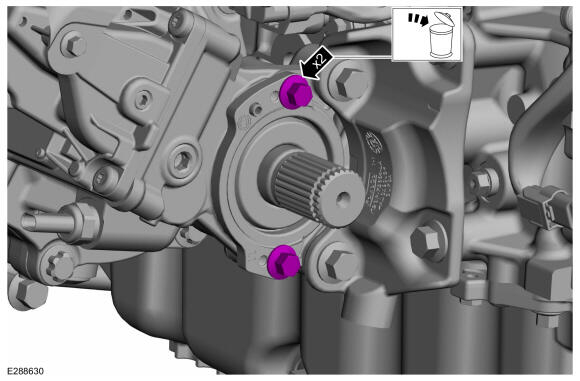

  3. Remove and discard the intermediate shaft mounting bolts.
    GFD826518Courtesy of FORD MOTOR COMPANY

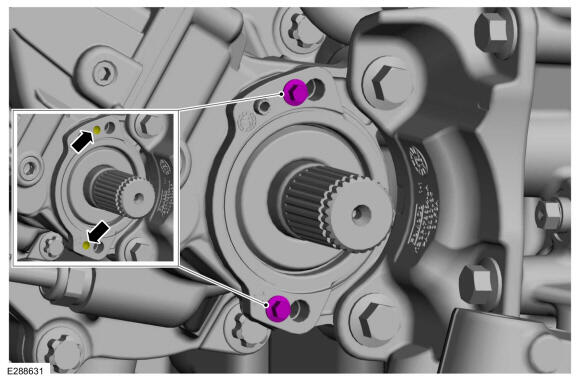

  4. Install two 6mm x 1.0 x 20mm bolts into the flange threads.
    GFD826519Courtesy of FORD MOTOR COMPANY

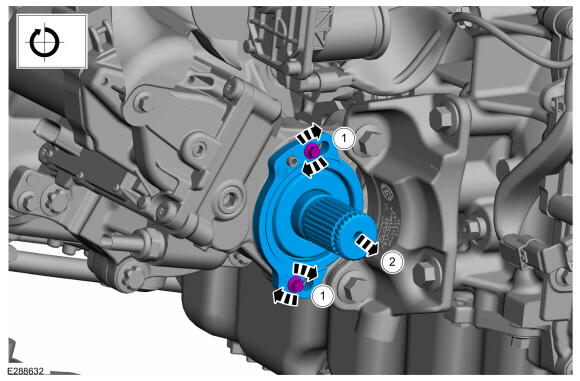

  5. Turn bolts evenly one turn at a time and remove the intermediate shaft.
    GFD826520Courtesy of FORD MOTOR COMPANY

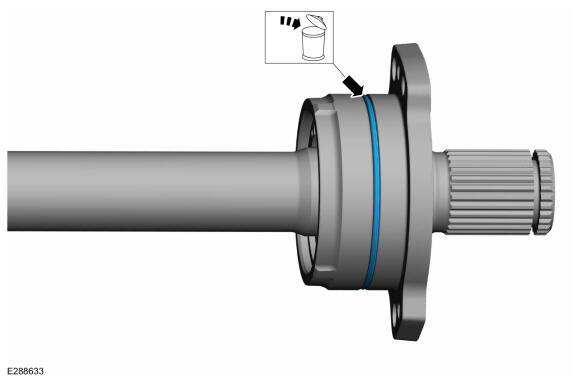

  6. Remove and discard the intermediate shaft bearing O-ring seal.
GFD826521Courtesy of FORD MOTOR COMPANY
