Intermediate Shaft: Installation

NOTE: Component(s) must be lubricated with clean automatic transmission fluid.

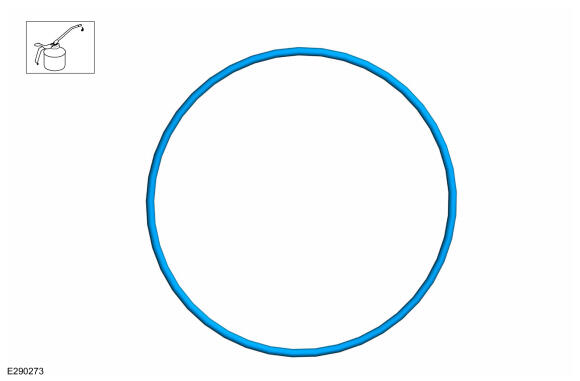

Lubricate the new intermediate shaft bearing O-ring seal before installation with the specified material.
- Material
  : Automatic Transmission Fluid (WSS-M2C949-A,)
Courtesy of FORD MOTOR COMPANY

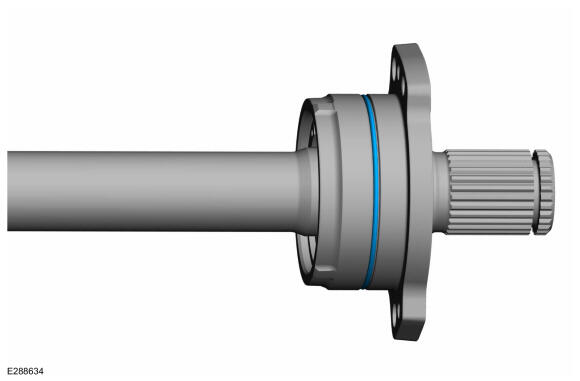

Install the new intermediate shaft bearing O-ring seal.

Courtesy of FORD MOTOR COMPANY

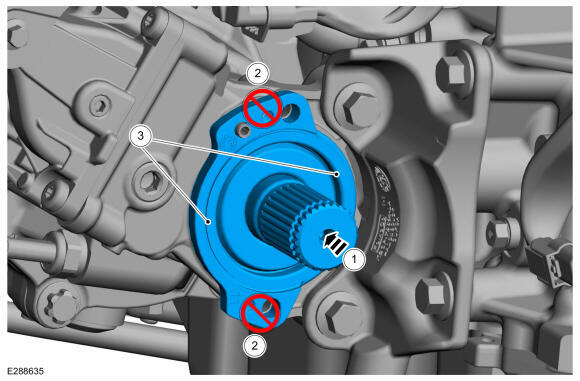

1. Install the intermediate shaft in the PTU until the shaft flange is flush with the PTU housing.
2. NOTE: Don't tap on the flange ears.
3. NOTE: If necessary, tap on the bearing housing around the seal flange.
Courtesy of FORD MOTOR COMPANY

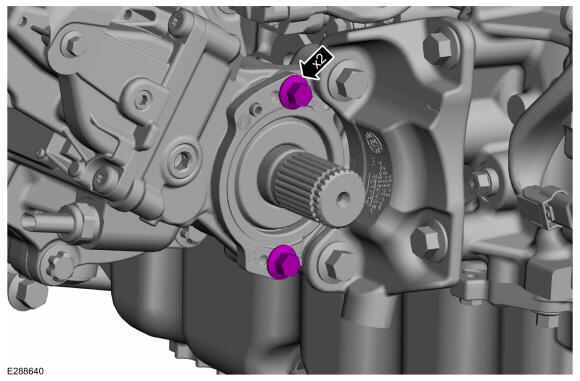

NOTE: Make sure that new bolts are installed.

Install new bolts.

Torque

: 25 Nm

Courtesy of FORD MOTOR COMPANY

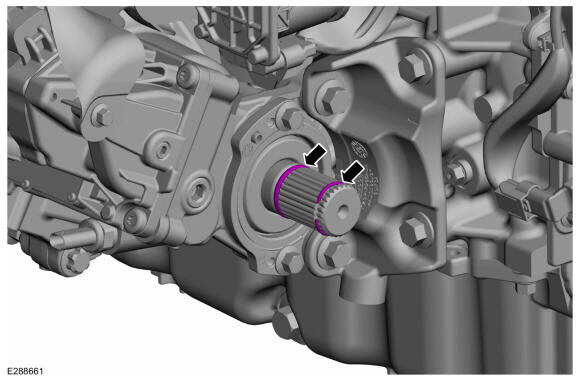

Install the new circlip and O- ring seal on the intermediate shaft.

Courtesy of FORD MOTOR COMPANY
Install the front halfshaft RH. Refer to: Front Halfshaft RH .
Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
