Front Halfshaft LH: Installation

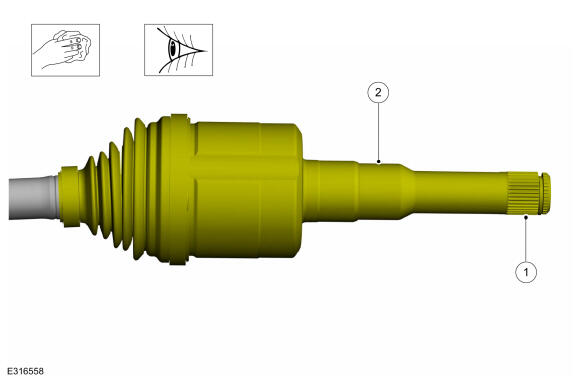

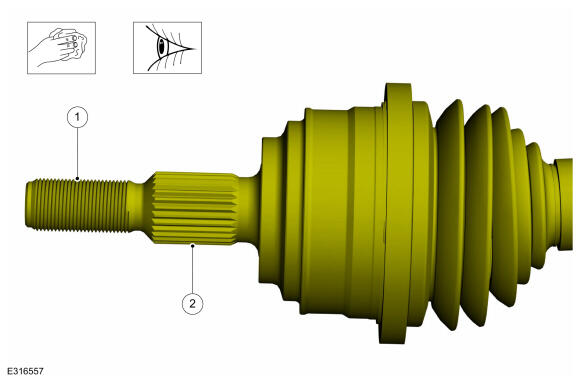

  1. Clean and inspect the outer CV housing.
    GFD826486Courtesy of FORD MOTOR COMPANY
  2. Clean and inspect the inner CV housing.
    GFD826487Courtesy of FORD MOTOR COMPANY
  3. NOTE: Make sure new component is installed.

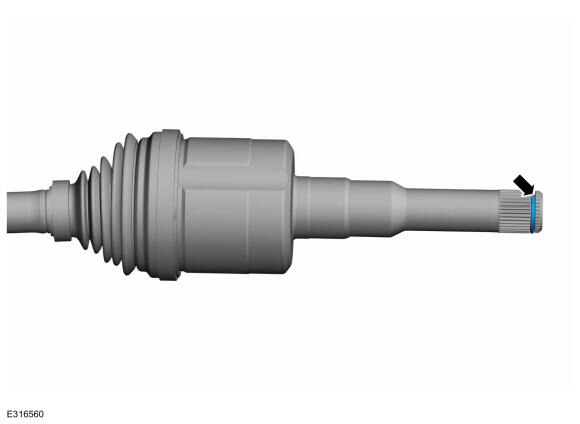

    Install the new inner halfshaft retaining circlip.

    GFD826488Courtesy of FORD MOTOR COMPANY
  4. Replace the halfshaft seal. Refer to: Halfshaft Seal LH . Refer to: Halfshaft Seal LH (307-01B Automatic Transmission - Automatic Transmission - HF45, Removal and Installation)

    Refer to: HALFSHAFT SEAL LH .

  5. NOTE: Insert shaft until circlip is fully seated. When checking if circlip is seated do not pull on CV joints or damage can result.
    NOTE: Pull on the inner CV joint to ensure the halfshaft circlip is seated properly.

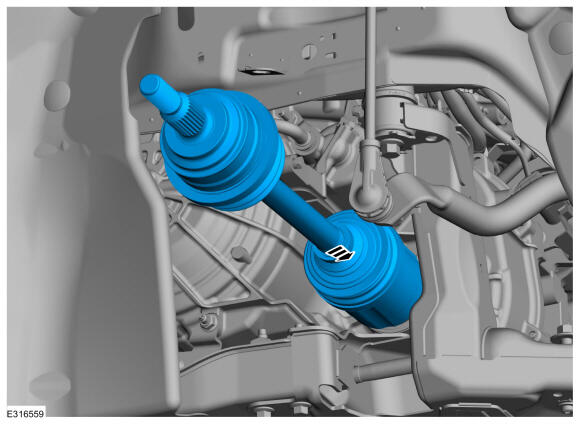

    Insert the halfshaft until the halfshaft retaining clip is fully seated.

    GFD826489Courtesy of FORD MOTOR COMPANY

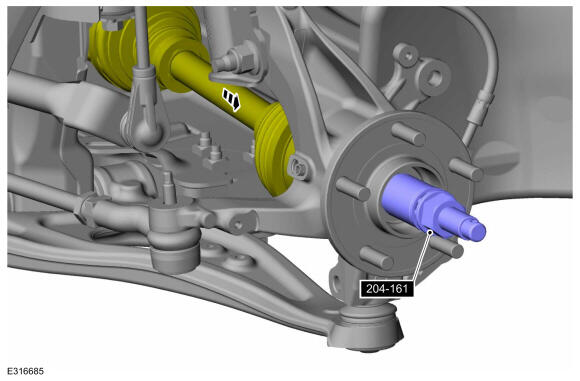

  6. Pull the halfshaft into the front wheel bearing and wheel hub.Use Special Service Tool: 204-161 (T97P-1175-A) Installer, Halfshaft.
    GFD826490Courtesy of FORD MOTOR COMPANY

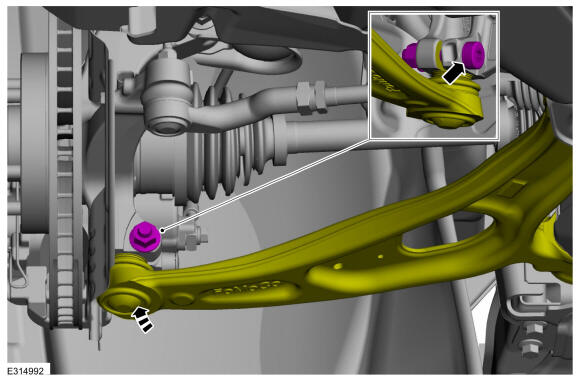

  7. NOTE: Do not use power tools to remove or install the lower arm outboard nut. Damage to the ball joint or ball joint seal may occur.
    NOTE: Use the TORX PLUS® holding feature to prevent the ball stud from turning while removing or installing the lower arm outboard nut. Torx® and TORX PLUS® is a reg. tm of Acument Intellectual Properties, LLC.

    Position the ball joint into the wheel knuckle and install the new ball joint pinch bolt and nut.

    Torque

    : 110 Nm

    GFD826289Courtesy of FORD MOTOR COMPANY

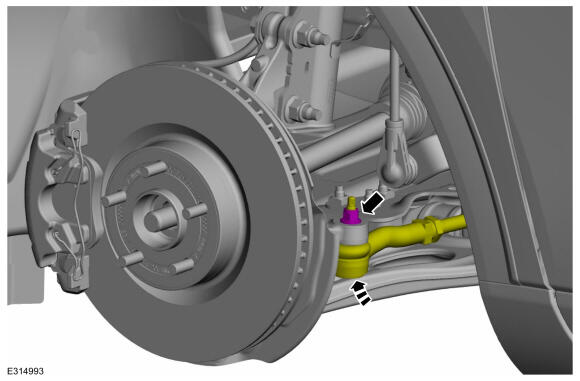

  8. NOTE: Use care when installing the tie rod separator or damage to the tie rod end boot may occur.
    NOTE: Use the hex-holding feature to prevent turning of the stud while installing the tie rod end nut.

    Attach the tie rod end to the wheel knuckle and install the new tie rod end nut.

    Torque

    : 48 Nm

    GFD826308Courtesy of FORD MOTOR COMPANY

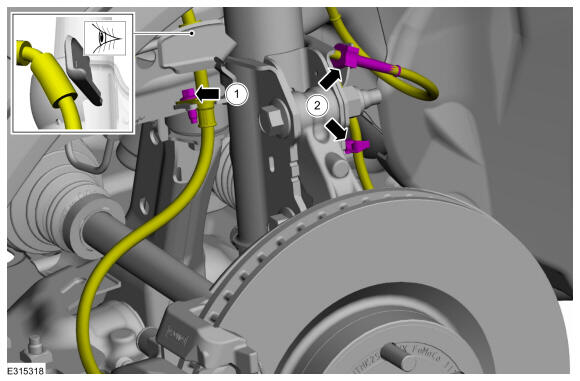

    1. Position the brake hose and install the bolt.

      Torque

      : 11 Nm

    2. Position the wheel speed sensor wiring harness and clip the 2 wire retainers.
    GFD826267Courtesy of FORD MOTOR COMPANY

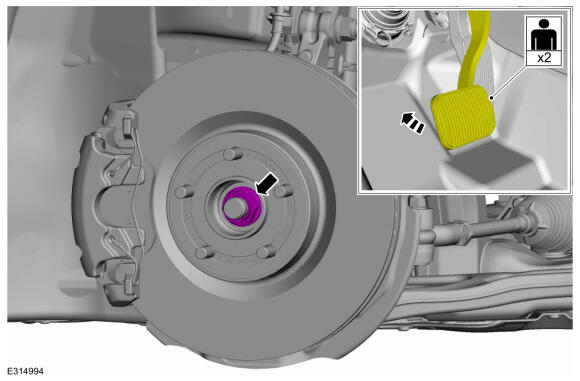

  9. NOTE: Do not tighten the front wheel hub nut with the vehicle on the ground. The nut must be tightened to specification before the vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.
    NOTE: Install and tighten the new wheel hub nut to specification in a continuous rotation. Always install a new wheel hub nut after loosening or when not tightened to specification in a continuous rotation or damage to the components may occur.
    NOTE: Apply the brake to keep the halfshaft from rotating.

    While an assistant applies the brake, install the new wheel hub nut.

    Torque

    : Stage 1: 100 Nm Stage 2: 60deg.

    GFD826309Courtesy of FORD MOTOR COMPANY
  10. Check the transmission fluid level. Refer to: Transmission Fluid Level Check

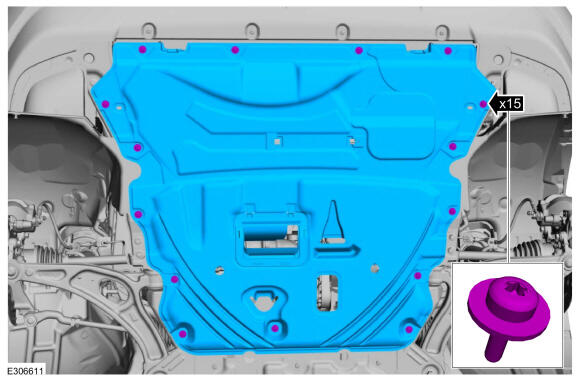

  11. Install the underbody shield and tighten the retainers.

    Torque

    : 1.5 Nm

    GFD826242Courtesy of FORD MOTOR COMPANY
  12. Install the wheel and tire. Refer to: Wheel and Tire .
