Rear Gate Trunk Module (RGTM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

The PMI process must begin with the current RGTM installed. If the current RGTM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the RGTM following the on-screen instructions.
Remove the liftgate trim panel. Refer to: Liftgate Trim Panel

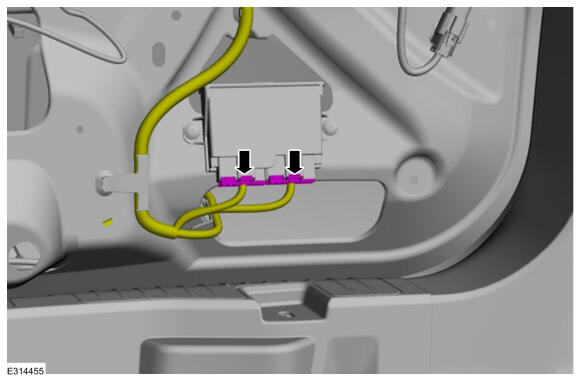

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

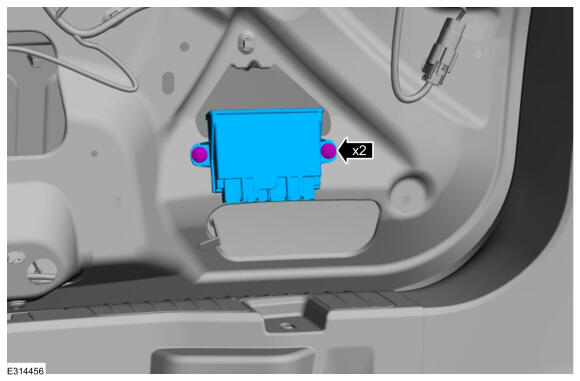

Remove the fasteners and the RGTM.

Courtesy of FORD MOTOR COMPANY
