Rear Door Alignment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Inspection

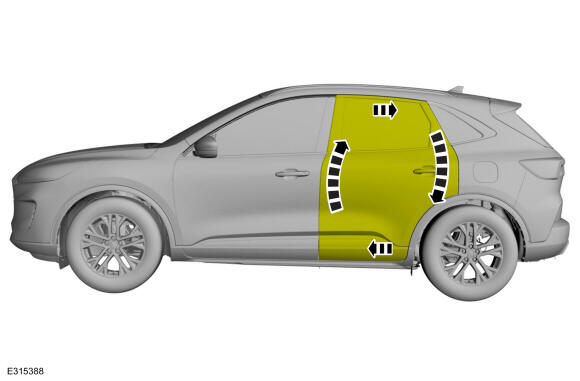

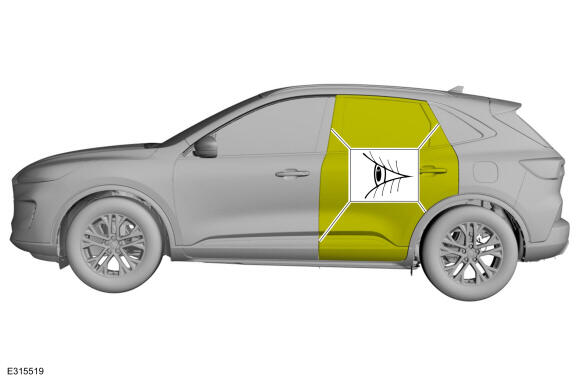

1. Inspect the body-to-rear door dimensions.

   Courtesy of FORD MOTOR COMPANY

   Adjustment

   All alignments

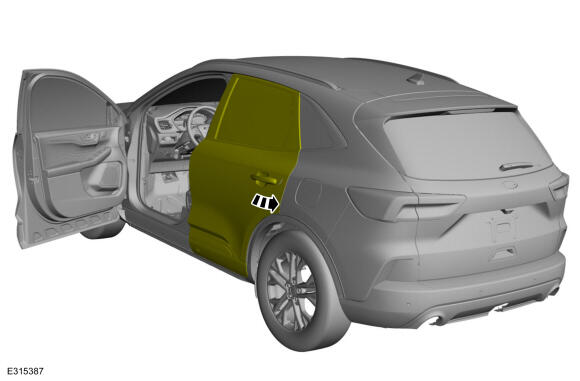

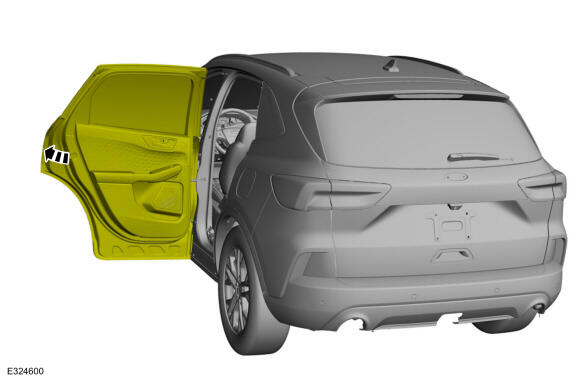

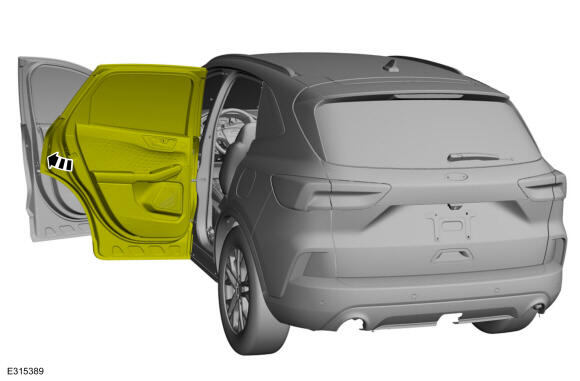

2. Open the rear door.

   Courtesy of FORD MOTOR COMPANY

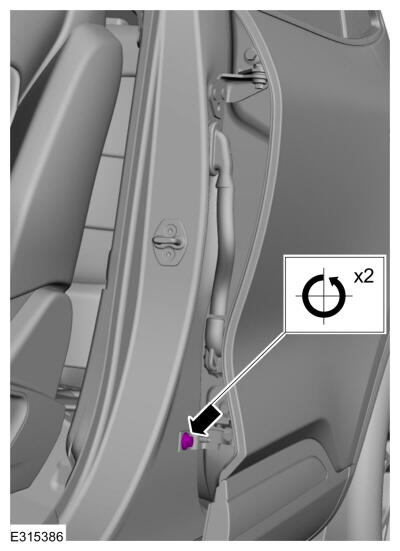

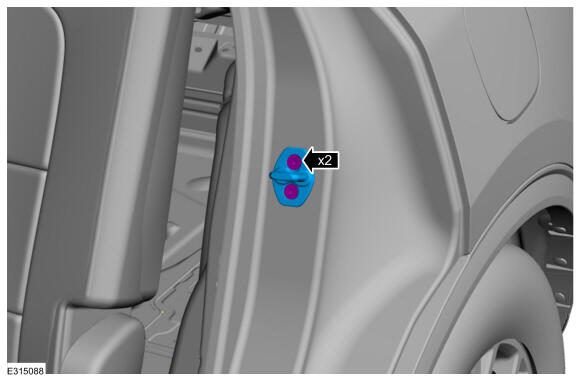

3. Remove the fasteners and striker assembly.

   Courtesy of FORD MOTOR COMPANY

   Rear door in and out, up and down alignment

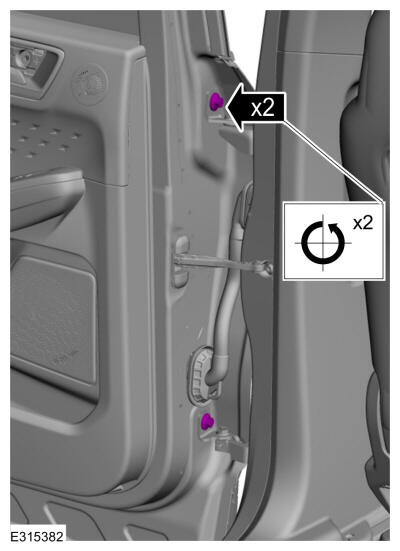

4. Loosen the fasteners to permit movement of the door. Loosen: : 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

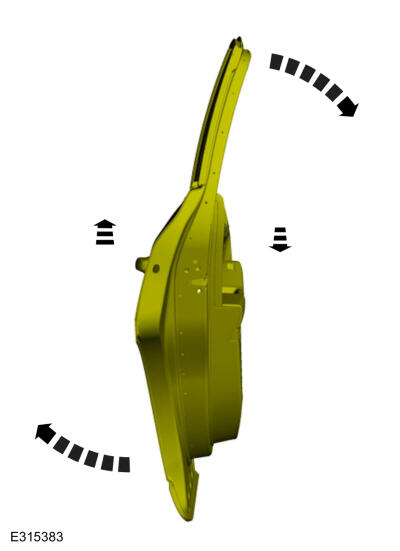

5. Adjust the door as required.

   Courtesy of FORD MOTOR COMPANY

6. Tighten the fasteners.

   Torque : 48 Nm

   Courtesy of FORD MOTOR COMPANY

   Rear door fore, aft and tilt alignment

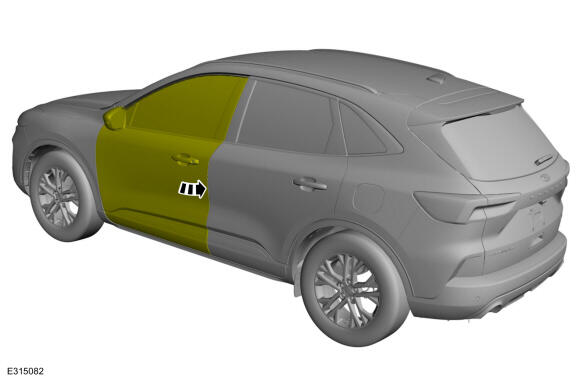

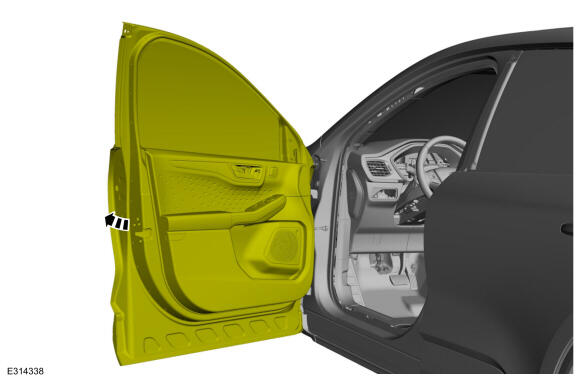

7. Open the front door.

   Courtesy of FORD MOTOR COMPANY

8. Remove the B-pillar trim panel Refer to: B-Pillar Trim Panel

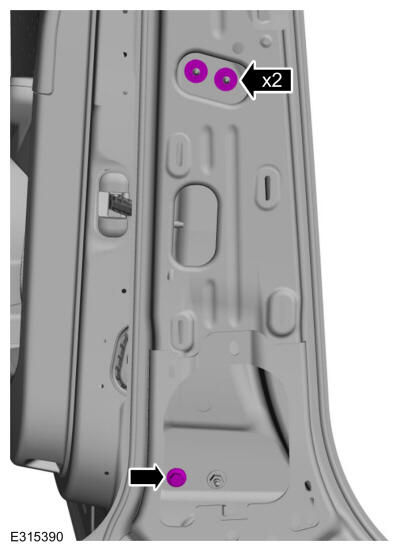

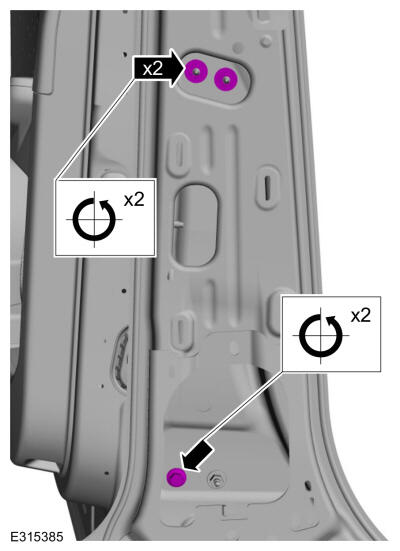

9. Loosen the fasteners to permit movement of the door. Loosen: : 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

10. Carefully close the rear door.

    Courtesy of FORD MOTOR COMPANY

11. Loosen the fasteners to permit movement of the door. Loosen: : 2 turn(s)

    Courtesy of FORD MOTOR COMPANY

12. Carefully close the door.

    Courtesy of FORD MOTOR COMPANY

13. Adjust the door as required.

    Courtesy of FORD MOTOR COMPANY

14. Carefully open the front door.

    Courtesy of FORD MOTOR COMPANY

15. Carefully open the rear door.

    Courtesy of FORD MOTOR COMPANY

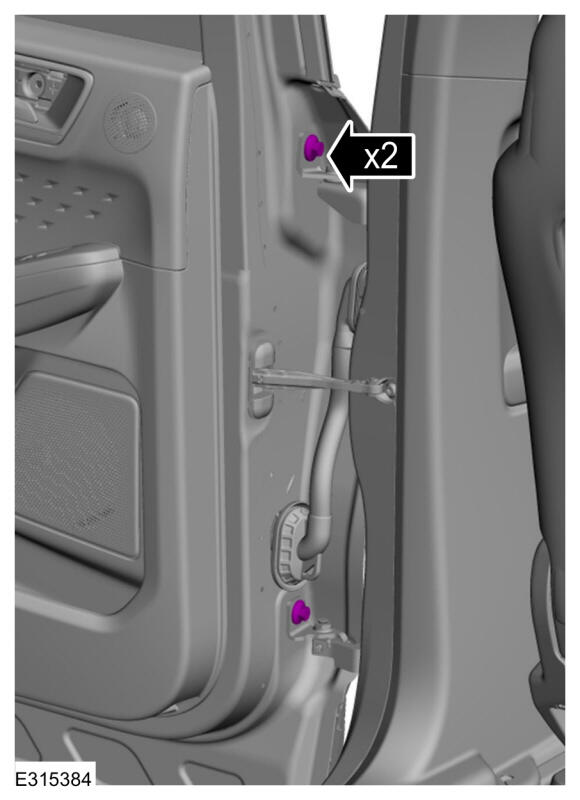

16. Tighten the fasteners.

    Torque : 30 Nm

    Courtesy of FORD MOTOR COMPANY

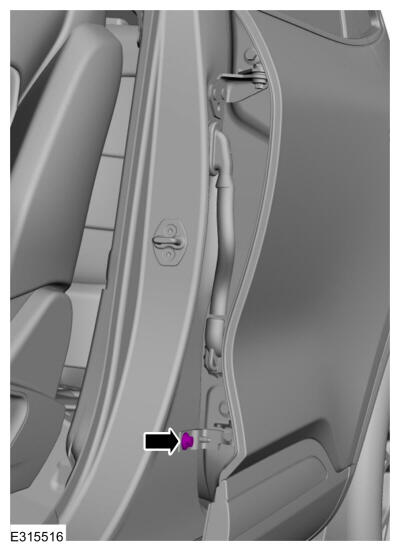

17. Tighten the fastener.

    Torque : 30 Nm

    Courtesy of FORD MOTOR COMPANY

    All alignments

18. Install the striker assembly.

    Torque : 25 Nm

    Courtesy of FORD MOTOR COMPANY

19. Inspect the body-to-rear door dimensions.

    Courtesy of FORD MOTOR COMPANY

20. Install the removed components.
