Connector End View C310B - Restraints Control Module (RCM)

Connector: Description Color Harness Base Part # Service Pigtail
C310B RESTRAINTS CONTROL MODULE (RCM) 14A005 part# N/A Not Available

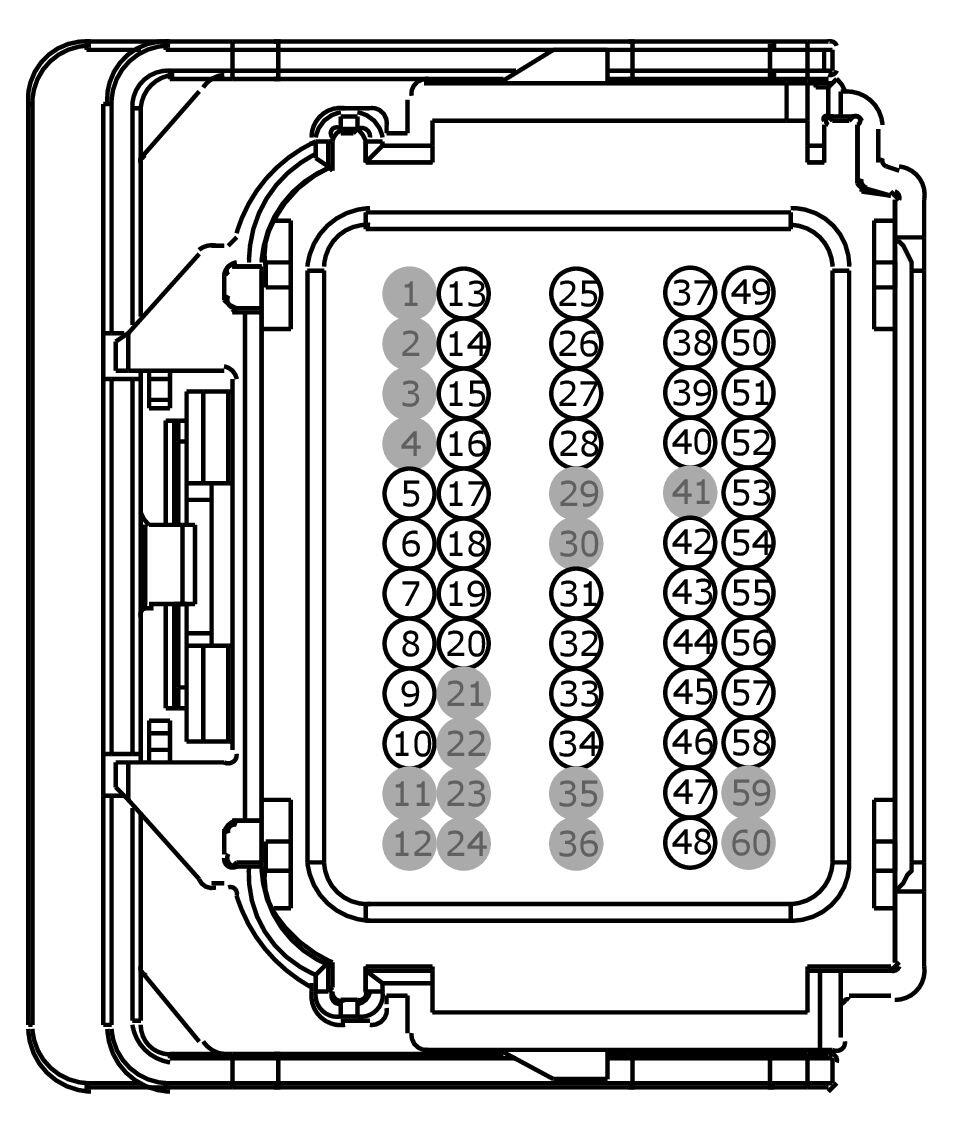

GFDWR230657Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
8U5T-14474-BB DU2Z-14474-CAFC 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 * * Not Used N/A
3 * * Not Used N/A
4 * * Not Used N/A
5 CR123 (GN-VT) 20 ECU - SEAT BELT PRETENSIONER ROW 2 DRIVER SIDE + N/A
6 RR123 (GY) 20 ECU - SEAT BELT PRETENSIONER ROW 2 DRIVER SIDE - N/A
7 RR125 (GN) 20 ECU - SEAT BELT PRETENSIONER ROW 2 PASSENGER SIDE OUTBOARD - N/A
8 CR125 (BU-BN) 20 ECU - SEAT BELT PRETENSIONER ROW 2 PASSENGER SIDE OUTBOARD + N/A
9 CR179 (BU) 20 ECU - RCM # SEAT BELT PRETENSIONER RETRACTOR ROW 1 PASSENGER OUTBOARD + N/A
10 RR179 (GY-BU) 20 ECU - RCM # SEAT BELT PRETENSIONER RETRACTOR ROW 1 PASSENGER OUTBOARD - N/A
11 * * Not Used N/A
12 * * Not Used N/A
13 CR107 (BU-WH) 20 ECU - RCM # SIDE AIR BAG ROW 2 DRIVER + 8U5T-14474-BB
14 RR107 (GN-WH) 20 ECU - RCM # SIDE AIR BAG ROW 2 DRIVER - 8U5T-14474-BB
15 RR108 (VT-OG) 20 ECU - RCM # SIDE AIR BAG ROW 2 PASSENGER OUTBOARD - 8U5T-14474-BB
16 CR108 (GY-BN) 20 ECU - RCM # SIDE AIR BAG ROW 2 PASSENGER OUTBOARD + 8U5T-14474-BB
17 CR111 (BN-WH) 18 ECU - RCM # SIDE CURTAIN AIRBAG ROW 1 PASSENGER OUTBOARD + N/A
18 RR111 (YE-VT) 18 ECU - RCM # SIDE CURTAIN AIRBAG ROW 1 PASSENGER OUTBOARD - N/A
19 RR188 (WH-VT) 20 ECU - RCM # SEAT BELT PRETENSIONER RETRACTOR ROW 1 DRIVER - N/A
20 CR188 (VT-GN) 20 ECU - RCM # SEAT BELT PRETENSIONER RETRACTOR ROW 1 DRIVER + N/A
21 * * Not Used N/A
22 * * Not Used N/A
23 * * Not Used N/A
24 * * Not Used N/A
25 CR109 (BN-BU) 18 ECU - RCM # SIDE CURTAIN AIRBAG ROW 1 DRIVER + N/A
26 RR109 (BU-GN) 18 ECU - RCM # SIDE CURTAIN AIRBAG ROW 1 DRIVER - N/A
27 VR215 (YE-VT) 20 SENSOR - SEAT TRACK POSITION DRIVER 8U5T-14474-BB
28 VR216 (GN-OG) 20 SENSOR - SEAT TRACK POSITION FRONT PASSENGER 8U5T-14474-BB
29 * * Not Used N/A
30 * * Not Used N/A
31 VR237 (BN-WH) 22 SENSOR - SIDE IMPACT PRESSURE ROW 1 PASSENGER + 8U5T-14474-BB
32 RR175 (YE-OG) 22 ECU - RCM # SIDE IMPACT PRESSURE SENSOR FRONT PASSENGER - 8U5T-14474-BB
33 RR174 (WH-OG) 22 ECU - RCM # SIDE IMPACT PRESSURE SENSOR FRONT DRIVER - 8U5T-14474-BB
34 VR236 (BU-OG) 22 SENSOR - SIDE IMPACT PRESSURE ROW 1 DRIVER + 8U5T-14474-BB
35 * * Not Used N/A
36 * * Not Used N/A
37 CR106 (VT-GY) 20 ECU - RCM # SIDE AIR BAG ROW 1 PASSENGER + 8U5T-14474-BB
38 RR106 (YE-OG) 20 ECU - RCM # SIDE AIR BAG ROW 1 PASSENGER - 8U5T-14474-BB
39 RR105 (GY-YE) 20 ECU - RCM # SIDE AIR BAG ROW 1 DRIVER - 8U5T-14474-BB
40 CR105 (GN-BU) 20 ECU - RCM # SIDE AIR BAG ROW 1 DRIVER + 8U5T-14474-BB
41 * * Not Used N/A
42 CR167 (YE-VT) 22 ECU - RCM # EVENT NOTIFICATION SIGNAL 1 8U5T-14474-BB
43 VR220 (VT-OG) 20 SENSOR - SIDE IMPACT ACCELERATION ROW 2 PASSENGER + 8U5T-14474-BB
44 RR134 (BN-BU) 20 ECU - RCM # SIDE IMPACT ACCELERATION SENSOR ROW 2 PASSENGER - 8U5T-14474-BB
45 RR133 (GY-BN) 20 ECU - RCM # SIDE IMPACT ACCELERATION SENSOR ROW 2 DRIVER - 8U5T-14474-BB
46 VR219 (GN-WH) 20 SENSOR - SIDE IMPACT ACCELERATION ROW 2 DRIVER + 8U5T-14474-BB
47 VDB26 (GY-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW 8U5T-14474-BB
48 VDB25 (GN-OG) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH 8U5T-14474-BB
49 CR1B5 (WH-OG) 20 ECU - RCM # SEAT BELT PRETENSIONER ANCHOR ROW 1 PASSENGER OUTBOARD + N/A
50 RR1B5 (BN) 20 ECU - RCM # SEAT BELT PRETENSIONER ANCHOR ROW 1 PASSENGER OUTBOARD - N/A
51 RR1B4 (BN-GN) 20 ECU - RCM # SEAT BELT PRETENSIONER ANCHOR ROW 1 DRIVER - N/A
52 CR1B4 (BU-OG) 20 ECU - RCM # SEAT BELT PRETENSIONER ANCHOR ROW 1 DRIVER + N/A
53 RR172 (GN-VT) 22 ECU - RCM # COMMON RETURN FOR RESTRAINTS SENSORS / SWITCHES BODY HARNESS 8U5T-14474-BB
54 CR201 (GN-BU) 20 SENSOR - SEAT BELT BUCKLE SWITCH ROW 1 DRIVER 8U5T-14474-BB
55 CR203 (GY-VT) 20 SENSOR - SEAT BELT BUCKLE SWITCH ROW 1 PASSENGER OUTBOARD 8U5T-14474-BB
56 CR204 (BU-GN) 20 SENSOR - SEAT BELT BUCKLE SWITCH ROW 2 DRIVER 8U5T-14474-BB
57 CR205 (WH-OG) 20 SENSOR - SEAT BELT BUCKLE SWITCH ROW 2 MIDDLE 8U5T-14474-BB
58 CR206 (BN) 20 SENSOR - SEAT BELT BUCKLE SWITCH ROW 2 PASSENGER OUTBOARD 8U5T-14474-BB
59 * * Not Used N/A
60 * * Not Used N/A

Available Pigtail Kits
