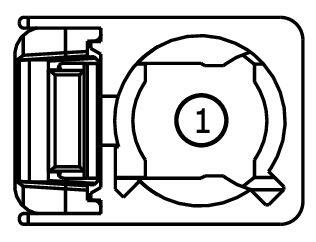

Connector End View C9128 - Image Processing Module A (IPMA) Camera
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C9128 | IMAGE PROCESSING MODULE A (IPMA) CAMERA | BN | 14335 | part# N/A | Not Available |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VMF20 (BK) | 20 | LANE DEPARTURE WARNING (LDW) CAMERA | N/A | ||||
Available Pigtail Kits
