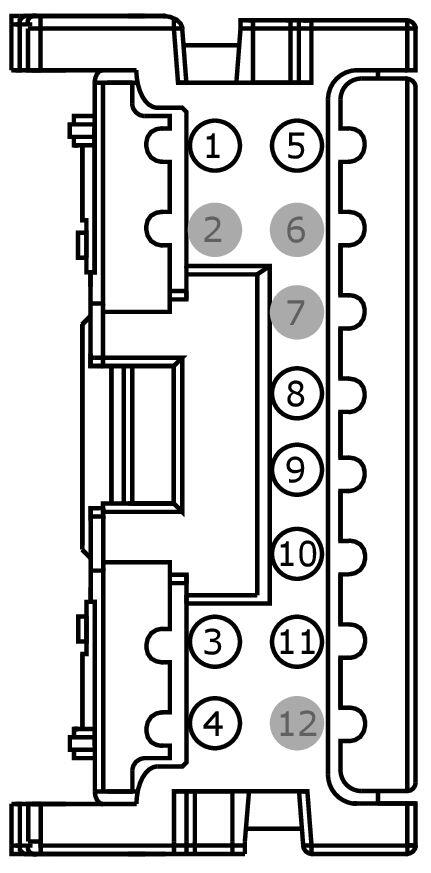

Connector End View C9039 - Image Processing Module A (IPMA)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9039	IMAGE PROCESSING MODULE A (IPMA)	BK	14A411	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
GU5T-14474-KA	LU2Z-14474-AA	0.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RRB08 (BU-WH)	22	CTRL MOD. - LANE DEPARTURE WARNING # HEATER FRONT WINDOW -	GU5T-14474-KA
2	*	*	Not Used	N/A
3	VMF04 (BN-BU)	22	CTRL MOD. - FORWARD SENSING # FORWARD LOOKING RADAR CAN BUS HIGH	GU5T-14474-KA
4	CBP09 (VT-GY)	22	FUSE - 9	GU5T-14474-KA
5	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE	GU5T-14474-KA
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	CRB08 (BU-GY)	22	CTRL MOD. - LANE DEPARTURE WARNING # HEATER FRONT WINDOW +	GU5T-14474-KA
9	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	GU5T-14474-KA
10	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	GU5T-14474-KA
11	VMF05 (GY-BU)	22	CTRL MOD. - FORWARD SENSING # FORWARD LOOKING RADAR CAN BUS LOW	GU5T-14474-KA
12	*	*	Not Used	N/A

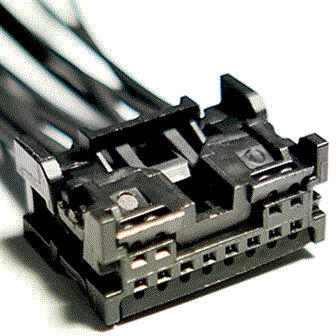

Available Pigtail Kits

Pigtail Kit Part Number

: WPT-1686

Courtesy of FORD MOTOR COMPANY

Service Part Number:

MU2Z-14S411-RA

Gauge:

22

Pin material:

Tin

Cavities:

12

Vehicle Uses:

Lamp - Dome Module - ADAS Module - Image Processing Module - Lane Departure Warning
