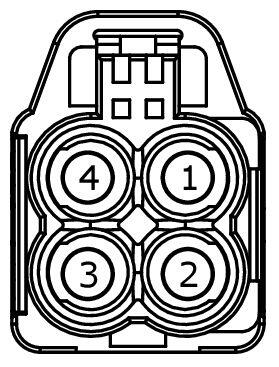

Connector End View C4242E - Image Processing Module A (IPMA)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4242E	IMAGE PROCESSING MODULE A (IPMA)	14A005			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VMP52 (ANY)	20	ECU - CAMERA PARK ASSIST # FRONT POWER + DIGITAL VIDEO IN (+)	N/A
1	RMP52 (NONE)	22	ECU - CAMERA PARK ASSIST # FRONT GROUND + SHIELD	N/A
2	VMP51 (ANY)	20	ECU - CAMERA PARK ASSIST # REAR POWER + DIGITAL VIDEO IN (+)	N/A
2	RMP51 (NONE)	22	ECU - CAMERA PARK ASSIST # REAR GROUND + SHIELD	N/A
3	VMP53 (ANY)	20	ECU - CAMERA PARK ASSIST # LEFT SIDE 360 POWER + DIGITAL VIDEO IN (+)	N/A
3	RMP53 (NONE)	22	ECU - CAMERA PARK ASSIST # LEFT SIDE 360 GROUND + SHIELD	N/A
4	VMP54 (ANY)	20	ECU - CAMERA PARK ASSIST # RIGHT SIDE 360 POWER + DIGITAL VIDEO IN (+)	N/A
4	RMP54 (NONE)	22	ECU - CAMERA PARK ASSIST # RIGHT SIDE 360 GROUND + SHIELD	N/A
