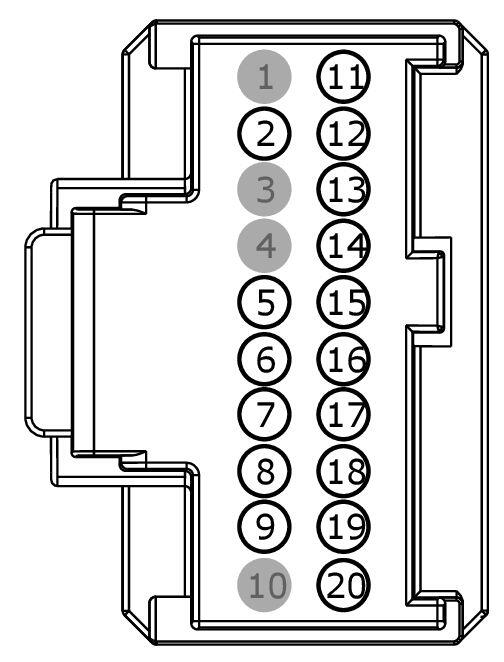

Connector End View C4242B - Image Processing Module A (IPMA)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4242B	IMAGE PROCESSING MODULE A (IPMA)	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
GU5T-14474-XB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	RMF17 (BU-BN)	22	ECU - ADAS # RADAR RIGHT REAR CORNER -	GU5T-14474-XB
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	RMF16 (VT-BN)	22	ECU - ADAS # RADAR LEFT REAR CORNER -	GU5T-14474-XB
6	RRB08 (BU-WH)	22	ECU - LANE DEPARTURE WARNING # HEATER FRONT WINDOW -	GU5T-14474-XB
7	BDB04 (GN-BN)	22	CONNECTOR - DIAGNOSTIC # CAN FD BUS HIGH SPEED LOW	GU5T-14474-XB
8	BDB03 (YE-VT)	22	CONNECTOR - DIAGNOSTIC # CAN FD BUS HIGH SPEED HIGH	GU5T-14474-XB
9	RMF14 (GN-WH)	20	ECU - ADAS # RADAR FRONT CENTER -	GU5T-14474-XB
10	*	*	Not Used	N/A
11	CMF17 (VT-GY)	22	ECU - ADAS # RADAR RIGHT REAR CORNER +	GU5T-14474-XB
12	VMF13 (YE-BU)	22	ECU - ADAS # REAR CORNER RADARS CAN FD BUS LOW	GU5T-14474-XB
13	VMF12 (GN-VT)	22	ECU - ADAS # REAR CORNER RADARS CAN FD BUS HIGH	GU5T-14474-XB
14	CMF16 (YE-GN)	22	ECU - ADAS # RADAR LEFT REAR CORNER +	GU5T-14474-XB
15	VMF13 (YE-BU)	22	ECU - ADAS # REAR CORNER RADARS CAN FD BUS LOW	GU5T-14474-XB
16	VMF12 (GN-VT)	22	ECU - ADAS # REAR CORNER RADARS CAN FD BUS HIGH	GU5T-14474-XB
17	CRB08 (BU-GY)	22	ECU - LANE DEPARTURE WARNING # HEATER FRONT WINDOW +	GU5T-14474-XB
18	CMF14 (GY)	20	ECU - ADAS # RADAR FRONT CENTER +	GU5T-14474-XB
19	VMF05 (GY-BU)	20	ECU - FORWARD SENSING # FORWARD LOOKING RADAR CAN BUS LOW	GU5T-14474-XB
20	VMF04 (BN-BU)	20	ECU - FORWARD SENSING # FORWARD LOOKING RADAR CAN BUS HIGH	GU5T-14474-XB

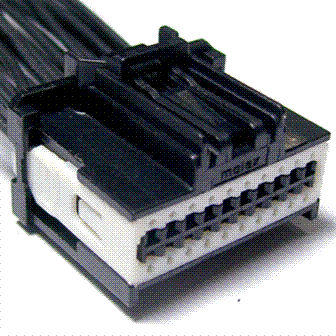

Available Pigtail Kits

Pigtail Kit Part Number

: WPT-1447

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

20

Pin material:

Tin

Cavities:

20

Vehicle Uses:

Camera - Reverse Park Aid Module - Image Processing Radio - Amplifier
