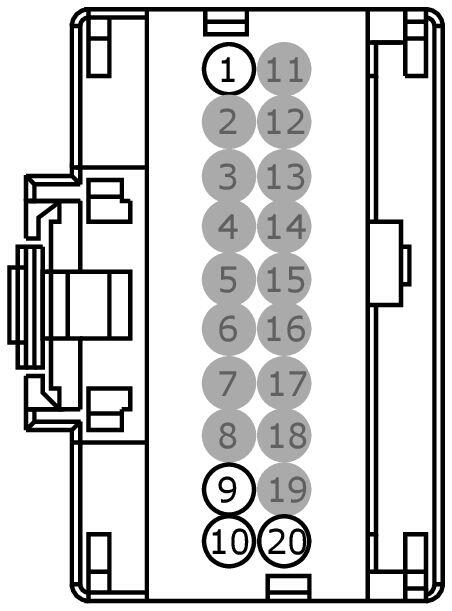

Connector End View C2494A - Telematics Control Unit (TCU) Module

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2494A	TELEMATICS CONTROL UNIT (TCU) MODULE	LT GY	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
GU5T-14474-AAB	Not Available
GU5T-14474-ZB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP11 (BU-RD)	18	FUSE OR CIRCUIT BREAKER	GU5T-14474-AAB
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	GD215 (BK-GY)	18	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	GU5T-14474-ZB
10	VDB31 (BU-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	GU5T-14474-AAB
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	VDB32 (VT-WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	GU5T-14474-AAB

Available Pigtail Kits

Pigtail Kit Part Number

: WPT-1542

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-YA

Gauge:

20

Pin material:

Silver

Cavities:

20

Vehicle Uses:

Control Head - Manual Climate Module - Driver Door Module - Electronic Automatic Temperature Control (EATC) Module - Front Interface Module - Passenger Door
