Connector End View C226B - Steering Column Control Module (SCCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C226B	STEERING COLUMN CONTROL MODULE (SCCM)	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3M5T-14474-HBA	DU2Z-14474-EA	2.80

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD214 (BK-BU)	16	GROUND - INSTRUMENT PANEL STRUCTURE	3M5T-14474-HBA
2	CBBG0 (YE-GN)	18	FUSE - 160 OR CIRCUIT BREAKER	3M5T-14474-HBA

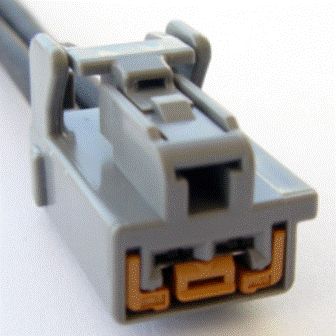

Available Pigtail Kits

Pigtail Kit Part Number

: WPT-404

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CAA

Gauge:

10

Pin material:

Tin

Cavities:

2

Vehicle Uses:

Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear Switch - Brake Pedal Position Switch - Stop Lamp
