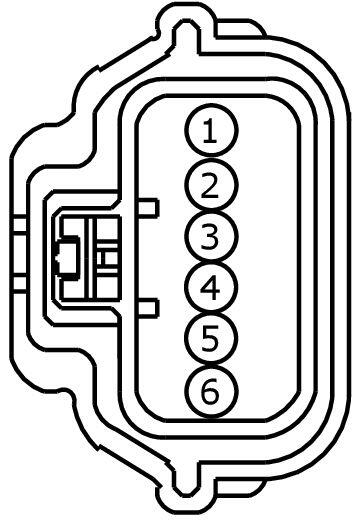

Connector End View C3159 - Occupant Classification System Module (OCSM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3159	OCCUPANT CLASSIFICATION SYSTEM MODULE (OCSM)	BK	14D230	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBP22 (GN-OG)	20	FUSE - 22	manual seat	N/A
1	CR195 (YE-BU)	20	CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER	power seat	N/A
2	VDB25 (GN-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	N/A
3	VDB26 (GY-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	N/A
4	RR172 (GN-VT)	20	CTRL MOD. - COMMON RETURN FOR RESTRAINTS SENSORS/SWITCHES	manual seat	N/A
4	RR172 (BK)	20	CTRL MOD. - COMMON RETURN FOR RESTRAINTS SENSORS/SWITCHES	power seat	N/A
5	LR142 (YE-BU)	20	CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD +	N/A
6	VR210 (BU-BN)	20	SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD	N/A

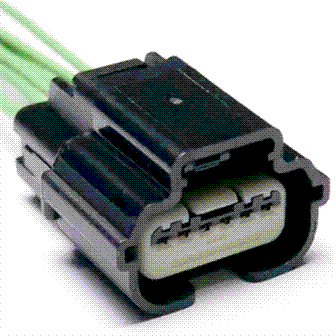

Available Pigtail Kits

Pigtail Kit Part Number

: WPT-1554

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-BC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Connector - Inline Module - Occupant Classification Sensor - Acceleration Pedal Position Sensor - Gear Neutral Sensor - Occupant Classification Sensor - Seat Track Position Sensor - Transmission Range Switch - Door Ajar / Interior Lamp
