Driver Side Register: Removal

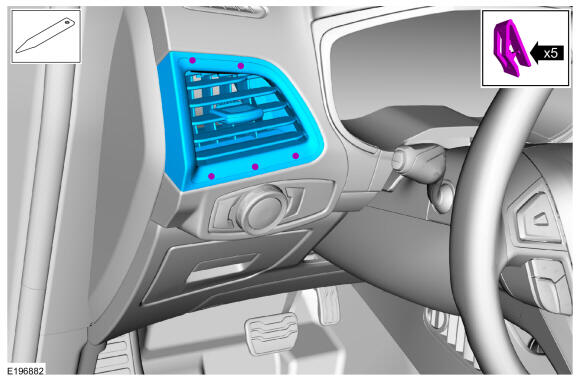

  1. Release the clips and remove the LH instrument panel finish panel. Use the General Equipment: Interior Trim Remover
    GFD814615Courtesy of FORD MOTOR COMPANY

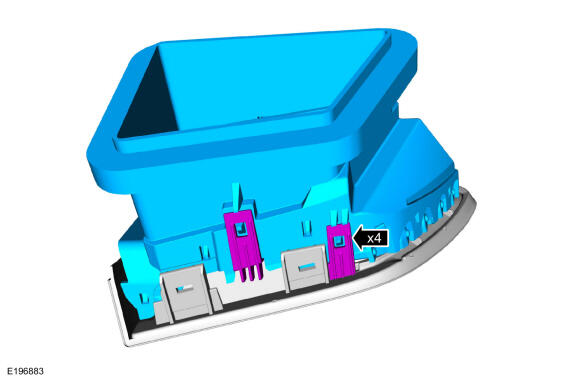

  2. Release the clips and remove the driver side register assembly.
GFD814616Courtesy of FORD MOTOR COMPANY
