Removal And Installation: Battery: Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
The cowl panel is removed for clarity.
- Disconnect the battery. Refer to: Battery Disconnect and Connect .
2.0L EcoBoost (184kW/250PS) - MI4
- Remove the air cleaner. Refer to: Air Cleaner
.
2.7L EcoBoost (238kW/324PS)
- Remove the air cleaner. Refer to: Air Cleaner
.
All vehicles

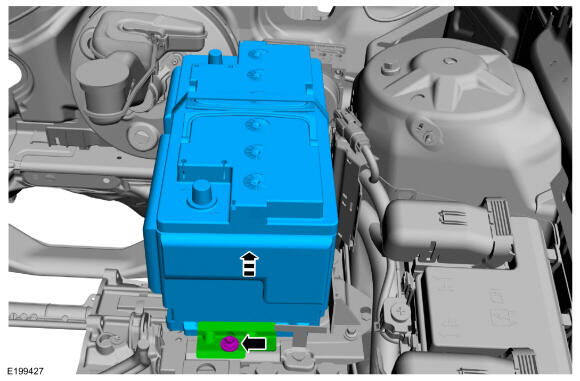

- Remove the bolt and the battery hold-down bracket. Remove the battery.
Torque
: 10.5 Nm

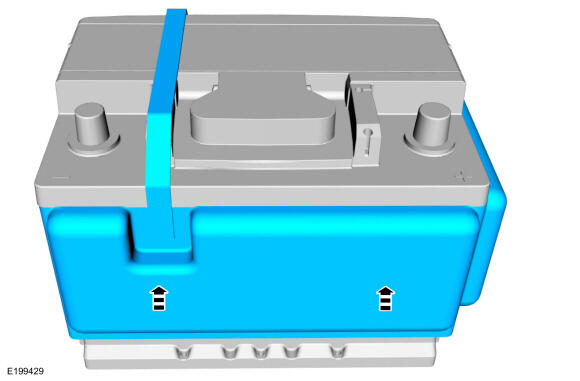

- If equipped and replacing the battery, remove the battery cover.
